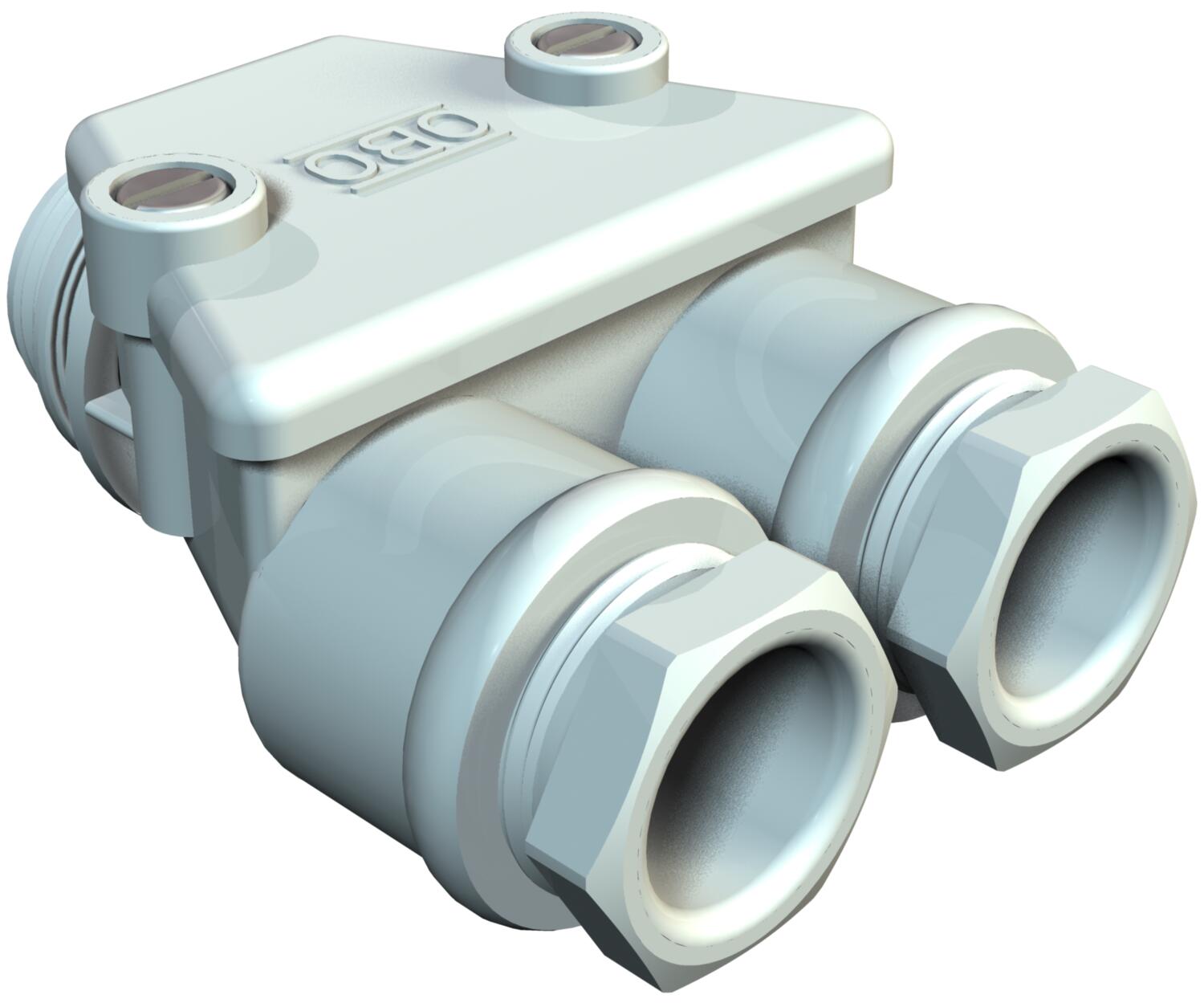

Twin cable gland, PG thread, light grey
Item no. 2024160 | EAN 4012195162919
- Product description
-
Product descriptionWith removable polystyrene lid, as well as two connection thread sealing rings made of polyethylene.
113/16: with connection thread Pg 16, 2 half glands Pg 13.5 for cable diameter 6.5–10.5 mm.
-
- Technical data
-
Technical data
Bend protection no Colour Light grey; RAL 7035 Dimension PG16 explosion-proof no Fibre-glass reinforced no Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C Flat cable gland no For Ex zone Without Halogen-free yes Impact-resistant no Material Duroplast, Aminoplast Protection rating IP54 Sealing area D, max. 10,5 mm Sealing area D, min. 6,5 mm Sealing insert, multiple no Splittable gland no Strain relief option no Thread Pg 16 Thread type PG Version for Straight With locknut no - All types
- Downloads
-
Data sheet 113 PG16 LGR / 2024160 , 0.19MB , pdfEU declaration of conformity 113 PG16 LGR / 2024160 , 0.10MB , pdf
