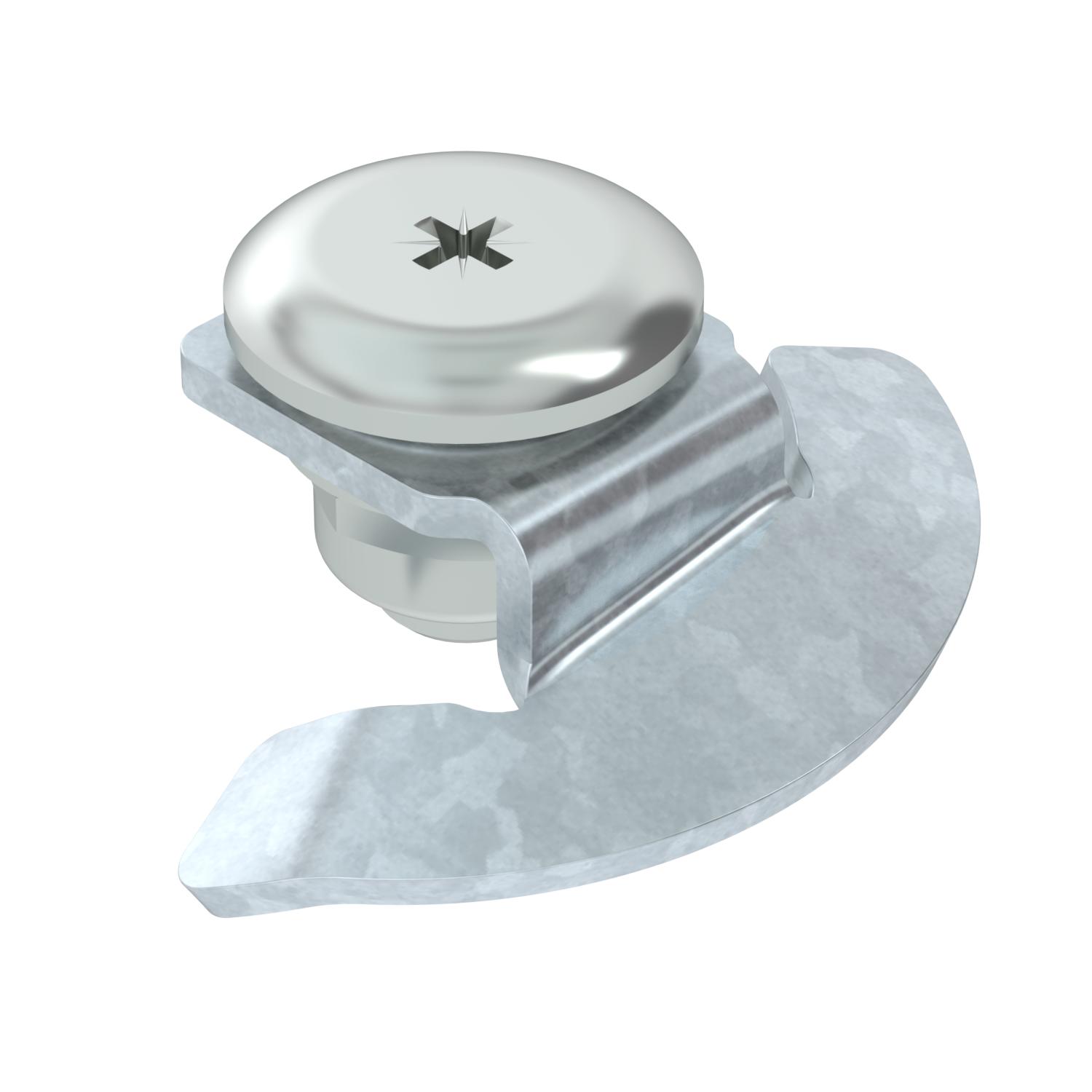

Turn buckle FT
Item no. 6065018 | EAN 4012196689675
- Product description
-
Product description
Turn buckle for additional installation or installation at a later date.
Depending on the cover version, dimension B varies as follows:
DRL / DRLU = 27 mm
DBKR = 27 mm
WDRL = 38 mm
WKLD = 58 mm
-
- Technical data
-
Technical data
Dimension Ø20 mm Material Steel Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised - All types
- Downloads
-
Data sheet DRL H S FT / 6065018 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DRL H S FT / 6065018 , 0.10MB , pdfUK Declaration of Conformity DRL H S FT / 6065018 , 0.14MB , pdfREACH Declaration of conformity DRL H S FT / 6065018 , 0.12MB , pdfRoHS Declaration of conformity DRL H S FT / 6065018 , 0.12MB , pdfSelection aid Auswahlhilfe Kabelrinnen, schraubbar , 2.17MB , pdfSelection aid Auswahlhilfe Kabelrinnen, Magic , 0.25MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions for Helix turn buckle , 0.11MB , pdf
