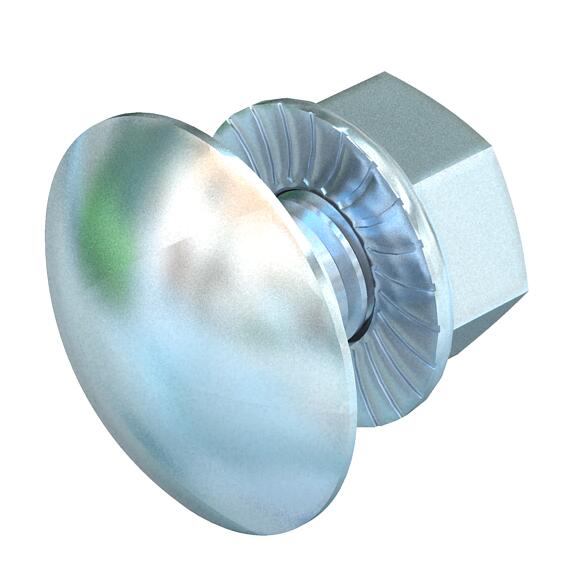

Truss-head bolt with flange nut F 12 | | Steel | Hot galvanized

morepic-1

morepic-2

Truss-head bolt with flange nut F

Item no. 6406122 | EAN 4012196199815

Item no. / Types

Length

Material	Steel

Surface	Hot galvanized

Product description

Product description

Truss-head bolt with square neck including flange nut.

Technical data

Technical data

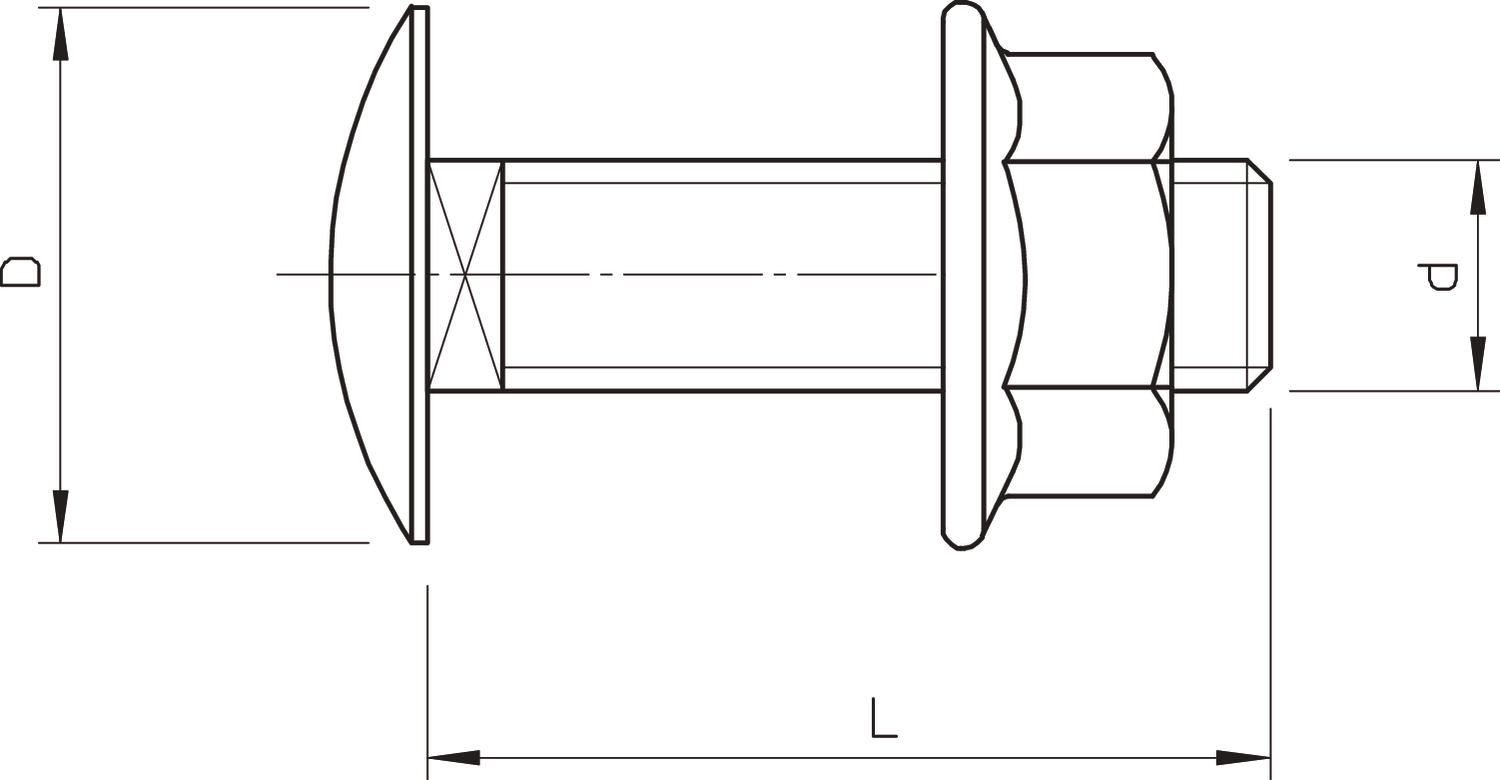

Dimension	M6x12
Dimension D	13,5 mm
Dimension d	6 mm
Dimension L	12 mm
Length	12 mm
Material	Steel

Resistance grade	5.6
Surface	Hot galvanized
Thread metric	6
WAF	10
With nut	yes

All types

All types

Types	Length	Material	Surface	Item no.	Quantity	SSU
FRSB 6x12 F	12 mm	Steel	Hot galvanized	6406122	piece	100 piece
FRSB 6x12 VZ F	12 mm	Steel	Hot galvanized	6406125	piece	10 piece
FRSB 6x16 F	16 mm	Steel	Hot galvanized	6406157	piece	100 piece
FRSB 6x20 F	20 mm	Steel	Hot galvanized	6406203	piece	100 piece
FRSB 6x30 F	30 mm	Steel	Hot galvanized	6406907	piece	100 piece
