Trunking cover, smooth
Item no. 6114210 | EAN 4012196450831
- Product description
-

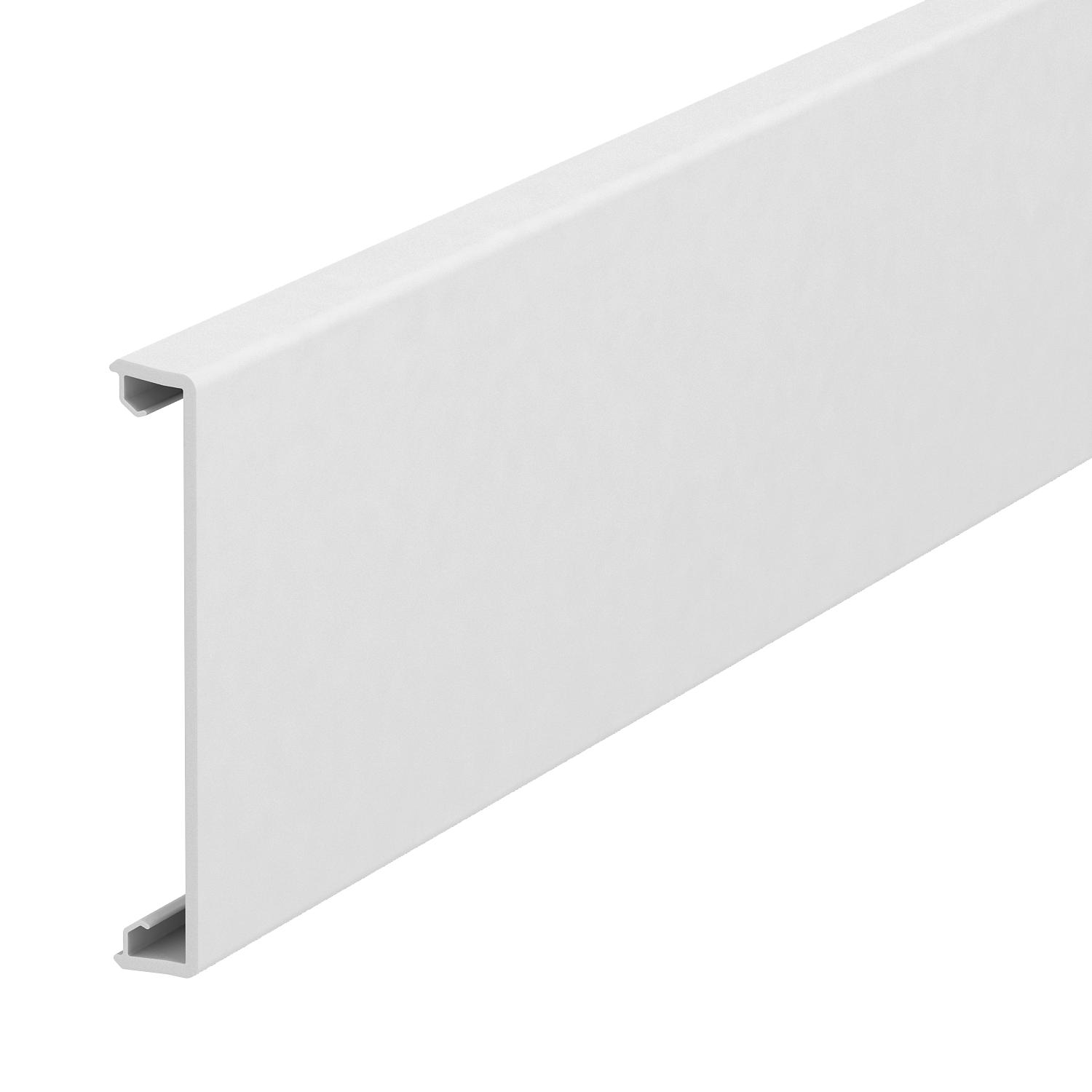

Product descriptionSmooth trunking cover made of halogen-free PC/ABS, for closing device installation trunking with 80 mm system opening.
-
- Technical data
-
Technical data

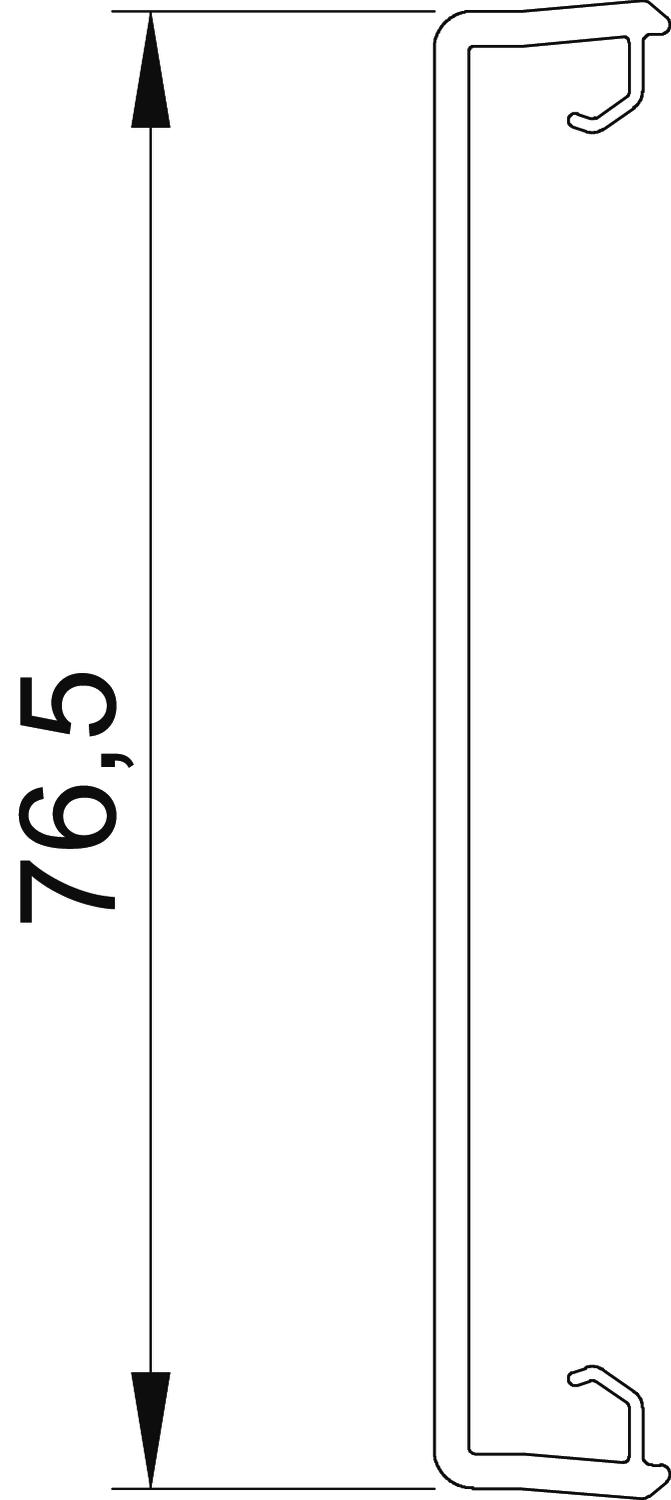

Antibacterial treatment no Colour Pure white; RAL 9010 Cover mounting type Internal Dimension 70x2000 Halogen-free yes Height 12 mm Length 2000 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK08 Protective film yes Version for Smooth Width 76,5 mm - All types
- Downloads
-
Data sheet GKH-OTGRW / 6114210 , 0.18MB , pdfEU declaration of conformity GKH-OTGRW / 6114210 , 0.13MB , pdfUK Declaration of Conformity GKH-OTGRW / 6114210 , 0.14MB , pdfREACH Declaration of conformity GKH-OTGRW / 6114210 , 0.12MB , pdfRoHS Declaration of conformity GKH-OTGRW / 6114210 , 0.12MB , pdfNo invitation to tender text is available for this product.
