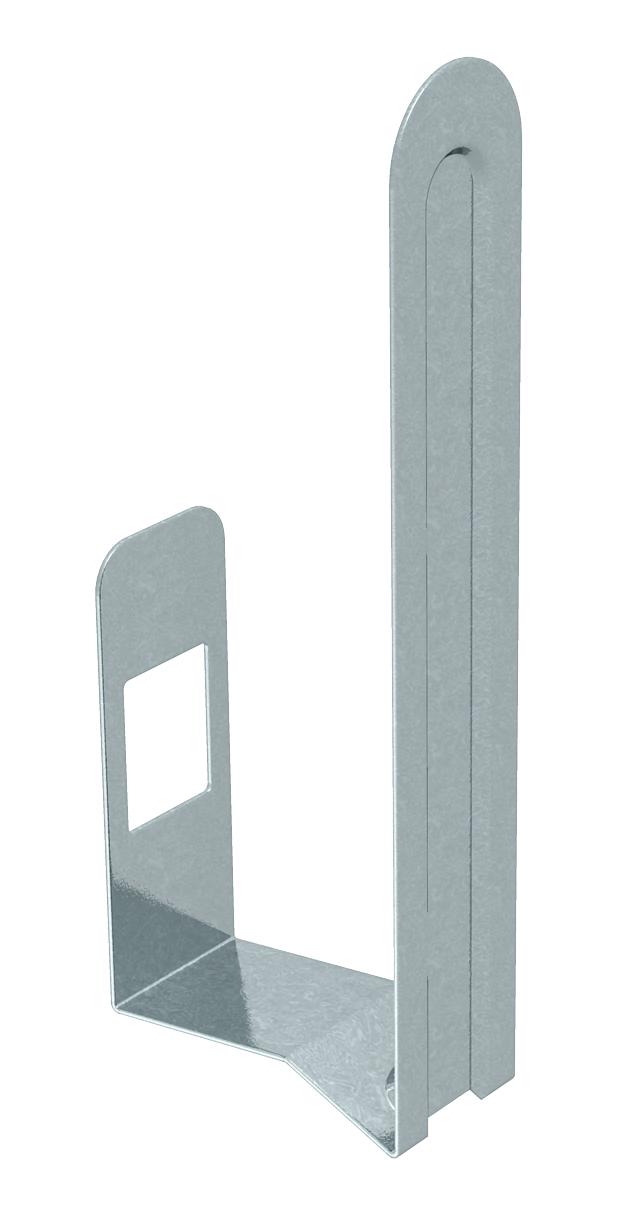

Trunking clamp, LKM, trunking width 150 and 200 mm

Item no. 6249888 | EAN 4012196119295

Product description
Product description
The duct clamp keeps the inserted cables in the trunking, thus simplifying installation on walls and ceilings. The duct clamps are plugged onto the loop perforation and locked on the side wall. Suitable for trunking width 150 mm and 200 mm.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

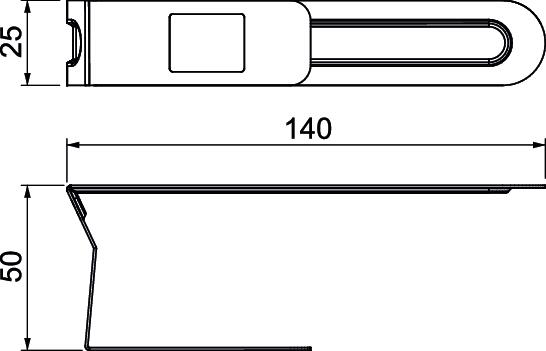

Dimension 140mm
Dimension a 25 mm
Dimension b 141 mm
Dimension c 49 mm
Fastening type Lockable
for duct dimension 60 x 150 - 60 x 200
Halogen-free yes
Height 49 mm
Length 25 mm
Maintain electrical functions no
Material Steel
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK10
Surface galvanised, blue passivated
Width 141 mm
With equipotential bonding no
All types

All types

Types Item no. Quantity SSU
LKM K140 6249888
20 piece
