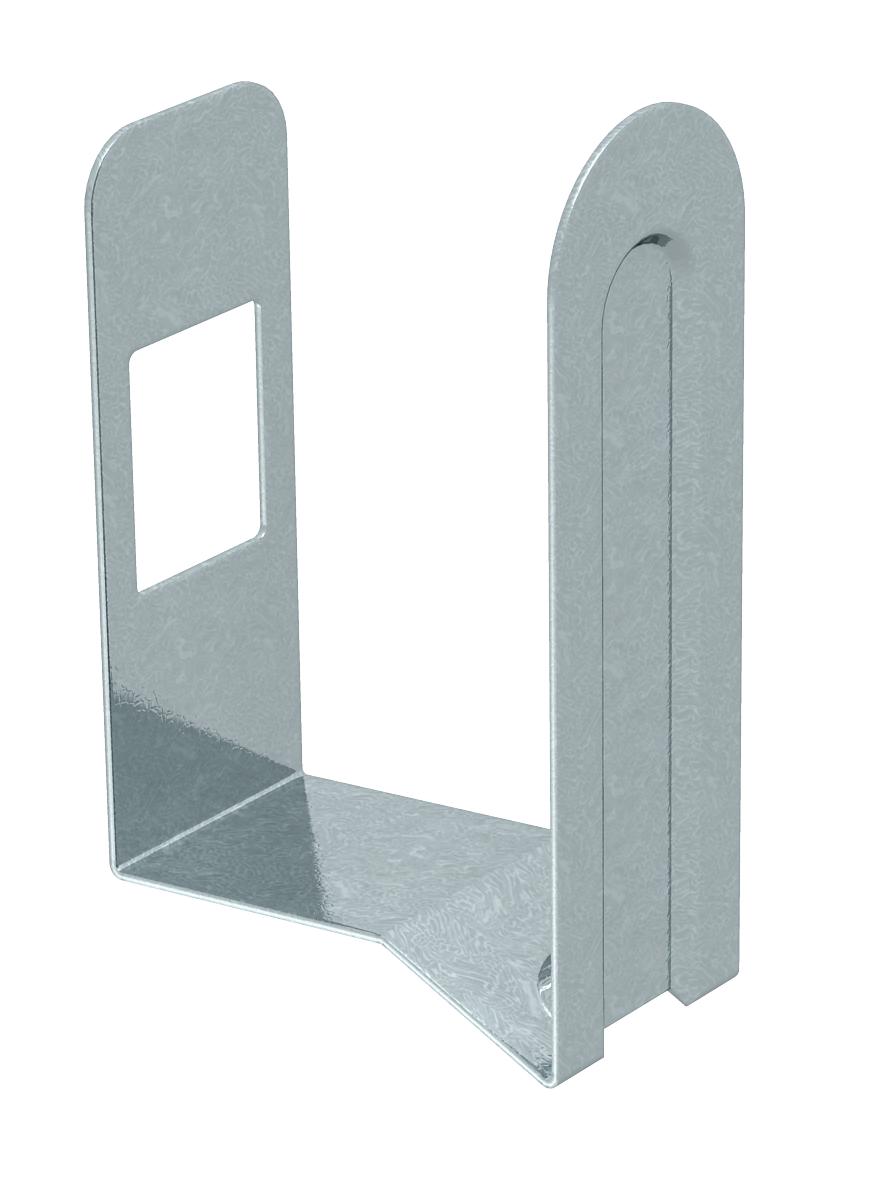

Trunking clamp, LKM, trunking width 100 mm
Item no. 6249884 | EAN 4012196119233
- Product description
-
Product descriptionThe duct clamp keeps the inserted cables in the duct, thus simplifying installation on walls and ceilings. The duct clamps are plugged onto the loop perforation and locked on the side wall. Suitable for duct width 100 mm.
-
- Technical data
-
Technical data

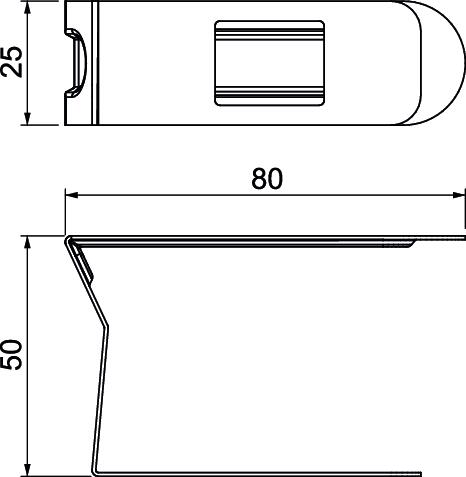

Dimension 80mm Dimension a 25 mm Dimension b 81 mm Dimension c 49 mm Fastening type Lockable for duct dimension 60 x 100 Halogen-free yes Height 49 mm Length 25 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Surface galvanised, blue passivated Width 81 mm With equipotential bonding no - All types
- Downloads
-
Data sheet LKM K80 / 6249884 , 0.19MB , pdfBrochure LKM cable trunking , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity LKM K80 / 6249884 , 0.10MB , pdfUK Declaration of Conformity LKM K80 / 6249884 , 0.14MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdfMounting instructions LKM-Kanal , 0.77MB , pdf
