- Product description
-
Product description

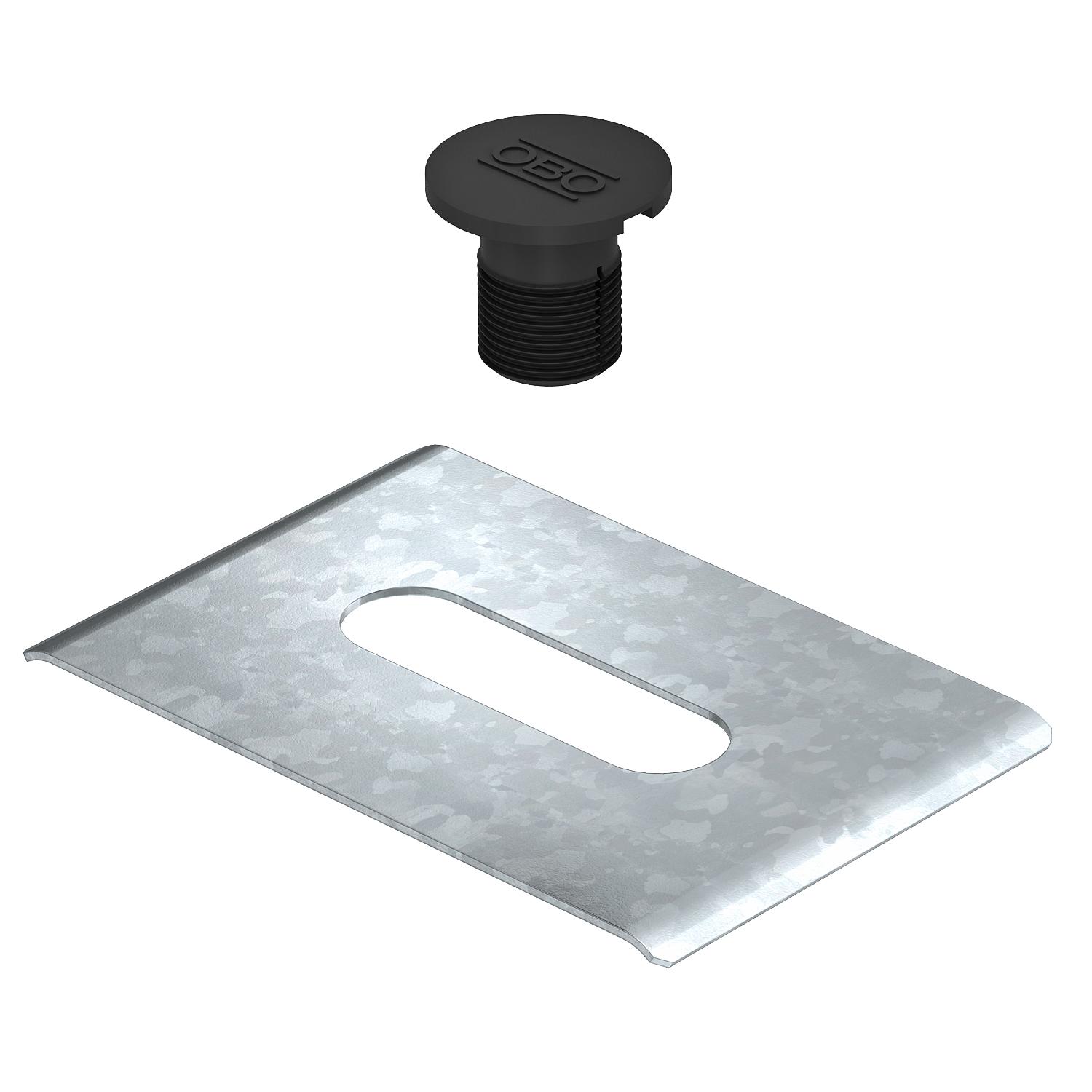

• Fastening system for the mounting of cable trays and mesh cable trays on FangFix block, e.g. cable routing on flat roofs
• Adapted to OBO cable tray systems MKSM, SKSM and IKSM
• Adapted to OBO mesh cable tray systems with a minimum width of 100 mm
- Technical data
-
Technical data

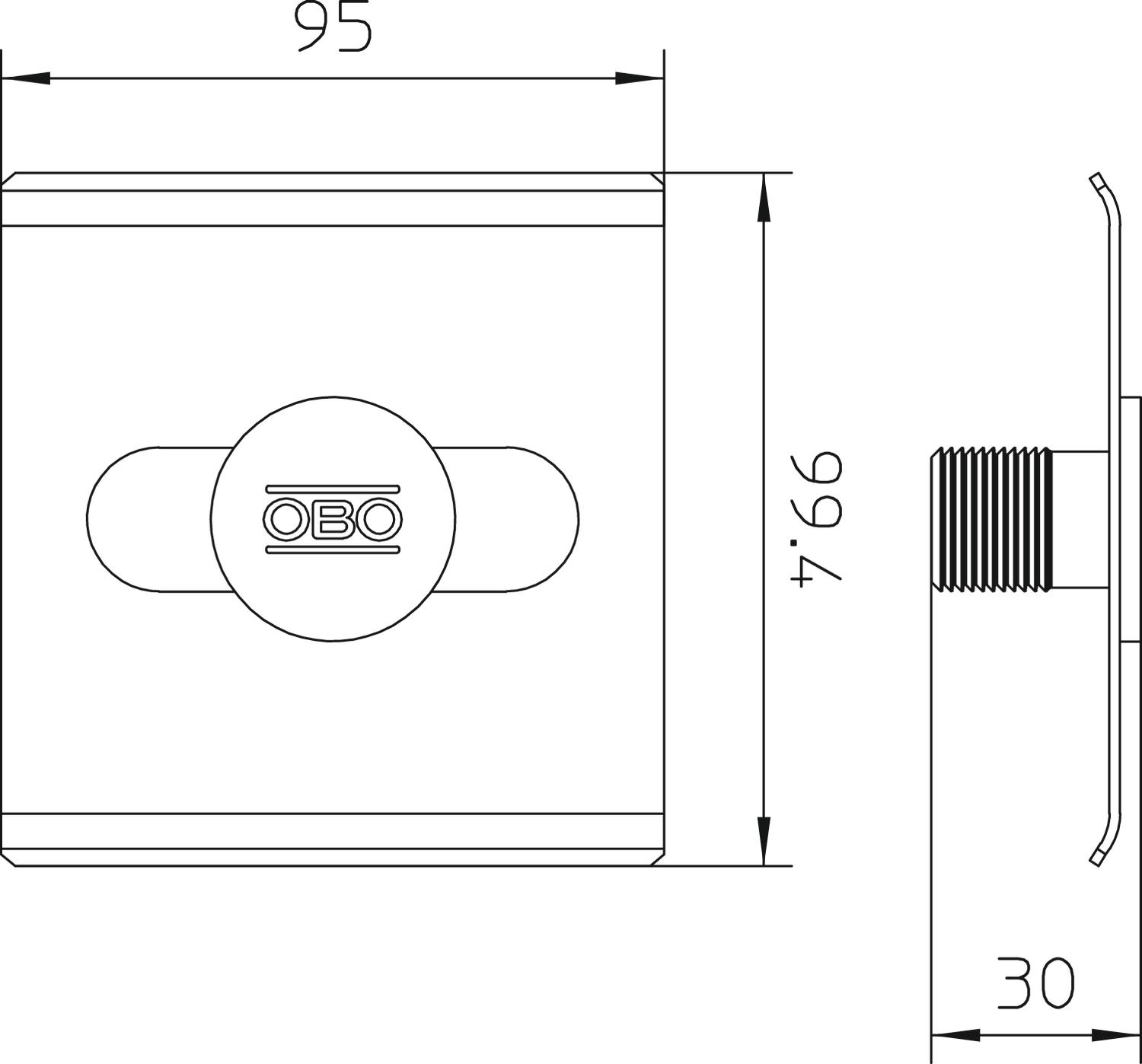

Colour Black Dimension Ø20mm Height 30 mm Length 99,4 mm Width 95 mm - All types
- Downloads
-
Data sheet TrayFix / 5403100 , 0.18MB , pdfDeclaration of conformity TrayFix / 5403100 , 0.15MB , pdfREACH Declaration of conformity TrayFix / 5403100 , 0.12MB , pdfRoHS Declaration of conformity TrayFix / 5403100 , 0.13MB , pdfMounting instructions Mounting instructions, TrayFix , 2.89MB , pdf
