Tilting anchor 100 | 13 | 0.5 | M4
morepic-1 morepic-2

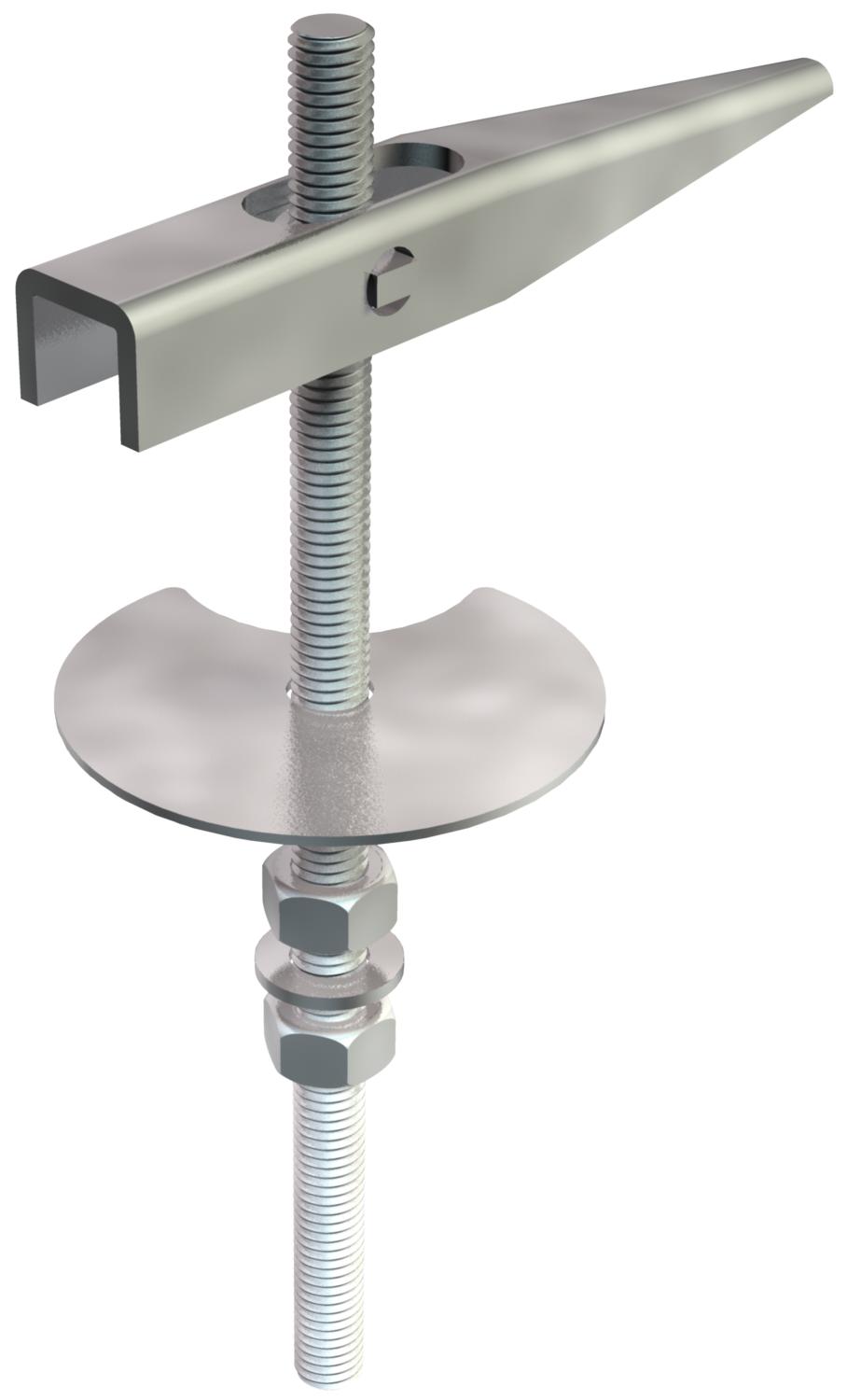

Tilting anchor

Item no. 3482154 | EAN 4012195310990

100 mm
Product description

Product description

Two washers and two hexagonal nuts, with threaded shank.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 0,5 kN

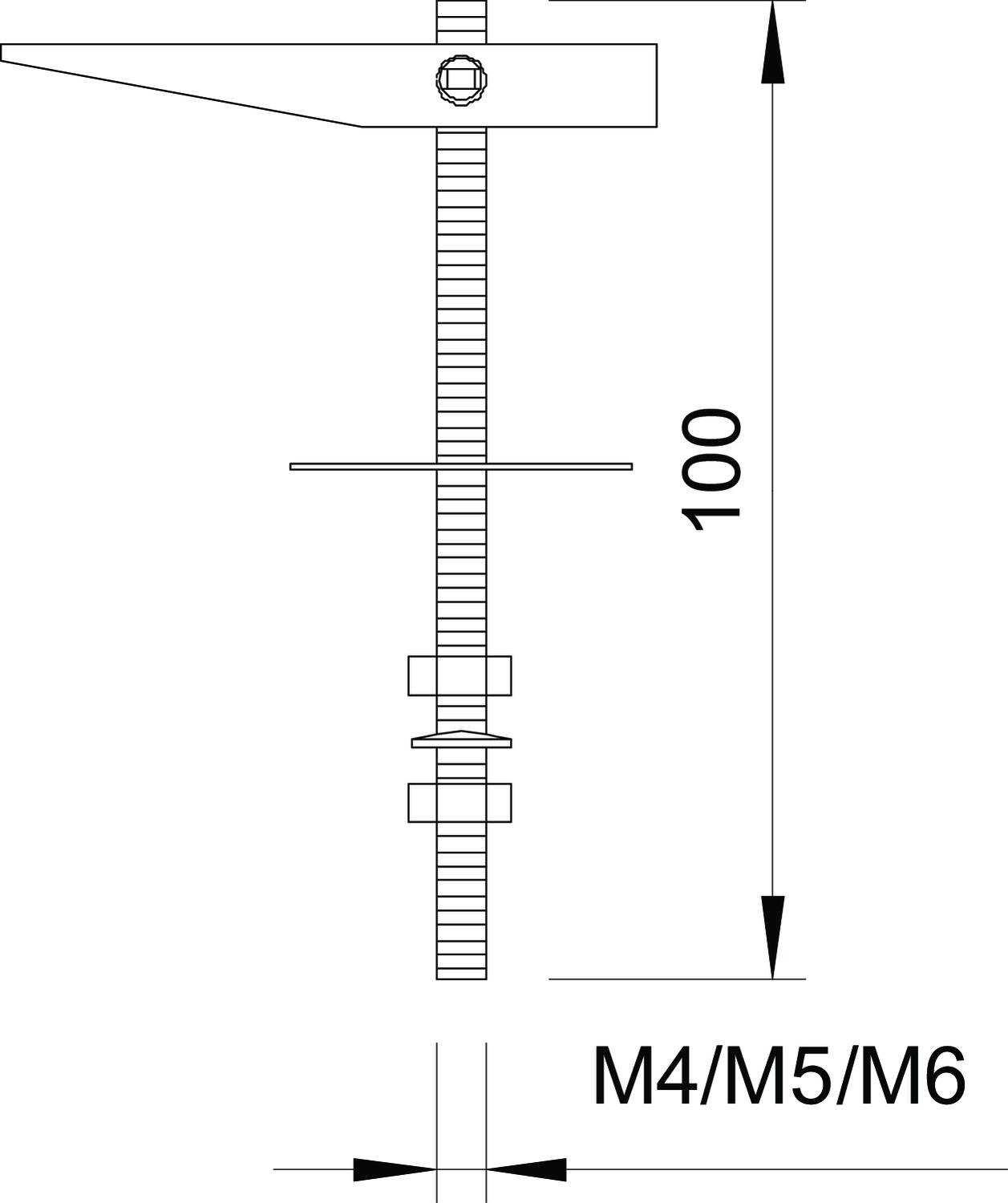

Dimension M4x100mm
Drill hole diameter, min. 13 mm
Length 100 mm
Material Steel
Surface Electrogalvanized
Thread M4
Thread type Metric
Version for With threaded shaft
With washer yes
All types

All types

Types Length Drill hole diameter, min. Breaking load Thread Item no. Quantity SSU
453 M6x100 G 100 mm 16 mm 0.7 kN M6 3482014
50 piece
456 M5x100 G 100 mm 13 mm 0.7 kN M5 3482103
50 piece
458 M4x100 G 100 mm 13 mm 0.5 kN M4 3482154
50 piece
Downloads

Download

Download

Declaration of conformity 458 M4x100 G / 3482154 , 0.04MB , pdf
Download

458 M4x100 G / 3482154
