Terminal strip set with screwless terminals for SDB 09

Item no. 2008918 | EAN 4012196465880

2008918 / KLS-SDB 09S
172 mm
Product description

Product description

Terminal strip set for the small distributors of the SDB series. The sets can be used to expand and equip the empty small distributors of the SDB 09... type series.

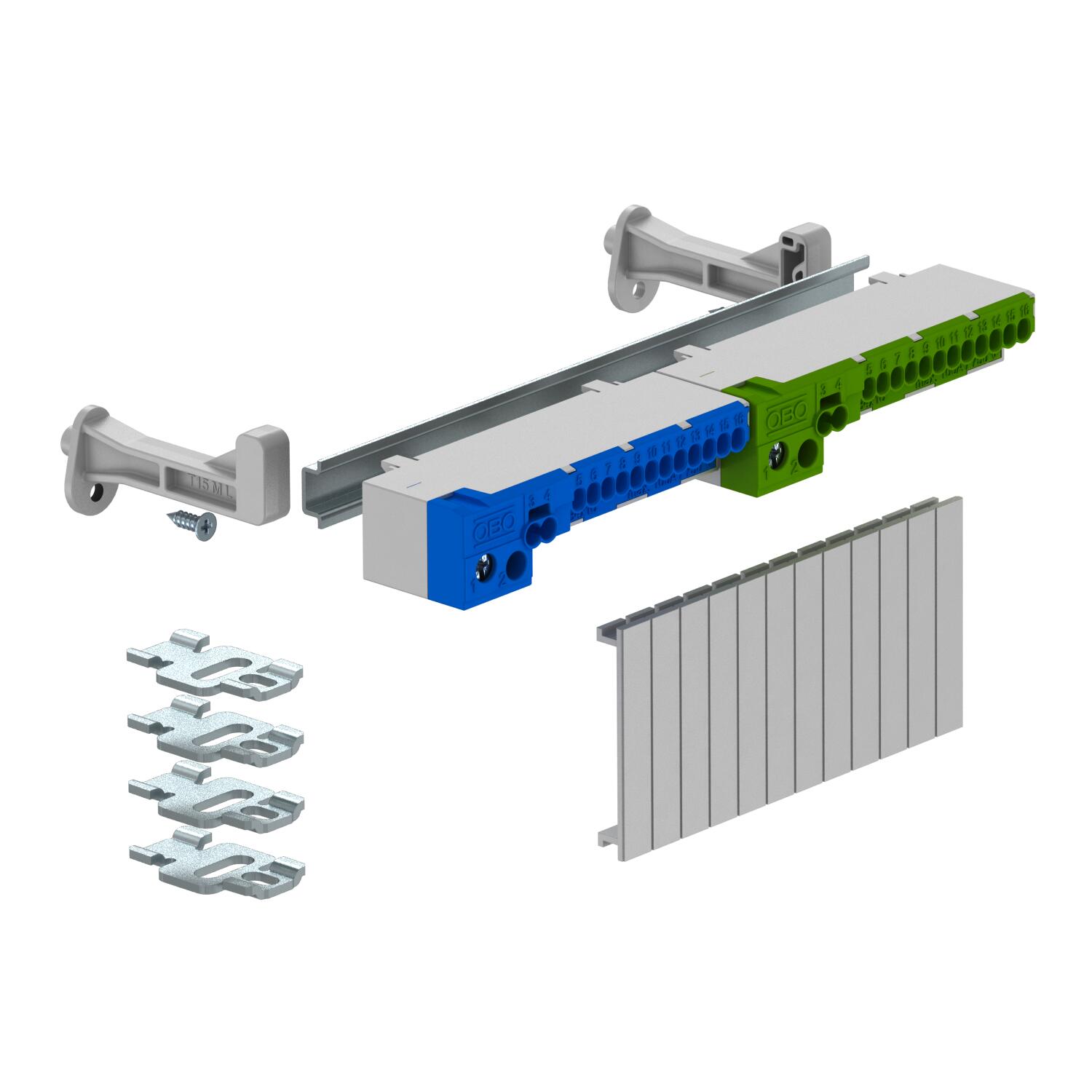

Mounting instructions; cover strip; hat rail with corresponding support and fastening material; one protective conductor terminal and one neutral conductor terminal each with two 16/25 mm² screw terminals and 2x 4 mm² and 12x 2.5 mm² screwless terminals
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cross-section 2.5 mm²
Dimension 172x15x4
Height 4 mm
Length 172 mm
Width 15 mm
All types

All types

Types Length Item no. Quantity SSU
KLS-SDB 09S 172 mm 2008918
1 piece
