- Product description
-
Product descriptionTerminal strip set for the distribution boxes of the SDB series. The sets can be used to expand and equip empty distribution boxes of the SDB series.

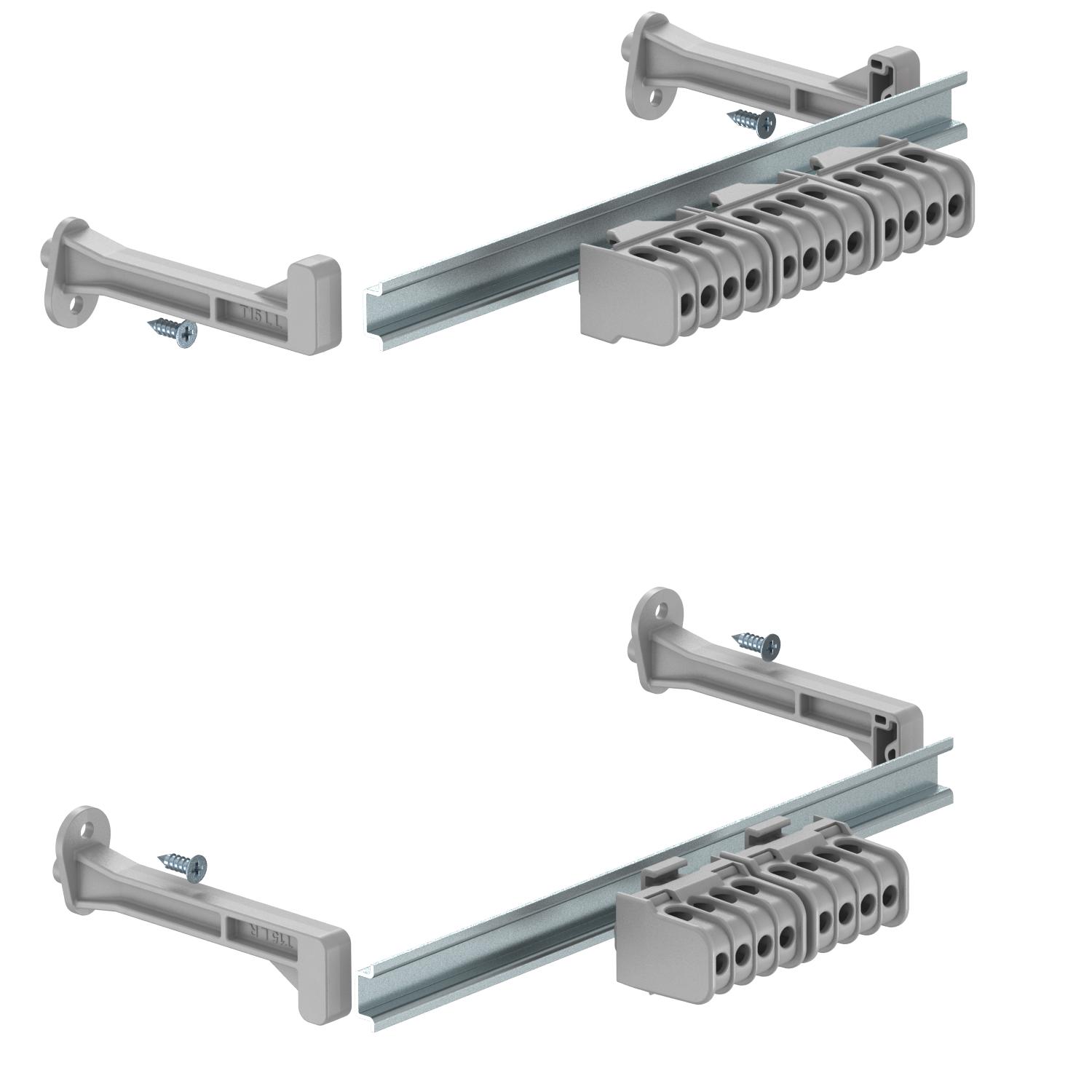

Mounting instructions; hat rail with corresponding support and fastening material; 16 mm² protective conductor terminal; 16 mm² neutral conductor terminal
- Technical data
-
Technical data

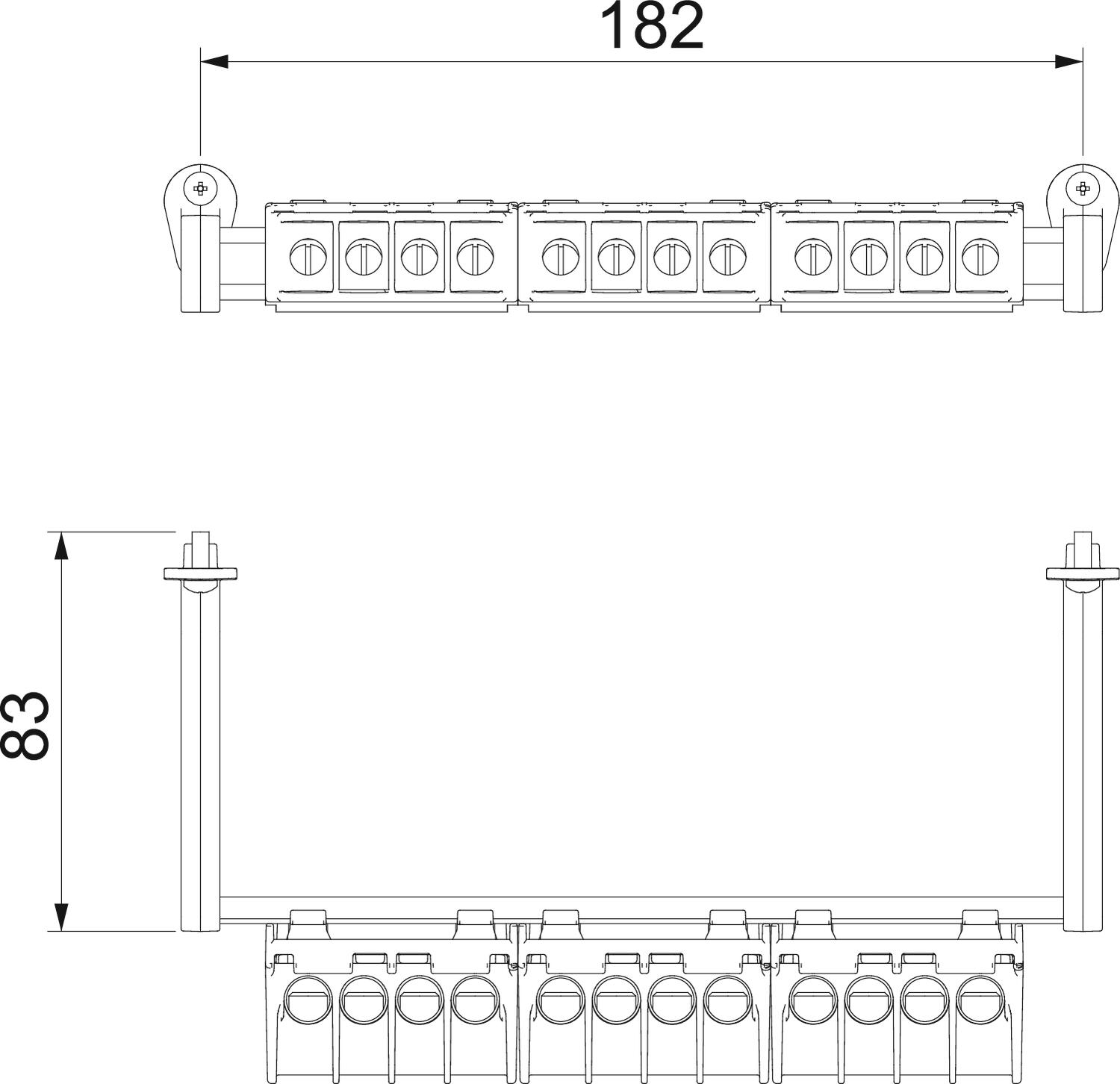

Dimension 16-35mm² Length 182 mm Nominal cross-section, max. 35 mm² Nominal cross-section, min. 16 mm² Nominal current 100 A Nominal voltage 450 V Number of screwless terminals per pole 4 Pole number 5 - All types
- Downloads
-
Data sheet KL-X25 16-35 / 2008939 , 0.19MB , pdf
