Terminal strip 6–16 mm², junction box, T series, X series

Item no. 2016190 | EAN 4012195896951

2016190 / KL-T 06-16
4
6 mm²
16 mm²
400 V

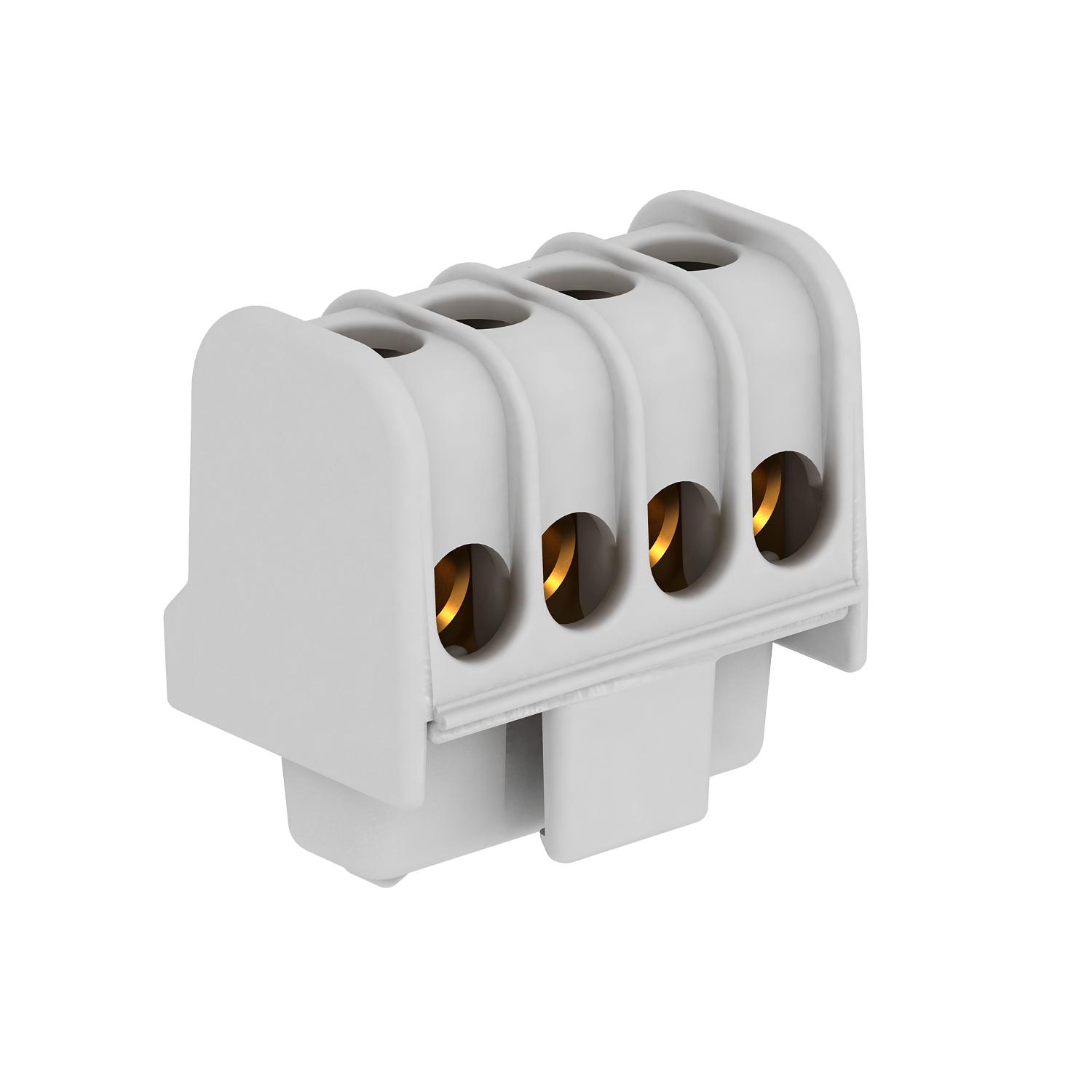

Product description

Product description

Brass terminals, steel screws, electrogalvanised and transparently passivated, nominal cross-section 6 ÷ 16 mm², nominal voltage 400 V, 1-pin, with terminal sockets, max. connectable conductor per terminal 4 x 16 mm², 4 x 10 mm², 8 x 6 mm² or 12 x 4 mm².
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 960 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives

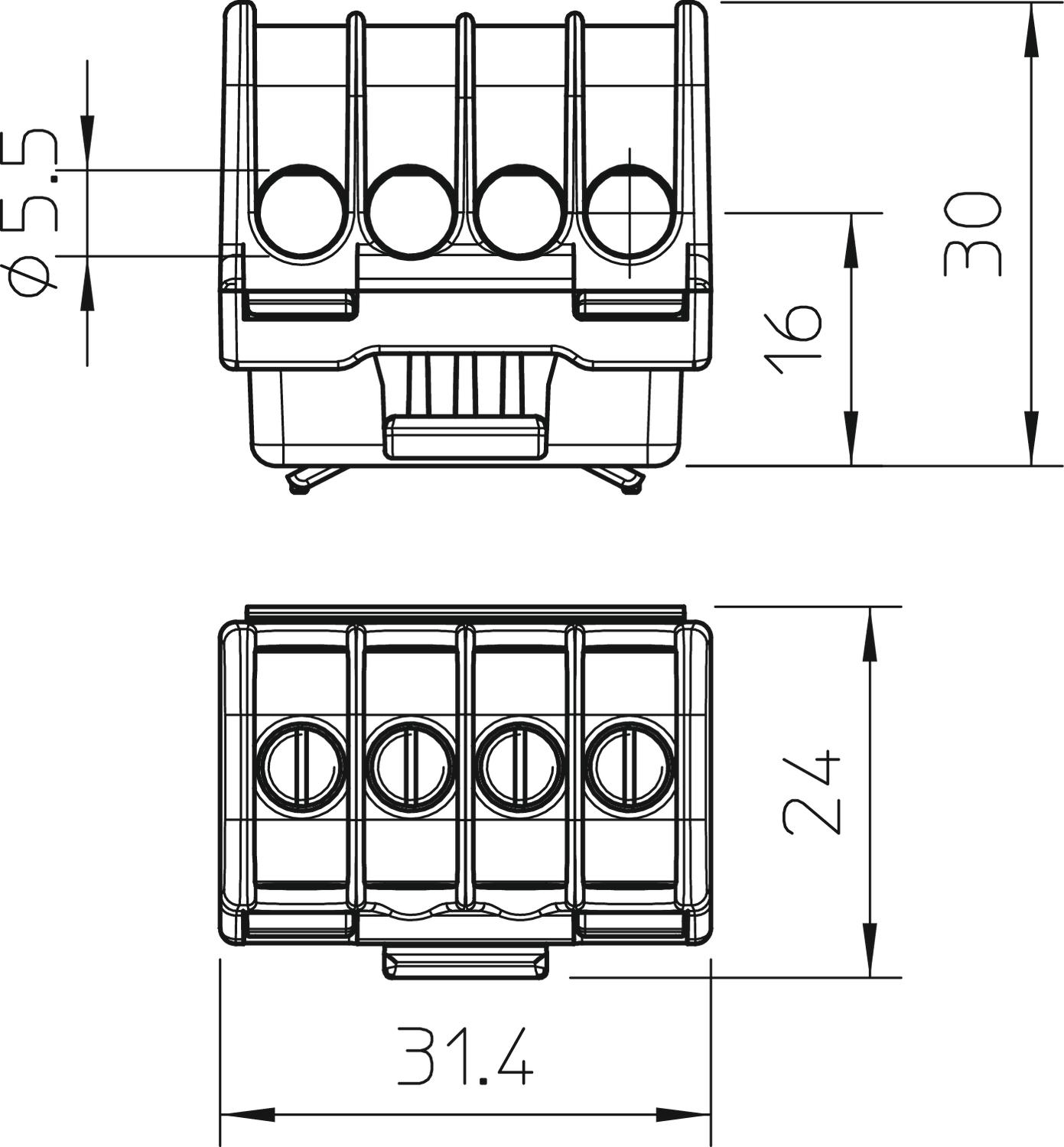

Technical data

Technical data

Closing plate required no
Colour Light grey
Connectable conductor cross-section, single-wire, max. 16 mm²
Connectable conductor cross-section, single-wire, min. 4 mm²
Connection position Side
Cross-section Max. connectable conductors per terminal max. 4 x 16 mm², 4 x 10 mm², 8x6 mm² or 12 x 4 mm² mm²
Dimension 16mm²
Explosion-tested version no
Height 30 mm
Insulation material Thermoplast
Length 31,4 mm
Material Polyamide
No. of terminals 4
Nominal cross-section, max. 16 mm²
Nominal cross-section, min. 6 mm²
Nominal current 76 A
Nominal voltage 400 V
Number of screwless terminals per pole 1
Pole number 1
Transparent no
Version of electrical connection 1 Screw connection
Width 24 mm
All types

All types

Types No. of terminals Nominal cross-section, min. Nominal cross-section, max. Nominal voltage Item no. Quantity SSU
KL-T 06-16 4 6 mm² 16 mm² 400 V 2016190
10 piece
