Terminal strip 16–35 mm², junction box, T series, X series 4 | 16 | 35 | 400

Terminal strip 16–35 mm², junction box, T series, X series

Item no. 2016195 | EAN 4012195896968

Item no. / Types	2016195 / KL-T 16-35

No. of terminals	4

Nominal cross-section, min.	16 mm²

Nominal cross-section, max.	35 mm²

Nominal voltage	400 V

Product description

Product description

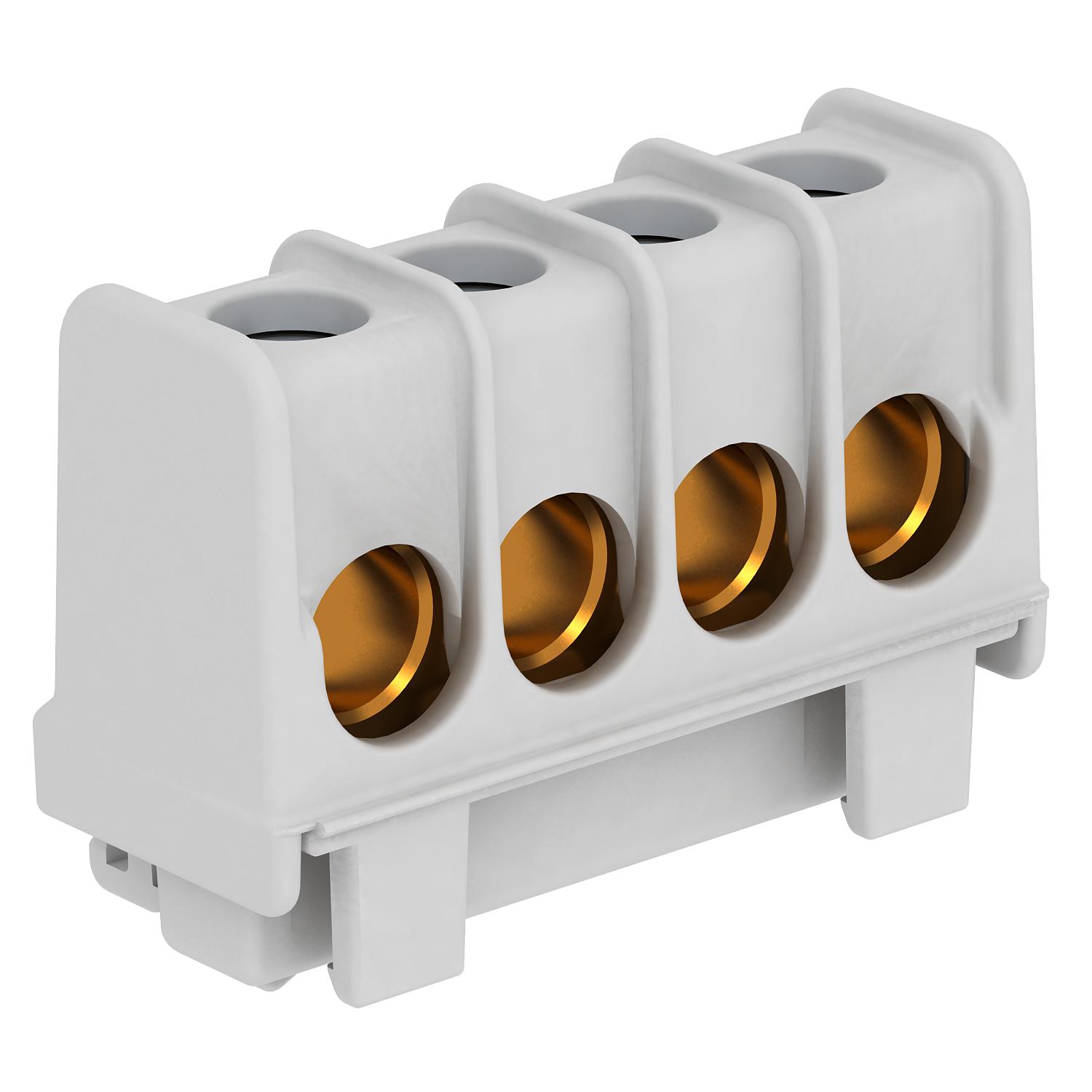

Brass terminals, steel screws, electrogalvanised and transparently passivated, nominal cross-section 16 ÷ 35 mm², nominal voltage 400 V, 1-pin, with terminal sockets, max. connectable conductor per terminal 4 x 35 mm², 4 x 25 mm², 8 x 16 mm² or 12 x 10 mm².

Technical data

Technical data

Closing plate required	no
Colour	Light grey
Connectable conductor cross-section, single-wire, max.	35 mm²
Connectable conductor cross-section, single-wire, min.	10 mm²
Connection position	Side
Cross-section	Max. connectable conductors per terminal max. 4 x 35 mm², 4 x 25 mm², 8x16 mm² or 12 x 10 mm² mm²
Dimension	35mm²
Explosion-tested version	no

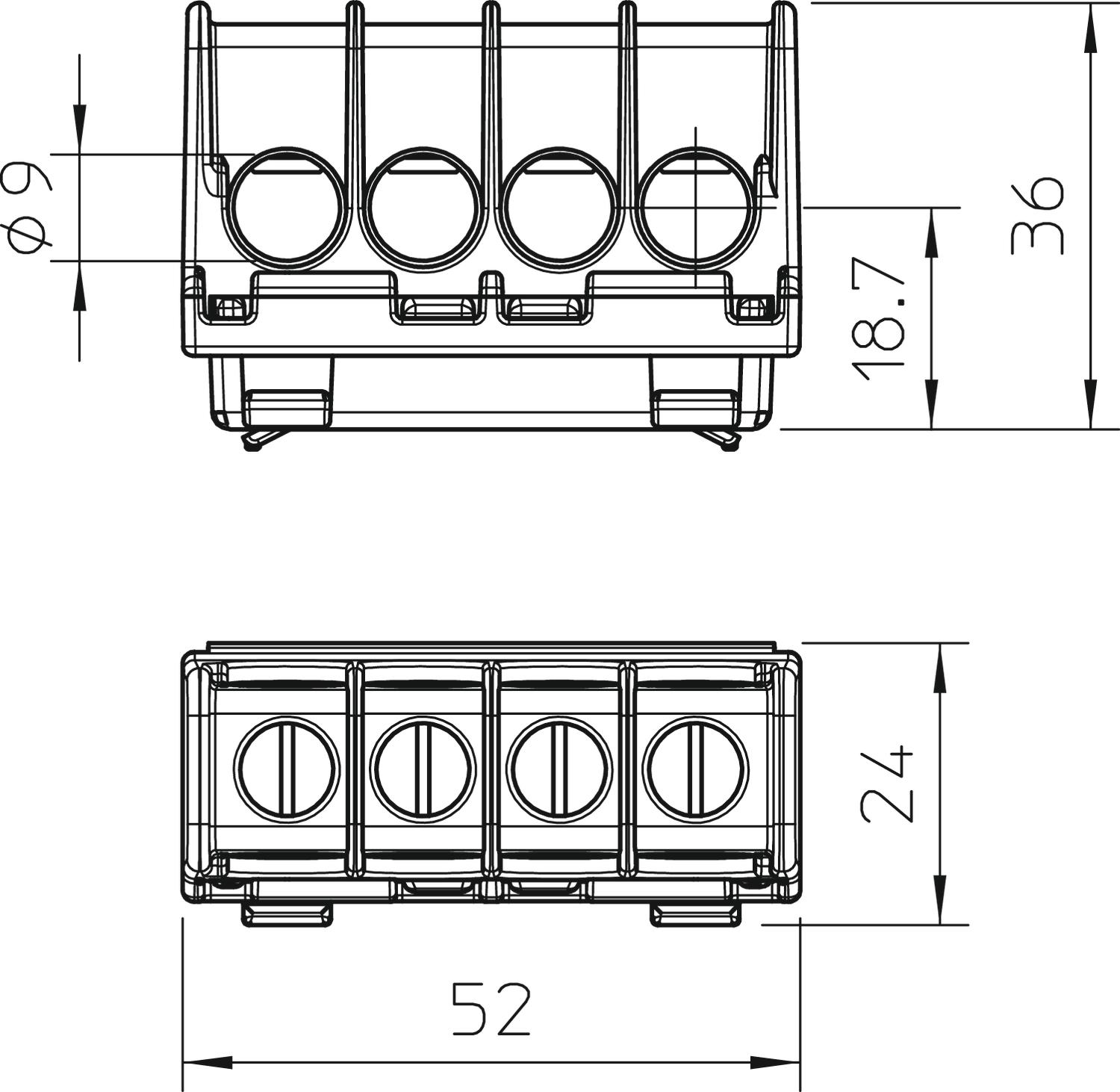

Height	36 mm
Insulation material	Thermoplast
Length	52 mm

Material	Polyamide
No. of terminals	4
Nominal cross-section, max.	35 mm²
Nominal cross-section, min.	16 mm²
Nominal current	125 A
Nominal voltage	400 V
Number of screwless terminals per pole	1
Pole number	1
Transparent	no
Version of electrical connection 1	Screw connection
Width	24 mm
