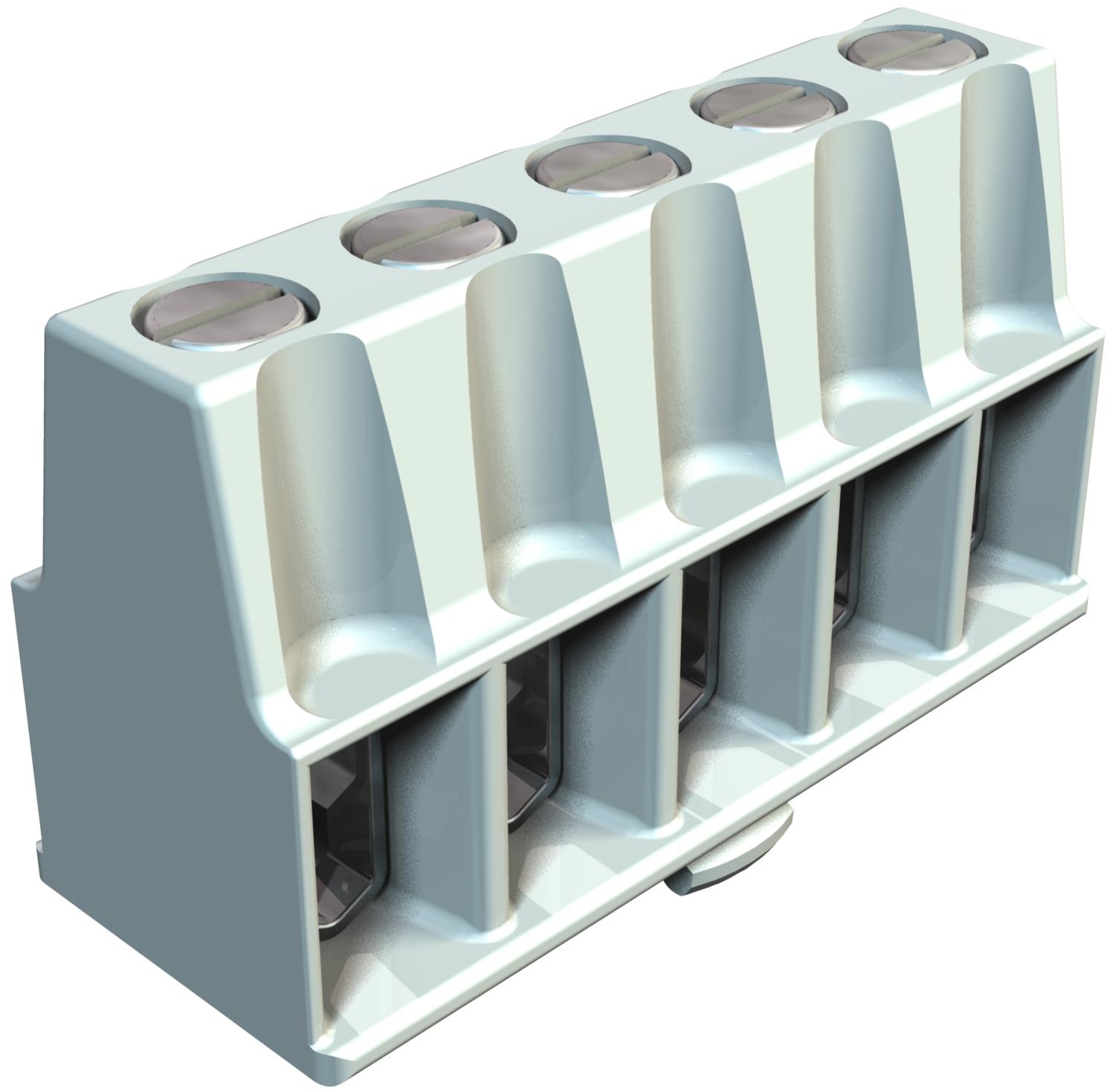

Terminal strip 1.5–6 mm², junction box, T series
Item no. 2016185 | EAN 4012195942832
- Product description
-
Product descriptionTerminals and screws made of steel, galvanised and transparent-chromated, nominal cross-section 1.5 ÷ 6 mm², rated voltage 400 V, five-pole, with socket terminals, max. connectable cross-sections per terminal: 3x6 mm², 4x4 mm² or 6x2.5 mm².
-
- Technical data
-
Technical data

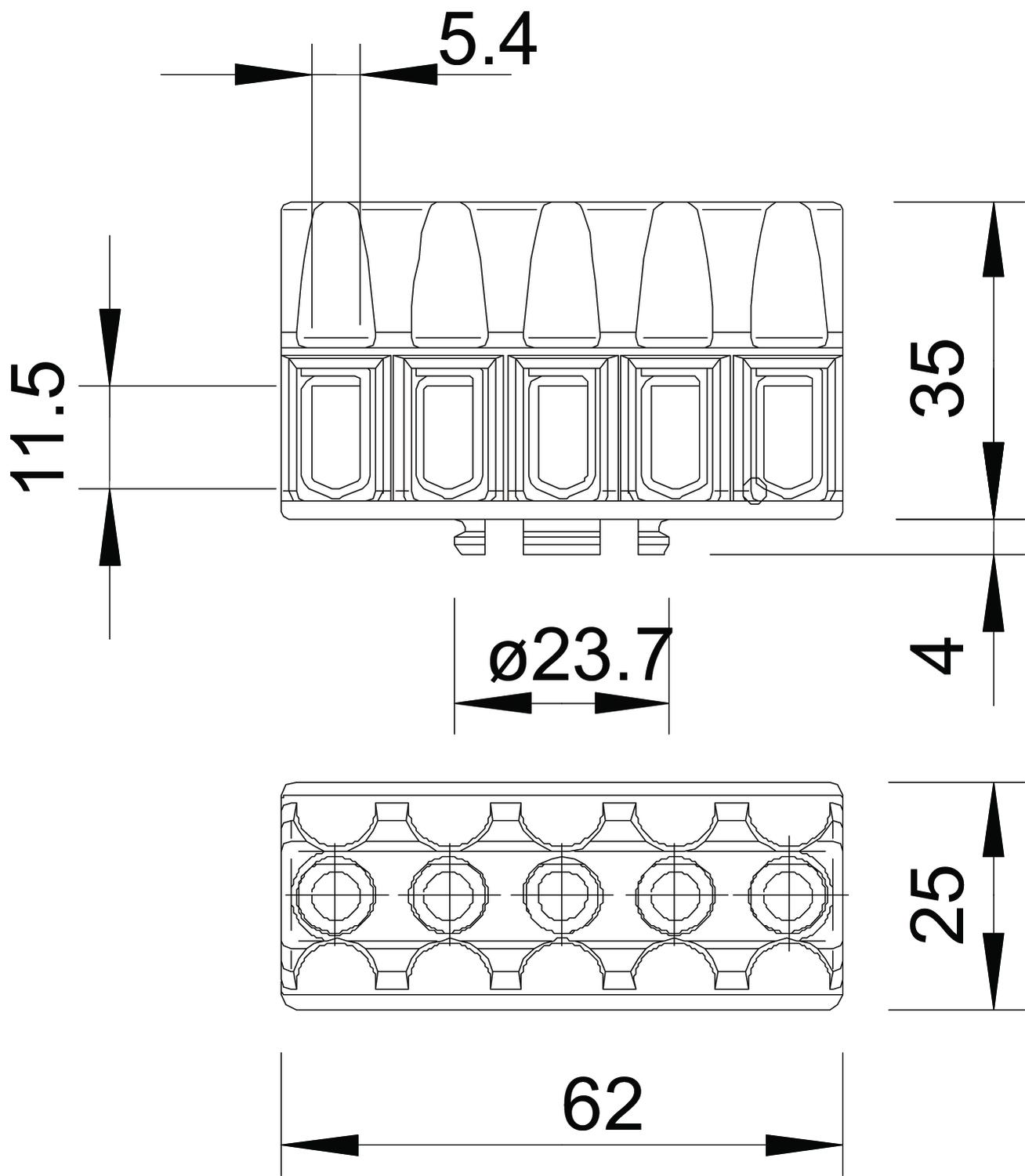

Closing plate required no Colour Light grey Connectable conductor cross-section, single-wire, max. 6 mm² Connectable conductor cross-section, single-wire, min. 2,5 mm² Connection position Side Cross-section Max. connectable cross-sections per terminal: 3 x 6 mm², 4 x 4 mm² or 6 x 2.5 mm² mm² Dimension 6mm² Explosion-tested version no Height 35 mm Insulation material Thermoplast Length 62 mm Material Polyamide No. of terminals 5 Nominal cross-section, max. 6 mm² Nominal cross-section, min. 1,5 mm² Nominal current 41 A Nominal voltage 400 V Number of screwless terminals per pole 1 Pole number 5 Transparent no Version of electrical connection 1 Screw connection Width 25 mm - All types
- Downloads
-
Data sheet KL-T 02-06 / 2016185 , 0.24MB , pdfEU declaration of conformity KL-T 02-06 / 2016185 , 0.05MB , pdfREACH Declaration of conformity KL-T 02-06 / 2016185 , 0.12MB , pdfRoHS Declaration of conformity KL-T 02-06 / 2016185 , 0.12MB , pdfLabel approval VDE symbol approval, KL-T 02-06 , 0.17MB , pdf
