- Product description
-
Product description

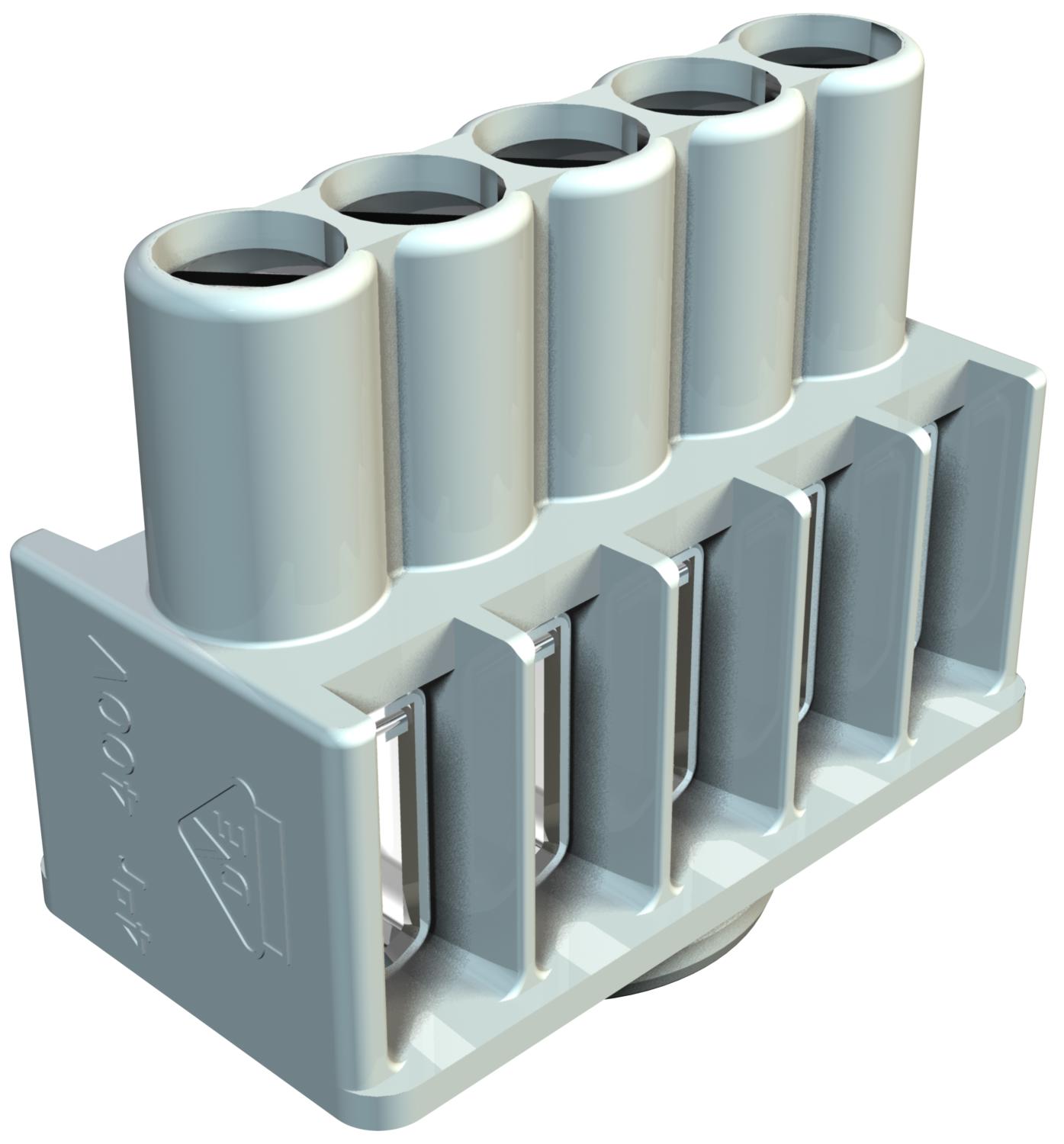

Terminals and screws made of steel, galvanised and transparent-chromated, nominal cross-section 1 ÷ 4 mm², rated voltage 400 V, five-pole, with socket terminals, max. connectable cross-sections per terminal: 4x2.5 mm², 5x1.5 mm² or 6x1 mm².
- Technical data
-
Technical data

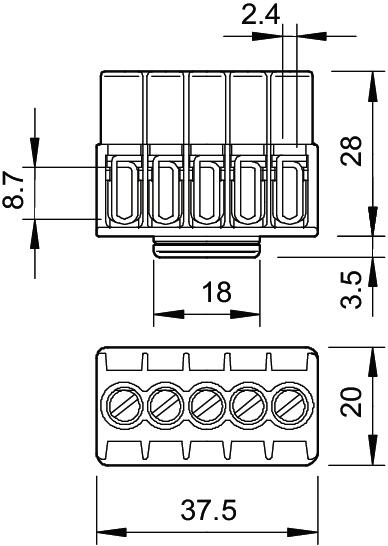

Closing plate required no Colour Light grey Connectable conductor cross-section, single-wire, max. 4 mm² Connectable conductor cross-section, single-wire, min. 1 mm² Connection position Side Cross-section Max. connectable cross-sections per terminal max. 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm² mm² Dimension 4mm² Explosion-tested version no Height 28 mm Insulation material Thermoplast Length 37,5 mm Material Polyamide No. of terminals 5 Nominal cross-section, max. 4 mm² Nominal cross-section, min. 1 mm² Nominal current 32 A Nominal voltage 400 V Number of screwless terminals per pole 1 Pole number 5 Transparent no Version of electrical connection 1 Screw connection Width 20 mm - All types
- Downloads
-
Data sheet KL-T 01-04 / 2016180 , 0.19MB , pdfDeclaration of conformity KL-T 01-04 / 2016180 , 0.05MB , pdfREACH Declaration of conformity KL-T 01-04 / 2016180 , 0.12MB , pdfRoHS Declaration of conformity KL-T 01-04 / 2016180 , 0.12MB , pdf
