Tension jack G 16 | 15.5 | 125 | 7 | M12

morepic-1

morepic-2

Tension jack G

Item no. 5300061 | EAN 4012195413653

Item no. / Types

Dimension A

Dimension B

Dimension C

Breaking load

Thread

Product description

Product description

With hook and eye, to DIN 1480.

Technical data

Technical data

Breaking load	7 kN
Diameter, interior	16/15,5 mm
Dimension	M12
Dimension A	16 mm
Dimension B	15,5 mm
Dimension C	125 mm

Length of clamping nut C	125 mm
Material	Steel
Span width	85 mm
Surface	Electrogalvanized
Thread	M12

All types

All types

Types	Dimension A	Dimension B	Dimension C	Breaking load	Thread	Item no.	Quantity	SSU
945 M6 G	9 mm	8.5 mm	110 mm	2 kN	M6	5300037	piece	5 piece
945 M10 G	14 mm	13.5 mm	125 mm	5 kN	M10	5300053	piece	5 piece
945 M12 G	16 mm	15.5 mm	125 mm	7 kN	M12	5300061	piece	5 piece
945 M16 G	22 mm	19 mm	170 mm	8.5 kN	M16	5300088	piece	5 piece

Downloads

Data sheet 945 M12 G / 5300061 , 0.17MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity 945 M12 G / 5300061 , 0.06MB , pdf

Download

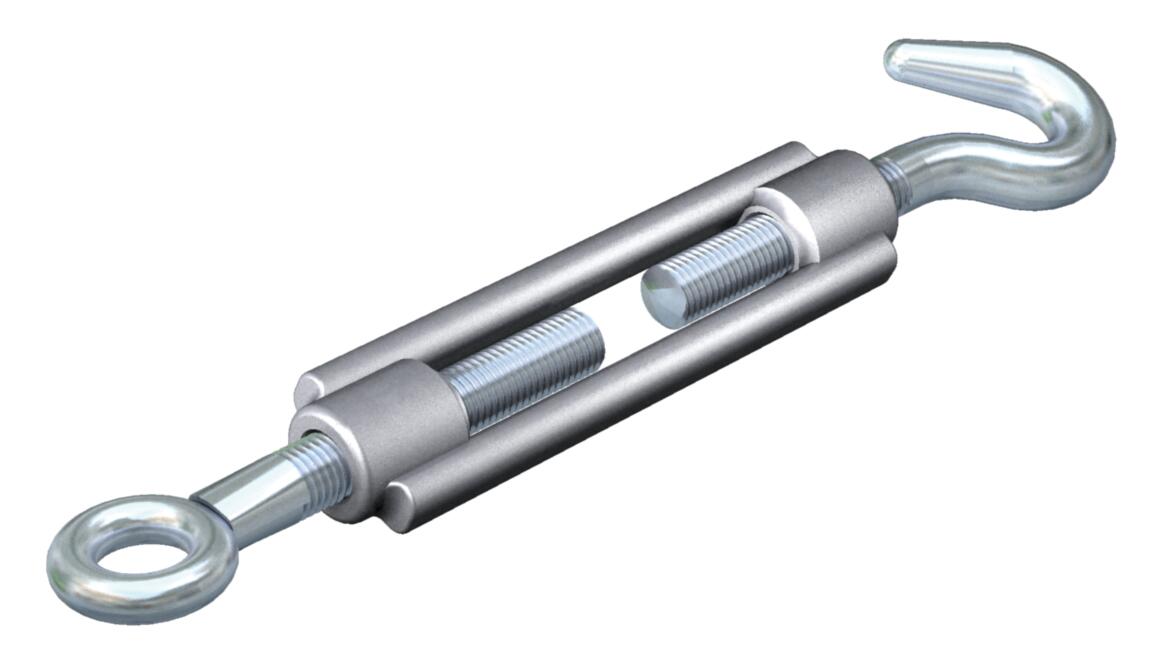

Product graphic 945 M12 G / 5300061, 38.52 kB, jpg

Scale drawing 945 M12 G / 5300061, 38.10 kB, jpg

945 M12 G / 5300061
