Tension jack A4 9 | 8.5 | 110 | 2 | M6

morepic-1

morepic-2

Tension jack A4

Item no. 5300120 | EAN 4012195901174

Item no. / Types

Dimension A

Dimension B

Dimension C

Breaking load

Thread

Product description

Product description

With hook and eye, to DIN 1480.

Technical data

Technical data

Breaking load	2 kN
Diameter, interior	9/8,5 mm
Dimension	M6
Dimension A	9 mm
Dimension B	8,5 mm
Dimension C	110 mm

Length of clamping nut C	110 mm
Material	Stainless steel
Span width	80 mm
Surface	Bright, treated
Thread	M6

All types

All types

Types	Dimension A	Dimension B	Dimension C	Breaking load	Thread	Item no.	Quantity	SSU
945 M6 A4	9 mm	8.5 mm	110 mm	2 kN	M6	5300120	piece	5 piece
945 M10 A4	14 mm	13.5 mm	125 mm	5 kN	M10	5300124	piece	5 piece
945 M12 A4	16 mm	15.5 mm	125 mm	8 kN	M12	5300127	piece	5 piece
945 M16 A4	22 mm	19 mm	170 mm	10 kN	M16	5300132	piece	5 piece

Downloads

Data sheet 945 M6 A4 / 5300120 , 0.16MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

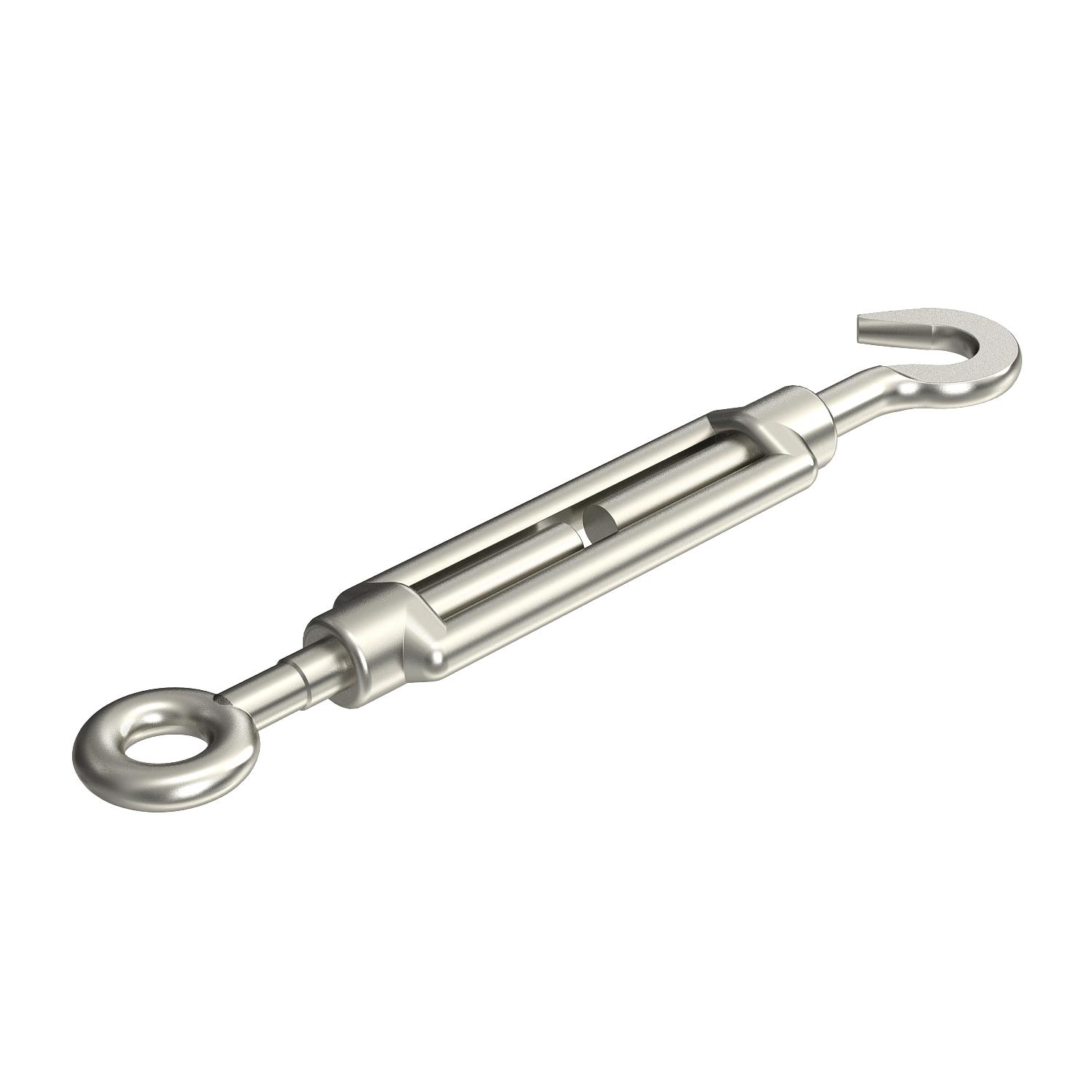

Product graphic 945 M6 A4 / 5300120, 55.41 kB, jpg

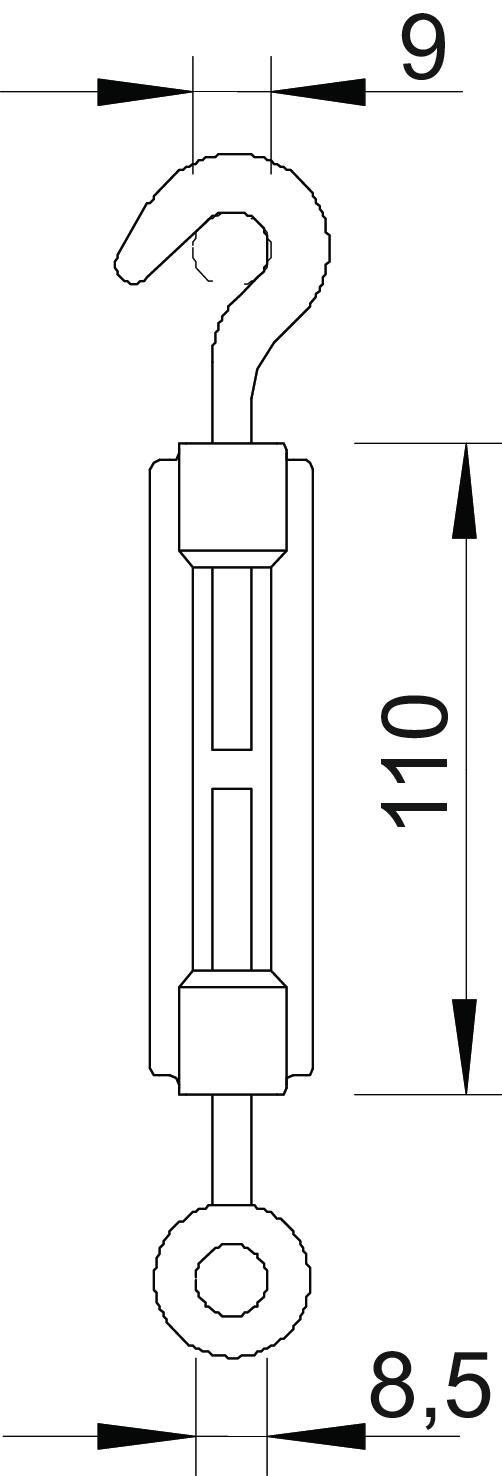

Scale drawing 945 M6 A4 / 5300120, 36.93 kB, jpg
