Tension jack A4 14 | 13.5 | 125 | 5 | M10

morepic-1

morepic-2

Tension jack A4

Item no. 5300124 | EAN 4012195901181

Item no. / Types

Dimension A

Dimension B

Dimension C

Breaking load

Thread

Product description

Product description

With hook and eye, to DIN 1480.

Technical data

Technical data

Breaking load	5 kN
Diameter, interior	14/13,5 mm
Dimension	M10
Dimension A	14 mm
Dimension B	13,5 mm
Dimension C	125 mm

Length of clamping nut C	125 mm
Material	Stainless steel
Span width	80 mm
Surface	Bright, treated
Thread	M10

All types

All types

Types	Dimension A	Dimension B	Dimension C	Breaking load	Thread	Item no.	Quantity	SSU
945 M6 A4	9 mm	8.5 mm	110 mm	2 kN	M6	5300120	piece	5 piece
945 M10 A4	14 mm	13.5 mm	125 mm	5 kN	M10	5300124	piece	5 piece
945 M12 A4	16 mm	15.5 mm	125 mm	8 kN	M12	5300127	piece	5 piece
945 M16 A4	22 mm	19 mm	170 mm	10 kN	M16	5300132	piece	5 piece

Downloads

Data sheet 945 M10 A4 / 5300124 , 0.17MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

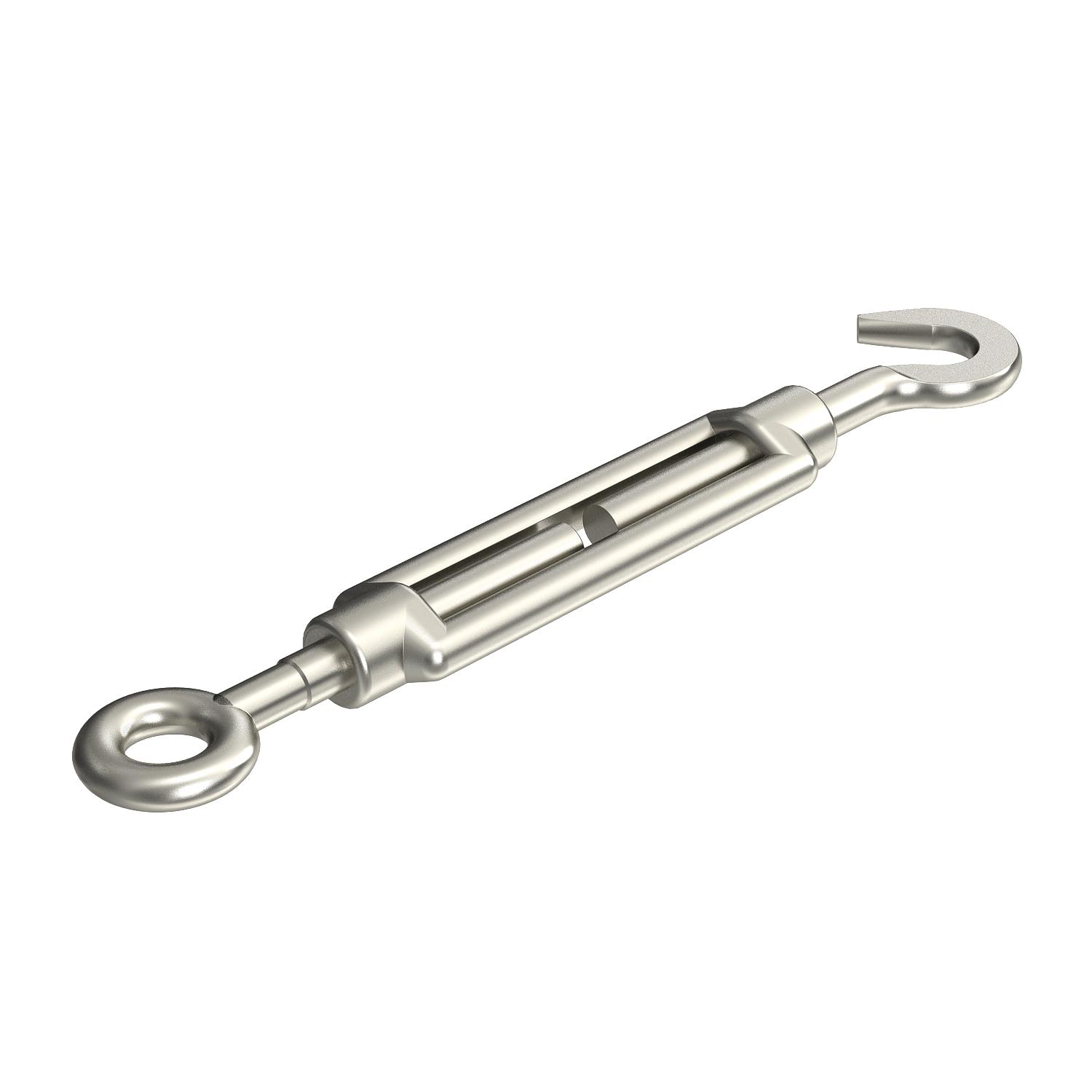

Product graphic 945 M10 A4 / 5300124, 55.41 kB, jpg

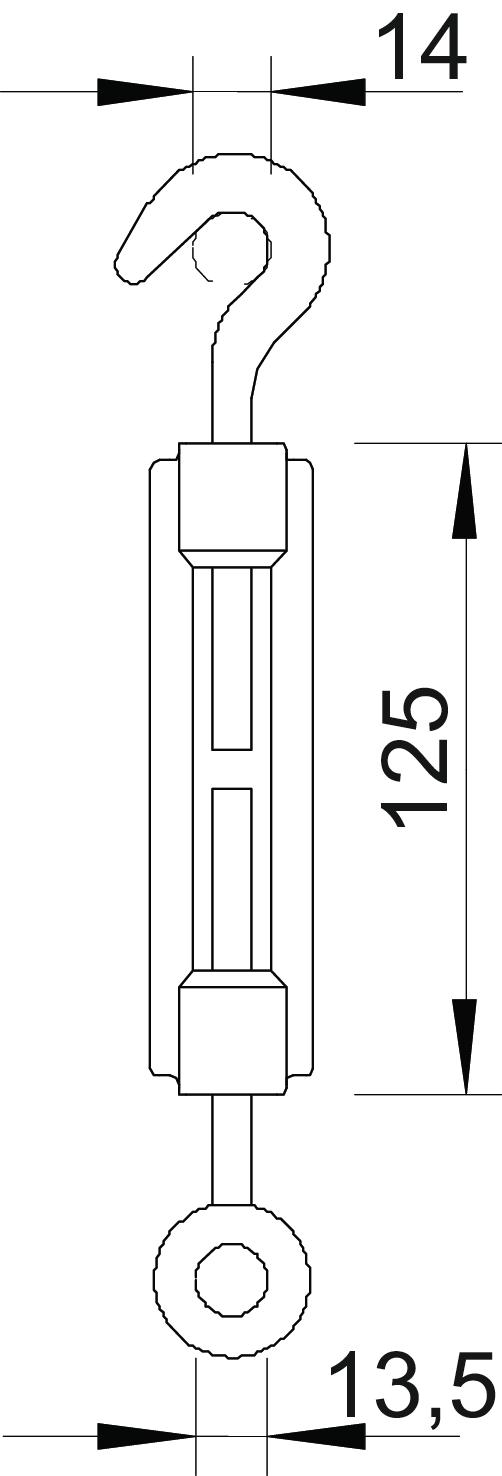

Scale drawing 945 M10 A4 / 5300124, 37.75 kB, jpg
