T piece, for cable trunking type LKM 80080
Item no. 6248450 | EAN 4012195699125
- Product description
-
Product description
T piece including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data

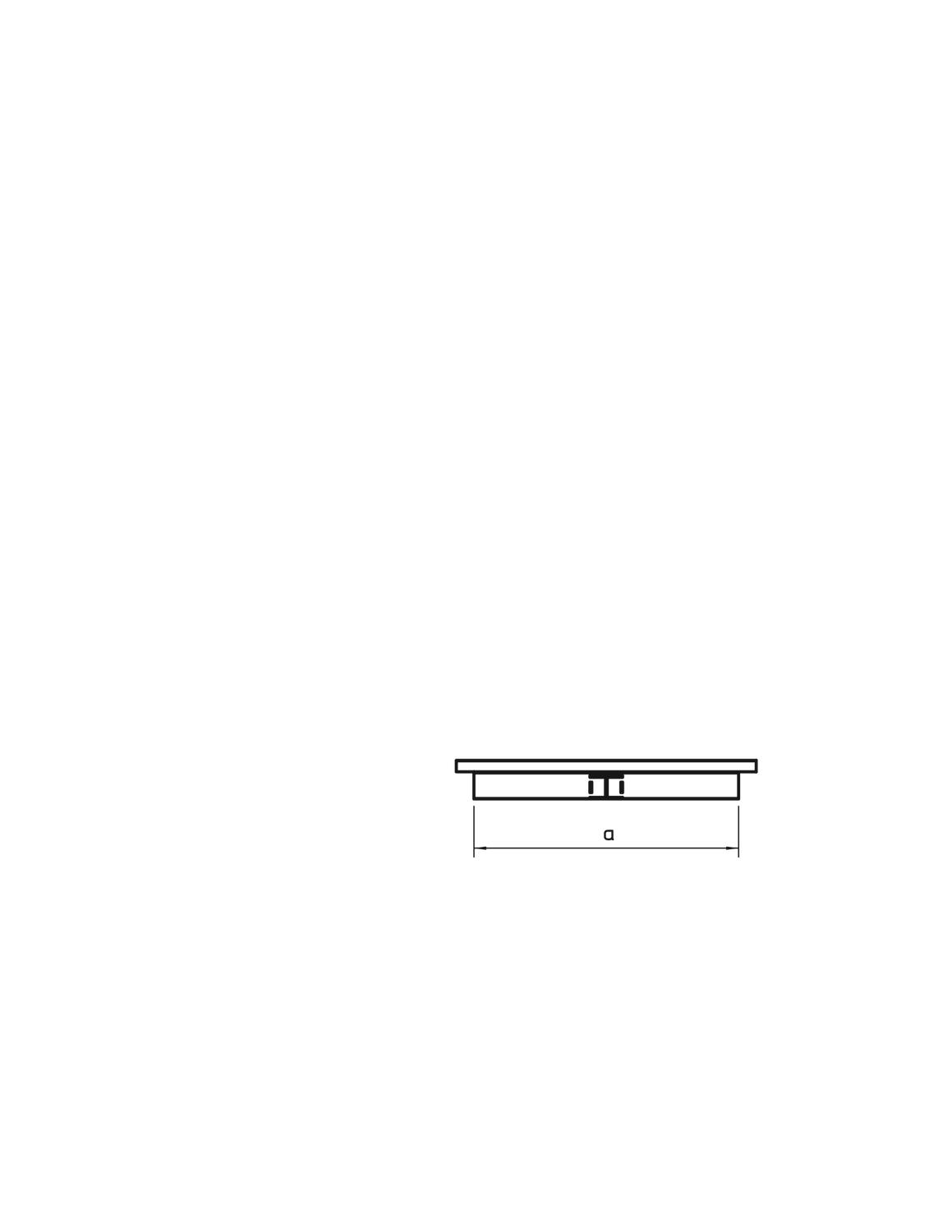

Colour Pure white; RAL 9010 Dimension 80x80mm Dimension a 300 mm Duct height, min. 80 mm Fastening type Base perforation for duct dimension 80 x 80 Halogen-free yes Height 80 mm Length 300 mm Maintain electrical functions no Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized / plastic coated Trunking depth 80 mm Version for Base and cover Width 80 mm - All types
