Product description

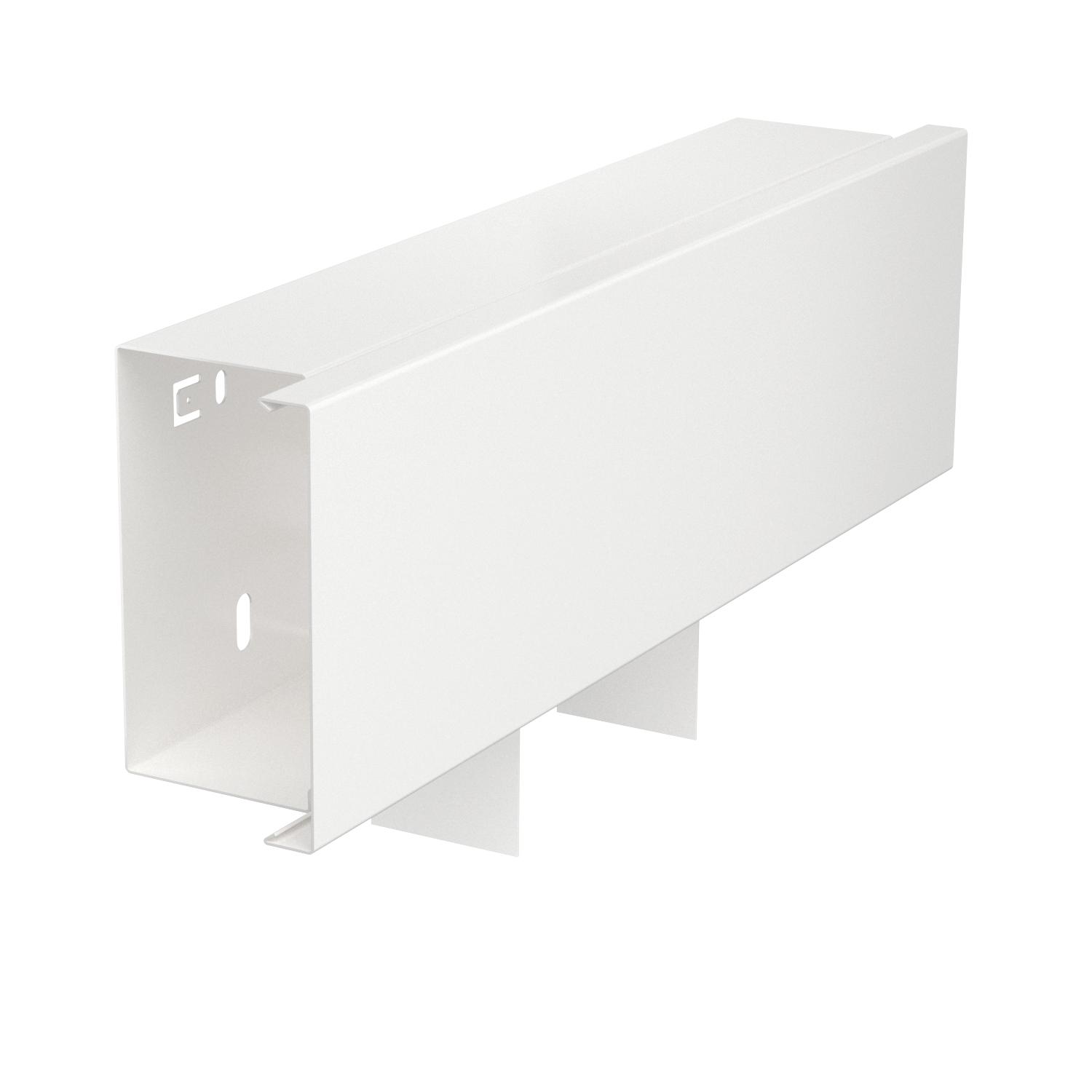

T piece including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
-
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Dimension 60x100mm Duct height, min. 64 mm Fastening type Base perforation for duct dimension 60 x 100 Halogen-free yes Maintain electrical functions yes Material Steel Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK10 Protective film no Surface Strip galvanized / plastic coated Trunking depth 64 mm Version for Base and cover Dimensions
Dimension a 300 mm Height 64 mm Length 300 mm Width 100 mm - All types
- Downloads
-
Data sheet LKM T60100RW / 6249701 , 0.23MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity LKM T60100RW / 6249701 , 0.15MB , pdfUK Declaration of Conformity LKM T60100RW / 6249701 , 0.14MB , pdfREACH Declaration of conformity LKM T60100RW / 6249701 , 0.27MB , pdfRoHS Declaration of conformity LKM T60100RW / 6249701 , 0.28MB , pdfLabel approval VDE symbol approval LKM , 0.15MB , pdf
