T piece cover, for trunking type WDKH 20020 57 | 39 | | Light grey; RAL 7035
morepic-1 morepic-2

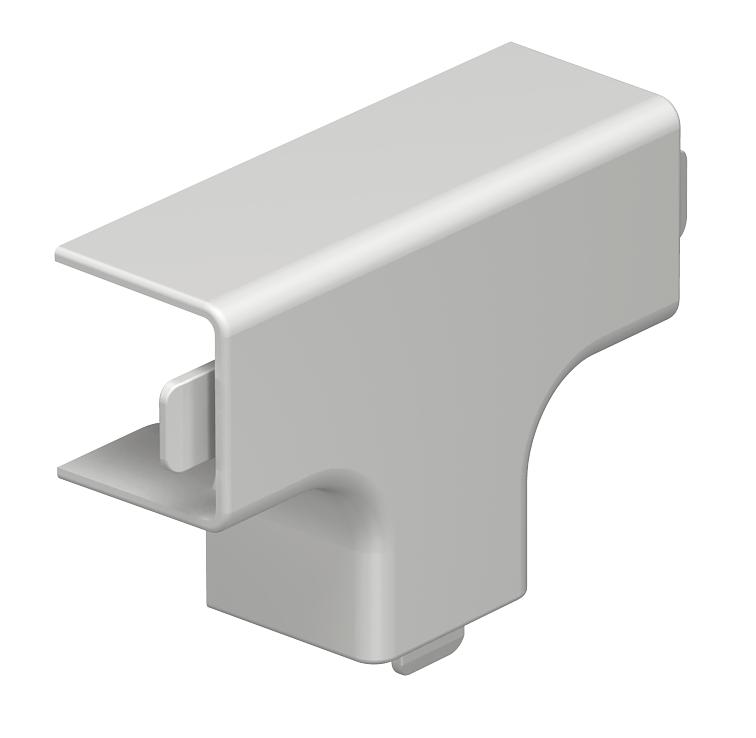

T piece cover, for trunking type WDKH 20020

Item no. 6176072 | EAN 4012195922971

57 mm
39 mm
Product description
Product description
T and intersection cover for changing the direction of the halogen-free WDK-H trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Light grey; RAL 7035
Dimension 20x20mm

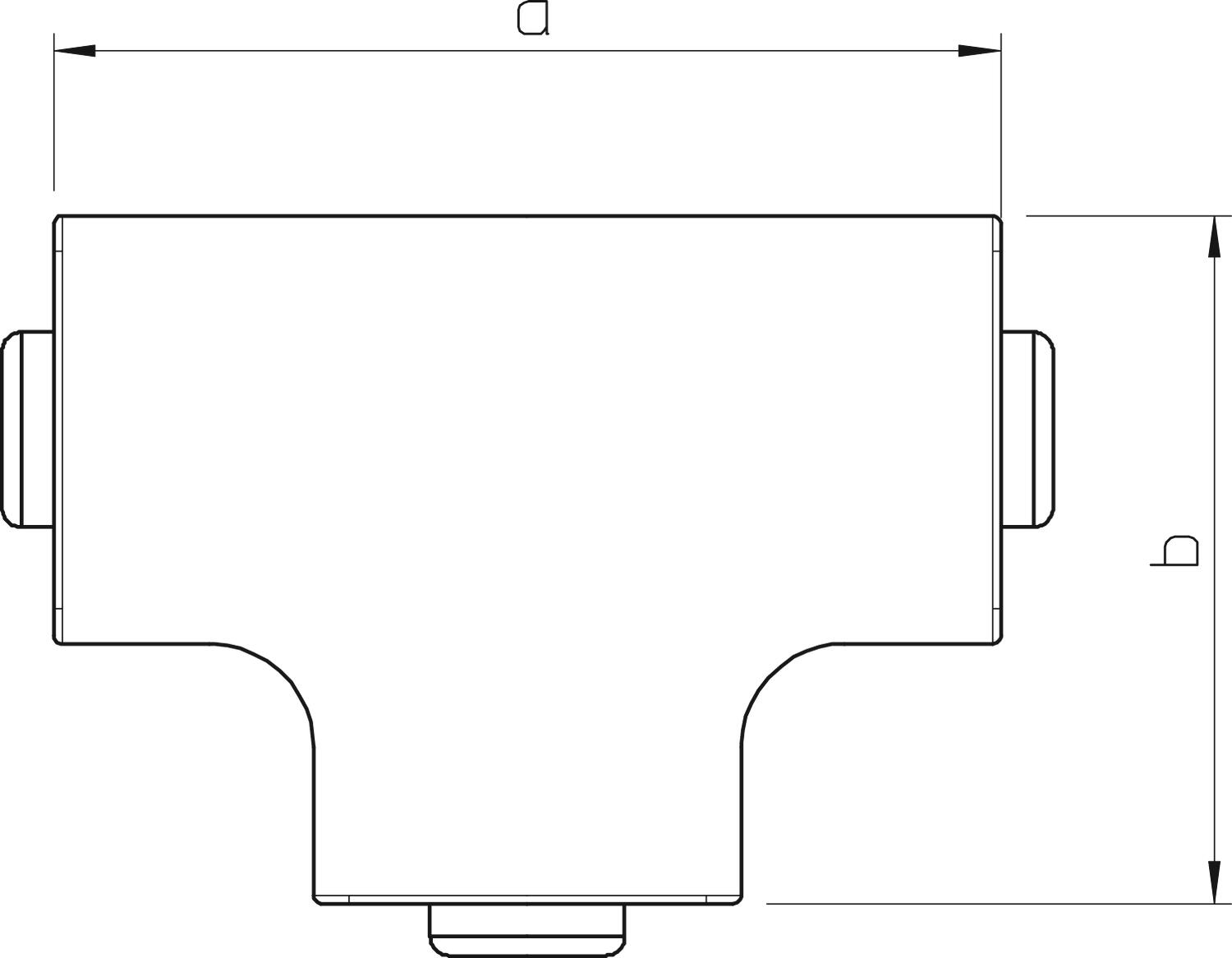

Dimension a 57 mm
Dimension b 39 mm
Fastening type Lockable
Halogen-free yes
Height 20 mm
Length 57 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Trunking depth 20 mm
Version for Hood fitting
Width 20 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-T20020RW 57 mm 39 mm Pure white; RAL 9010 6175694
4 piece
WDKH-T20020LGR 57 mm 39 mm Light grey; RAL 7035 6176072
4 piece
Downloads

Download

Download

EU declaration of conformity WDKH-T20020LGR / 6176072 , 0.13MB , pdf
Download
UK Declaration of Conformity WDKH-T20020LGR / 6176072 , 0.14MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
