T piece cover, for trunking type WDK 20050 93 | 73 | 50 | Cream; RAL 9001
morepic-1 morepic-2

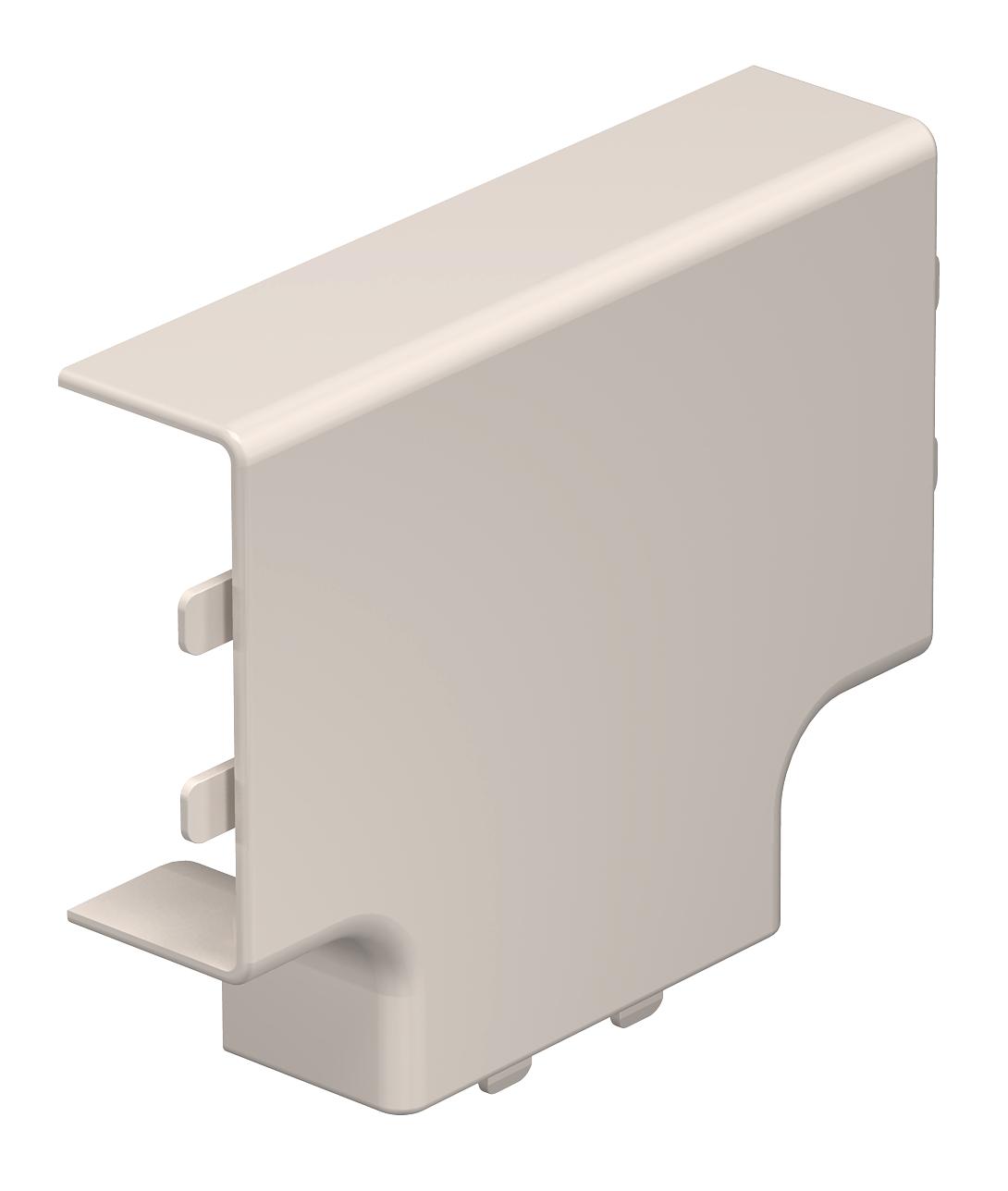

T piece cover, for trunking type WDK 20050

Item no. 6152384 | EAN 4012196507795

93 mm
73 mm
50 mm
Product description

Product description

T piece cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Antibacterial treatment no
Colour Cream; RAL 9001
Dimension 20x50mm
Fastening type Lockable
for duct dimension 20 x 50
Halogen-free no
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 20 mm
Version for Hood fitting

Dimensions

Dimension a 93 mm
Dimension b 73 mm
Dimension H 50 mm
Height 20 mm
Length 93 mm
Width 50 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HT20050CW 93 mm 73 mm 50 mm Cream; RAL 9001 6152384
4 piece
WDK HT20050RW 93 mm 73 mm 50 mm Pure white; RAL 9010 6154166
4 piece
