T piece cover, for trunking type WDK 15030 73 | 53 | | Pure white; RAL 9010
morepic-1 morepic-2

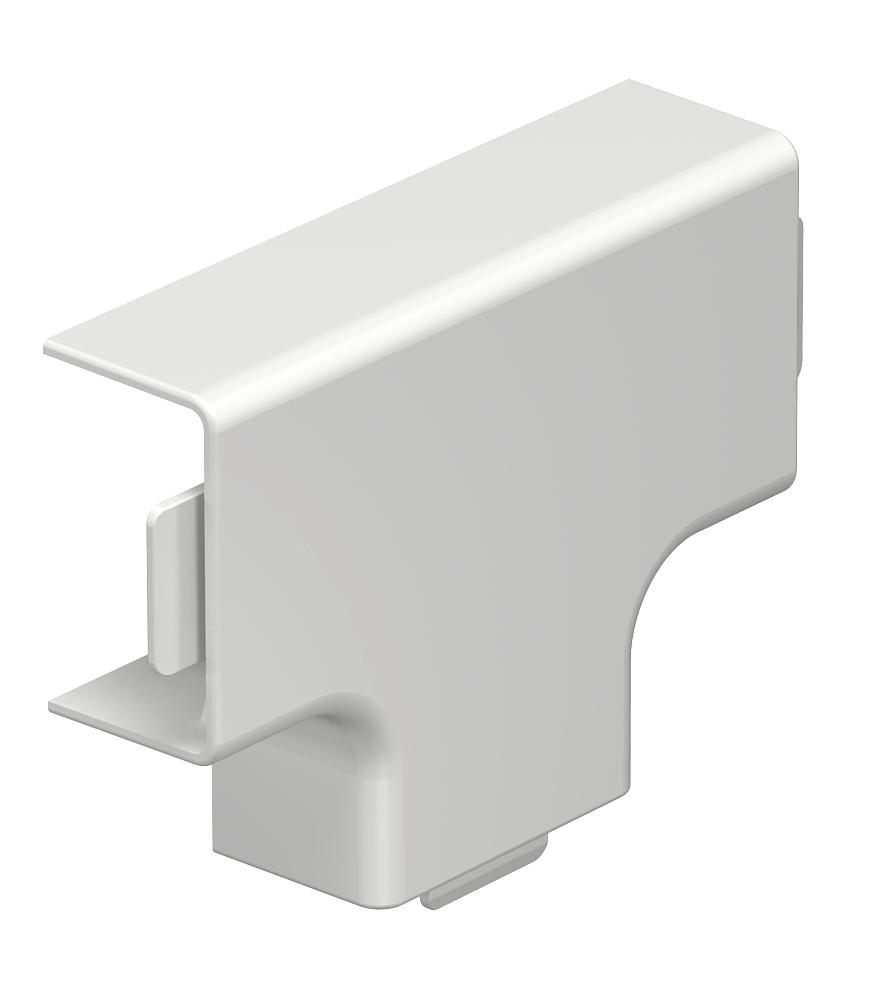

T piece cover, for trunking type WDK 15030

Item no. 6175690 | EAN 4012195934189

6175690 / WDKH-T15030RW
73 mm
53 mm
Pure white; RAL 9010
Product description
Product description
T and intersection cover for changing the direction of the halogen-free WDK-H trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 15x30mm

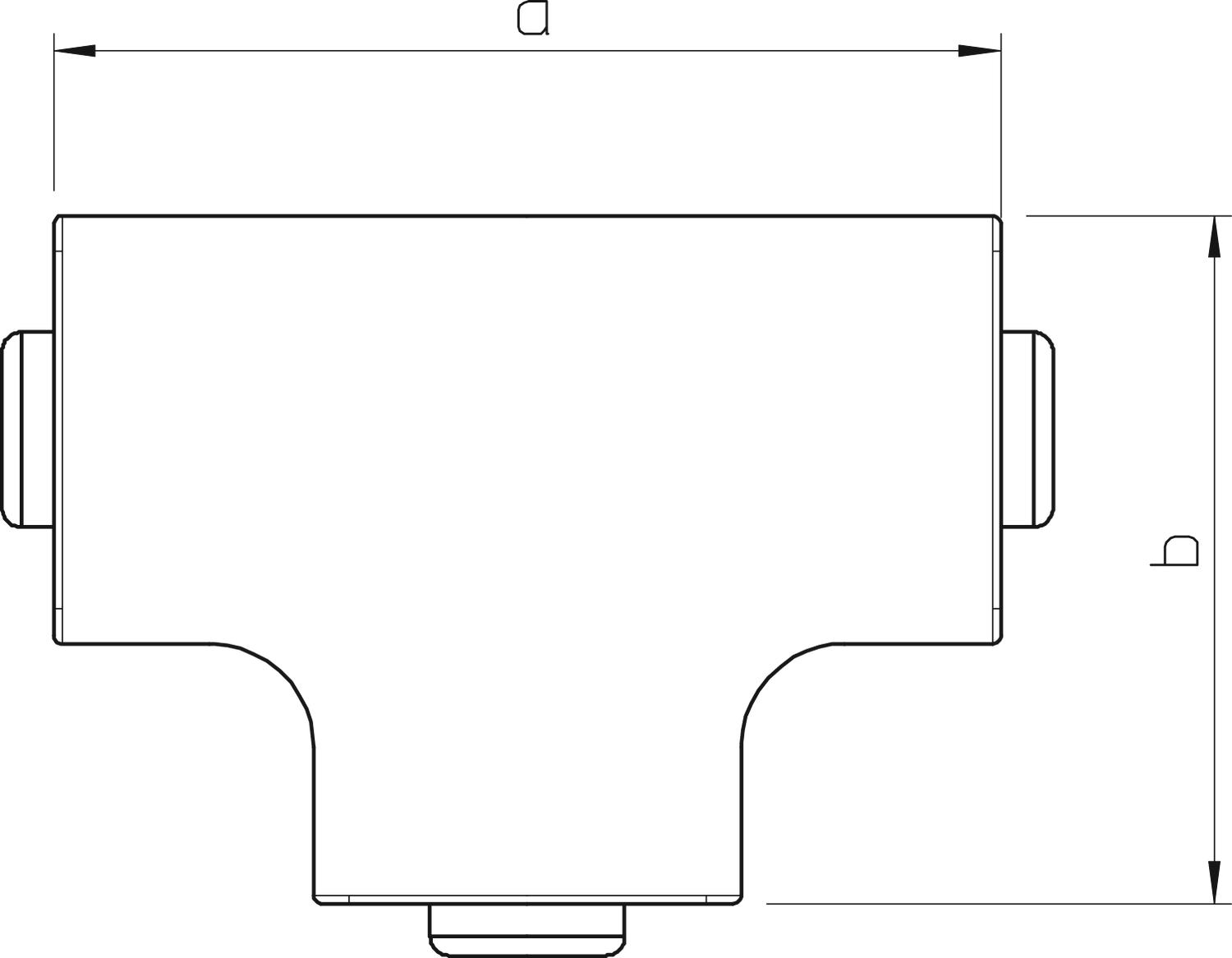

Dimension a 73 mm
Dimension b 53 mm
Fastening type Lockable
Halogen-free yes
Height 18,5 mm
Length 73 mm
Maintain electrical functions no
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK07.
Protective film no
Trunking depth 15 mm
Version for Hood fitting
Width 30 mm
All types

All types

Types Dimension a Dimension b Colour Item no. Quantity SSU
WDKH-T15030RW 73 mm 53 mm Pure white; RAL 9010 6175690
4 piece
Downloads

Download

Download

EU declaration of conformity WDKH-T15030RW / 6175690 , 0.13MB , pdf
Download
UK Declaration of Conformity WDKH-T15030RW / 6175690 , 0.14MB , pdf
Download
REACH Declaration of conformity WDKH-T15030RW / 6175690 , 0.27MB , pdf
Download
RoHS Declaration of conformity WDKH-T15030RW / 6175690 , 0.28MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
