T piece cover, for trunking type WDK 10030 55 | 44 | 30 | Pure white; RAL 9010
morepic-1 morepic-2

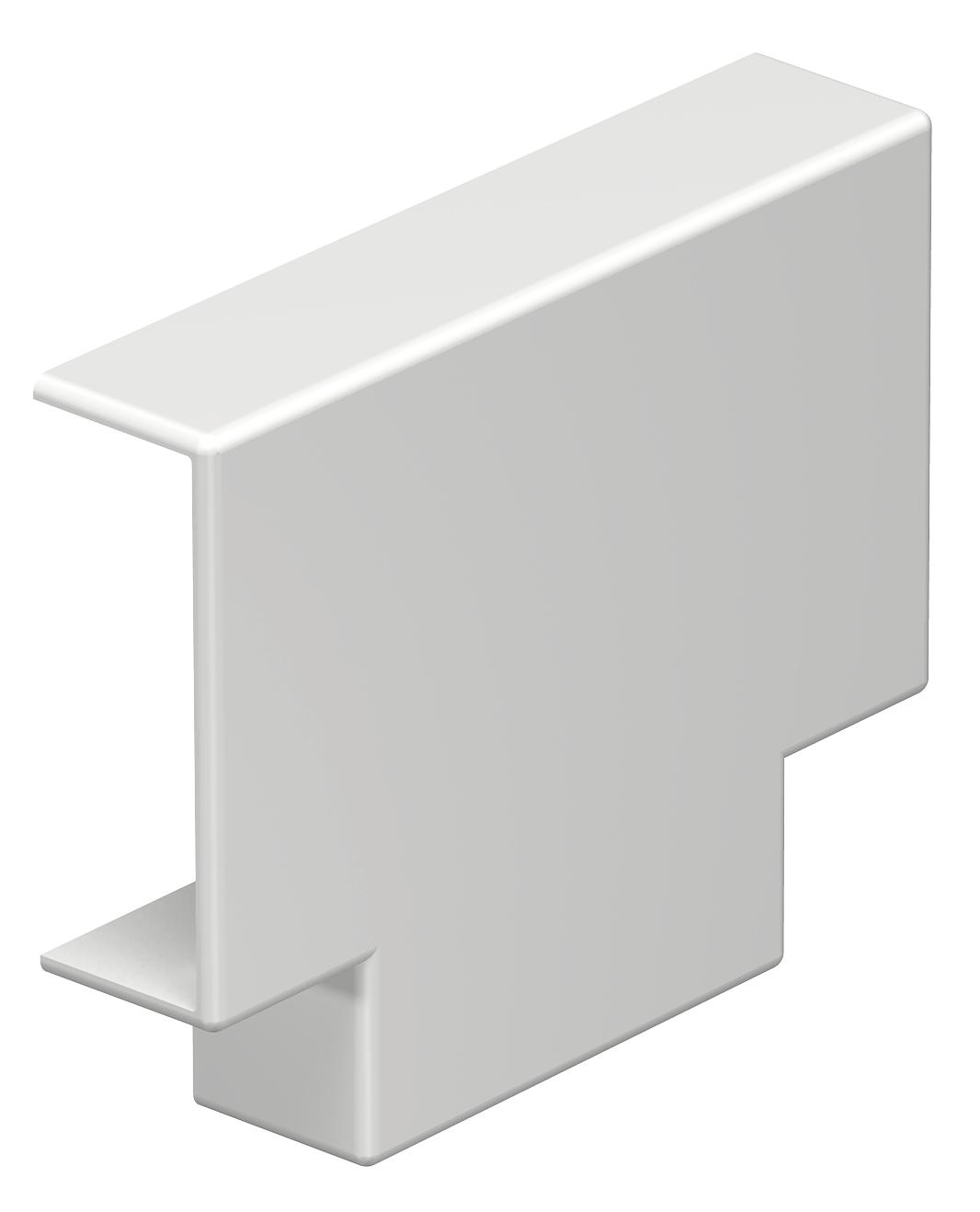

T piece cover, for trunking type WDK 10030

Item no. 6154123 | EAN 4012196491476

55 mm
44 mm
30 mm
Product description
Product description
T piece cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Colour Pure white; RAL 9010
Dimension 10x30mm
Dimension a 55 mm
Dimension b 44 mm
Dimension H 30 mm
Fastening type Lockable
for duct dimension 10 x 30
Halogen-free no
Height 10 mm
Length 55 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Trunking depth 10 mm
Version for Hood fitting
Width 30 mm
All types

All types

Types Dimension a Dimension b Dimension H Colour Item no. Quantity SSU
WDK HT10030CW 55 mm 44 mm 30 mm Cream; RAL 9001 6152317
4 piece
WDK HT10030RW 55 mm 44 mm 30 mm Pure white; RAL 9010 6154123
4 piece
Downloads

Download

Download

EU declaration of conformity WDK HT10030RW / 6154123 , 0.13MB , pdf
Download
UK Declaration of Conformity WDK HT10030RW / 6154123 , 0.14MB , pdf
Download
REACH Declaration of conformity WDK HT10030RW / 6154123 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HT10030RW / 6154123 , 0.12MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
