- Product description
-
Product description

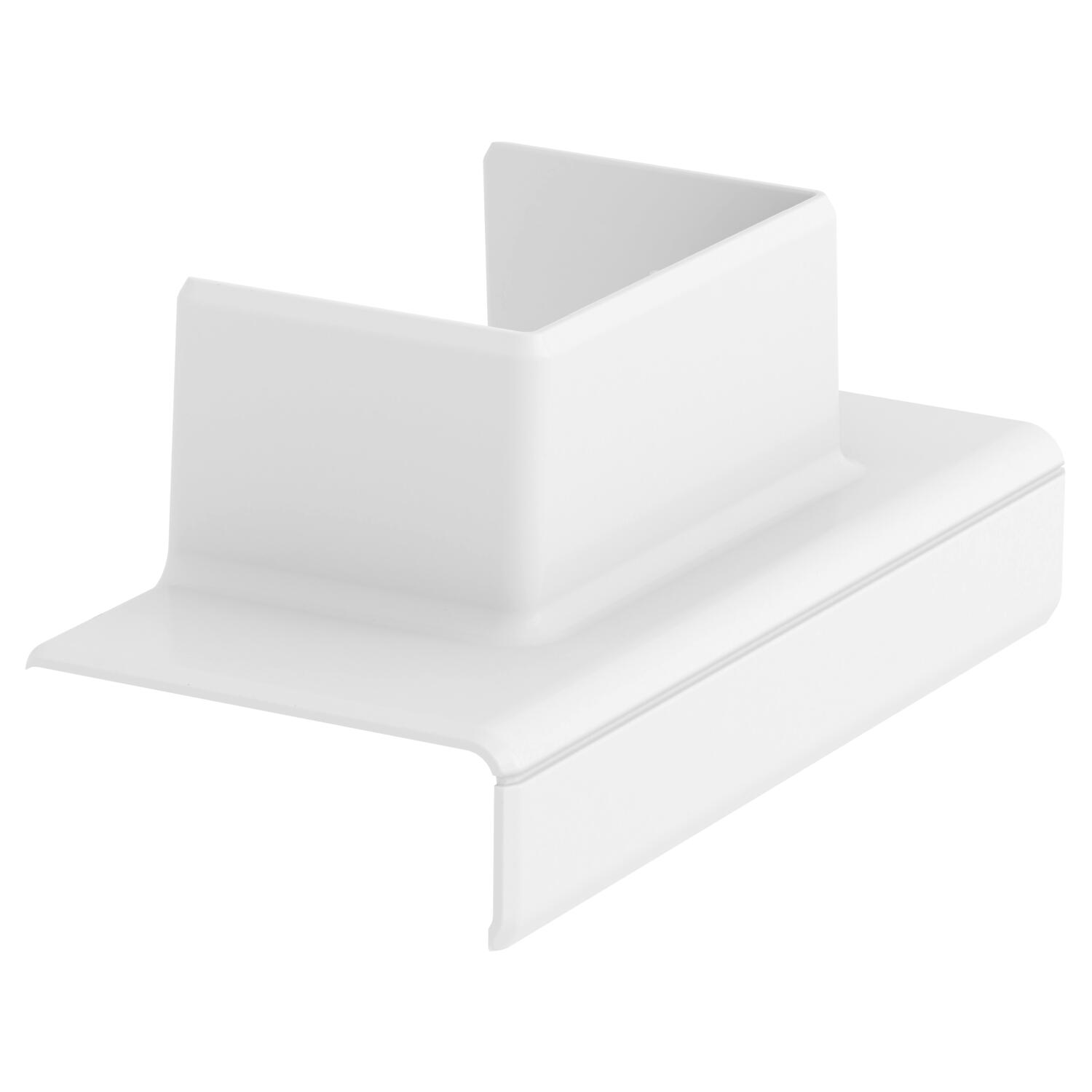

T piece adapter to create a 90° junction from the system size Rapid 45-2 53130 to a cable trunking WDK40060.
- Technical data
-
Technical data

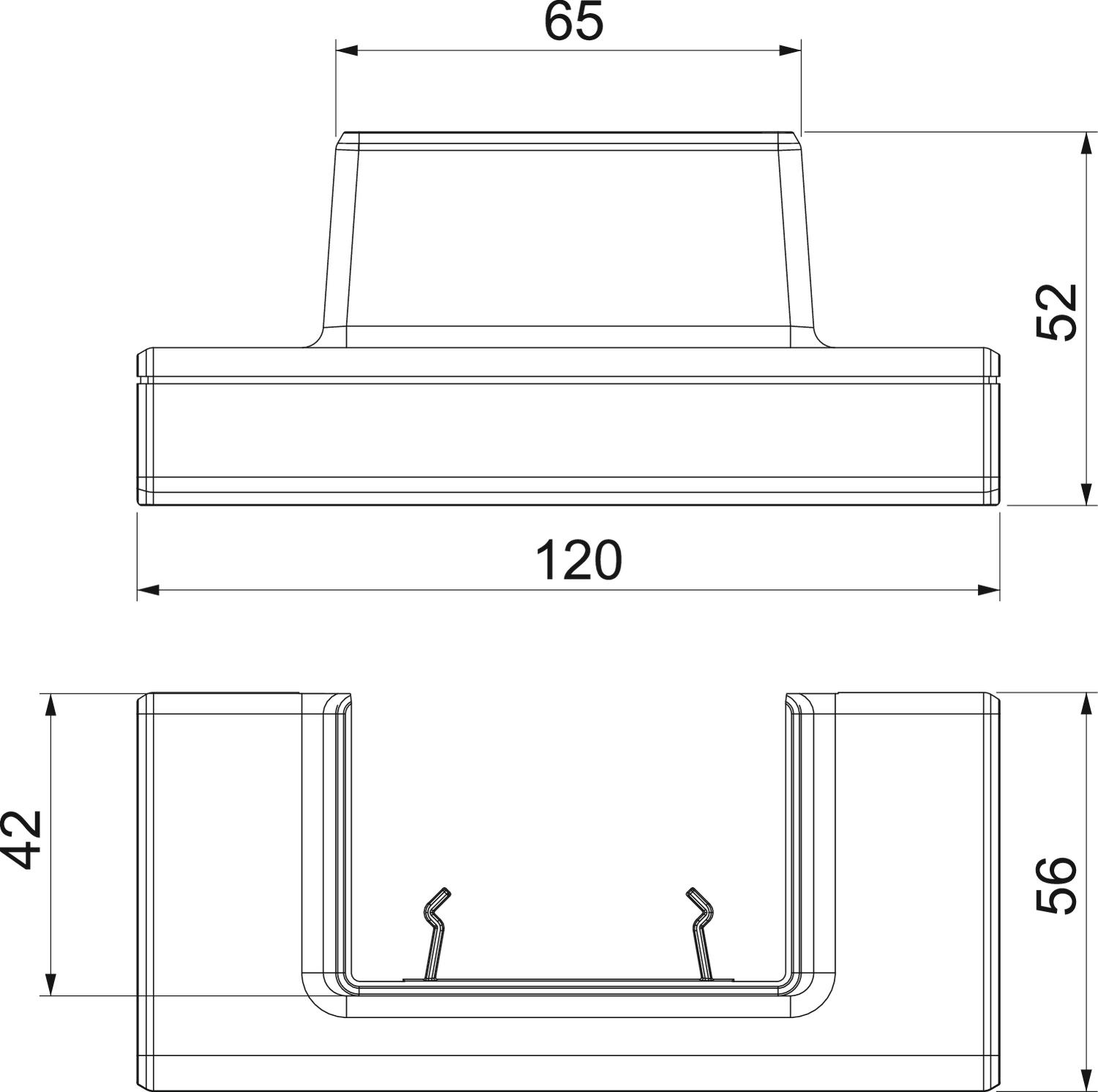

Antibacterial treatment no Cable retaining clip no Colour Pure white; RAL 9010 Cover mounting type Cross-over Dimension 120x52x56 Duct connector no for duct width 130 mm for trunking height 53 mm Halogen-free yes Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base no Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Protective film no Symmetrical no Version for Hood fitting Width of the branch 60 mm Dimensions
Height 55,5 mm Length 120 mm Width 52 mm - All types
- Downloads
-
Data sheet GK-TA WDK 2RW / 6113320 , 0.28MB , pdfDeclaration of conformity GK-TA WDK 2RW / 6113320 , 0.13MB , pdfREACH Declaration of conformity GK-TA WDK 2RW / 6113320 , 0.27MB , pdfRoHS Declaration of conformity GK-TA WDK 2RW / 6113320 , 0.28MB , pdfMounting instructions Mounting instructions, T piece adapter GK-TA WDK..., GK-TR... , 0.14MB , pdf
