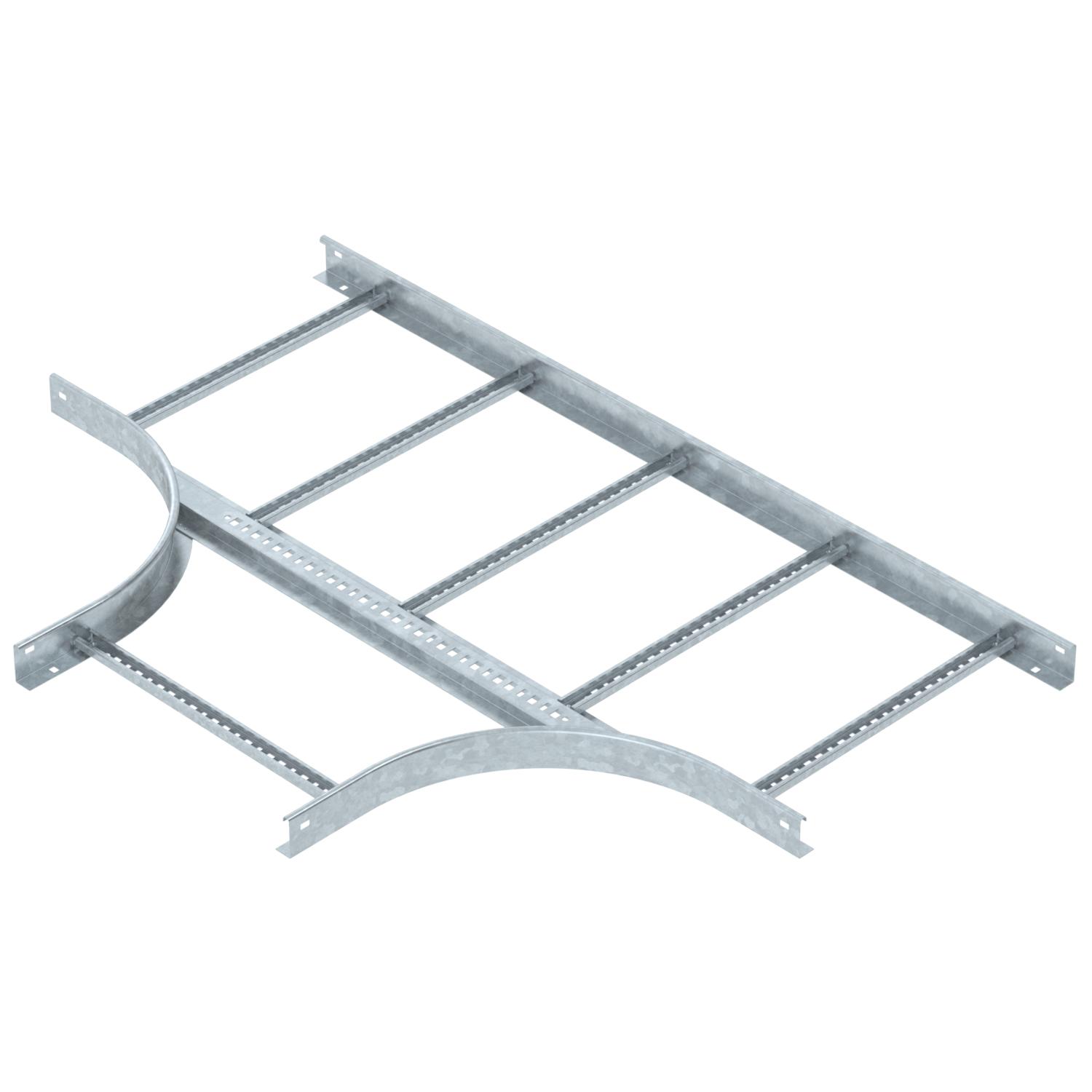

T piece 60 FT
Item no. 6225236 | EAN 4012196444175
- Product description
-
Product descriptionT piece, horizontal, with welded rung for all cable ladder types of 60 mm side height.
-
- Technical data
-
Technical data

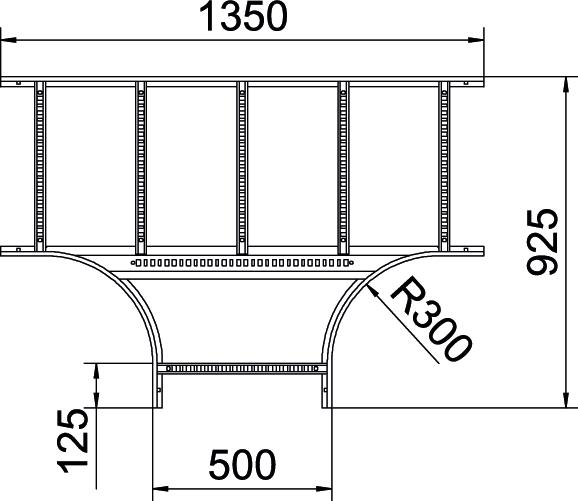

Colour zinc Connector version Without connectors Dimension 60x500 Dimension B 500 mm Dimension R 300 mm Height 60 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 500 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 60 FT 6208843 10 piece - Downloads
-
Data sheet LT 650 R3 FT / 6225236 , 0.21MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LT 650 R3 FT / 6225236 , 0.10MB , pdfUK Declaration of Conformity LT 650 R3 FT / 6225236 , 0.09MB , pdfREACH Declaration of conformity LT 650 R3 FT / 6225236 , 0.12MB , pdfRoHS Declaration of conformity LT 650 R3 FT / 6225236 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
