T piece 60 FS
Item no. 6225216 | EAN 4012196444120
- Product description
-
Product description

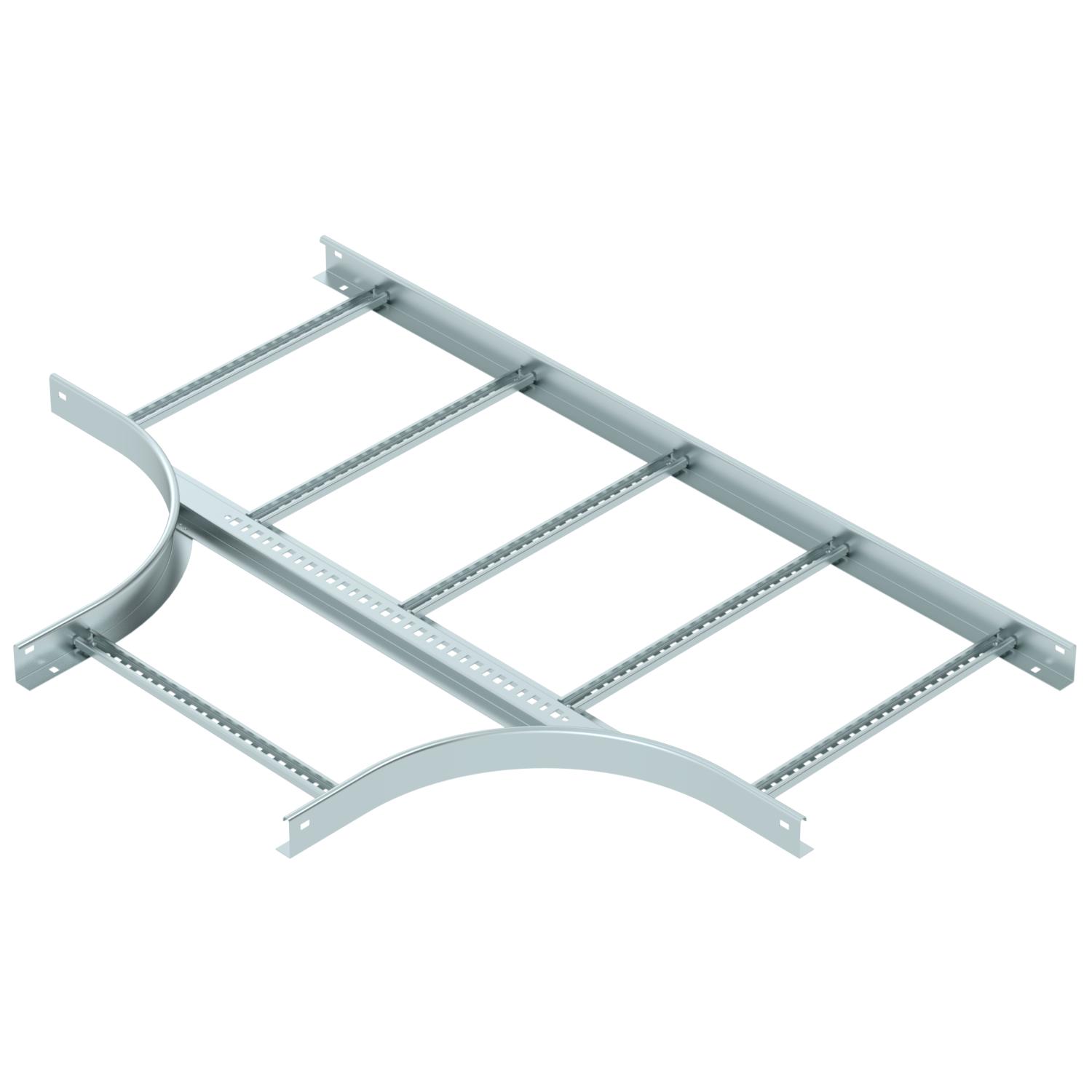

T piece, horizontal, with welded rung for all cable ladder types of 60 mm side height.
-
- Technical data
-
Technical data

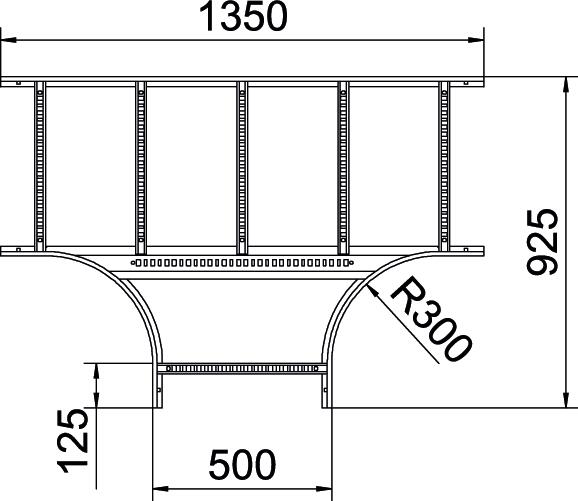

Connector version Without connectors Dimension 60x500 Dimension B 500 mm Dimension R 300 mm Height 60 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Strip galvanized Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 500 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FS
LVG 60 FS 6208840 10 piece - Downloads
-
Data sheet LT 650 R3 FS / 6225216 , 0.21MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LT 650 R3 FS / 6225216 , 0.10MB , pdfUK Declaration of Conformity LT 650 R3 FS / 6225216 , 0.09MB , pdfREACH Declaration of conformity LT 650 R3 FS / 6225216 , 0.12MB , pdfRoHS Declaration of conformity LT 650 R3 FS / 6225216 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
