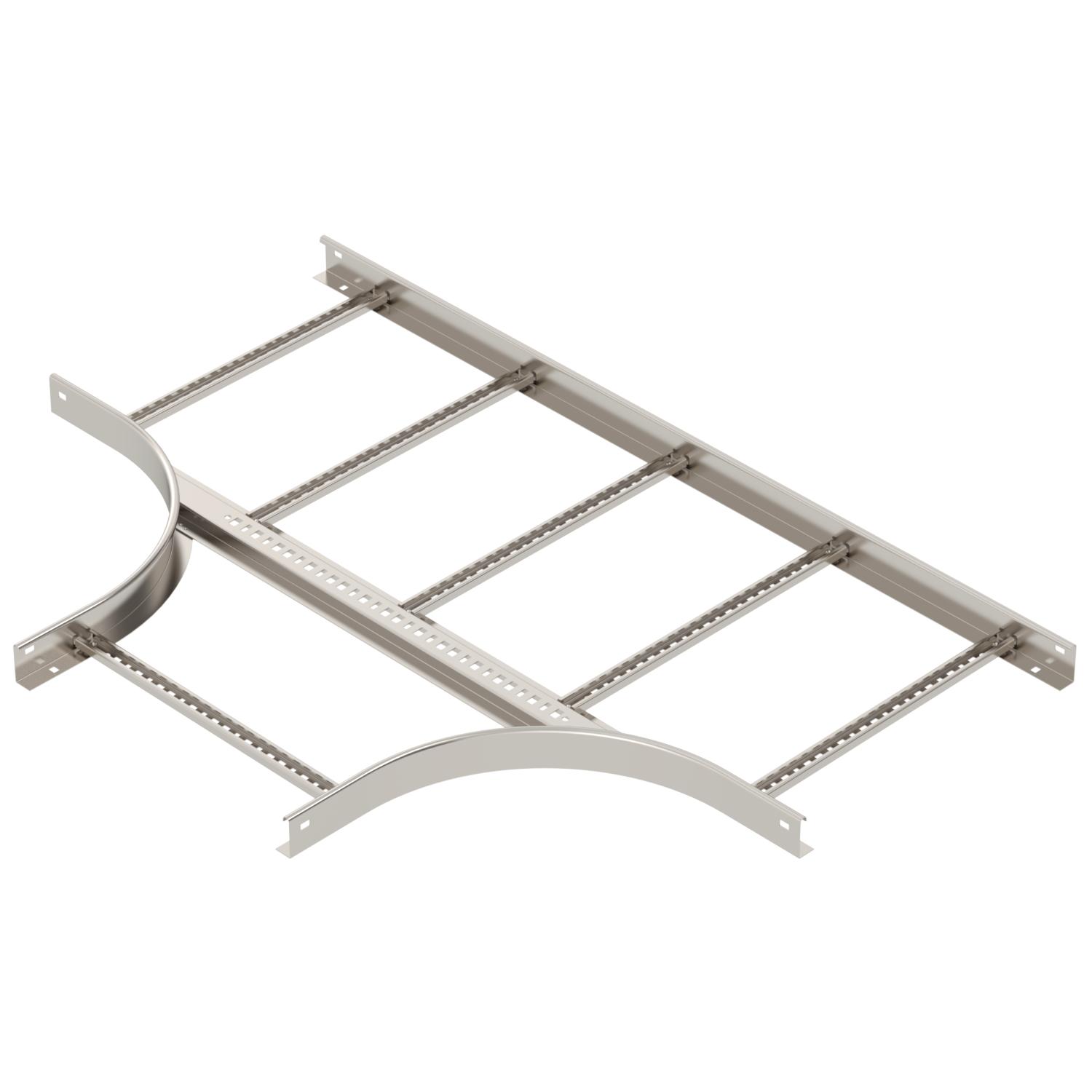

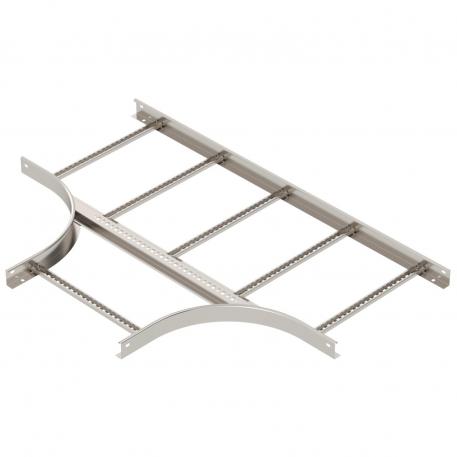

T piece 60 A4 500 | 1.5

morepic-1

morepic-2

T piece 60 A4

Item no. 6225276 | EAN 4012196444274

Item no. / Types

Width

Rail thickness	1.5 mm

Product description

Product description

T piece, horizontal, with welded rung for all cable ladder types of 60 mm side height.

Technical data

Technical data

Connector version	Without connectors
Dimension	60x500
Maintain electrical functions	no
Material	Stainless steel
Rail thickness	1,5 mm
Rustproof steel, pickled	no

Side rail version	Flat profile
Surface	Bright, treated
Type	Exit symmetrical
Version of the rungs	Profile unperforated
Wide-span version	no

Dimensions

Dimension B	500 mm
Dimension R	300 mm

Height	60 mm
Width	500 mm

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
LT 620 R3 A4	200 mm	1.5 mm	6225270	piece	1 piece
LT 630 R3 A4	300 mm	1.5 mm	6225272	piece	1 piece
LT 640 R3 A4	400 mm	1.5 mm	6225274	piece	1 piece
LT 650 R3 A4	500 mm	1.5 mm	6225276	piece	1 piece
LT 660 R3 A4	600 mm	1.5 mm	6225278	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Straight connector A4	LVG 60 A4	6208835	piece	10 piece

Downloads

Data sheet LT 650 R3 A4 / 6225276 , 0.23MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LT 650 R3 A4 / 6225276 , 0.15MB , pdf

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

Product graphic LT 650 R3 A4 / 6225276, 70.56 kB, jpg

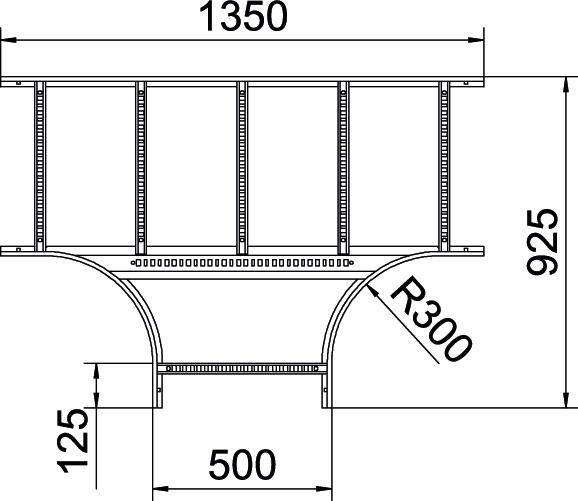

Scale drawing LT 650 R3 A4 / 6225276, 89.68 kB, jpg

LT 650 R3 A4 / 6225276
