T piece 60 A2 400 | 1.5

morepic-1

morepic-2

T piece 60 A2

Item no. 6225254 | EAN 4012196444212

Item no. / Types

Width

Rail thickness	1.5 mm

Product description

Product description

T piece, horizontal, with welded rung for all cable ladder types of 60 mm side height.

Technical data

Technical data

Connector version	Without connectors
Dimension	60x400
Dimension B	400 mm
Dimension R	300 mm
Height	60 mm
Maintain electrical functions	no
Material	Stainless steel
Rail thickness	1,5 mm

Rustproof steel, pickled	no
Side rail version	Flat profile
Surface	Bright, treated
Type	Exit symmetrical
Version of the rungs	Profile unperforated
Wide-span version	no
Width	400 mm

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
LT 620 R3 A2	200 mm	1.5 mm	6225250	piece	1 piece
LT 630 R3 A2	300 mm	1.5 mm	6225252	piece	1 piece
LT 640 R3 A2	400 mm	1.5 mm	6225254	piece	1 piece
LT 650 R3 A2	500 mm	1.5 mm	6225256	piece	1 piece
LT 660 R3 A2	600 mm	1.5 mm	6225258	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Straight connector A2	LVG 60 A2	6208846	piece	10 piece

Downloads

Data sheet LT 640 R3 A2 / 6225254 , 0.22MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LT 640 R3 A2 / 6225254 , 0.10MB , pdf

UK Declaration of Conformity LT 640 R3 A2 / 6225254 , 0.09MB , pdf

Download

REACH Declaration of conformity LT 640 R3 A2 / 6225254 , 0.12MB , pdf

Download

RoHS Declaration of conformity LT 640 R3 A2 / 6225254 , 0.12MB , pdf

Download

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

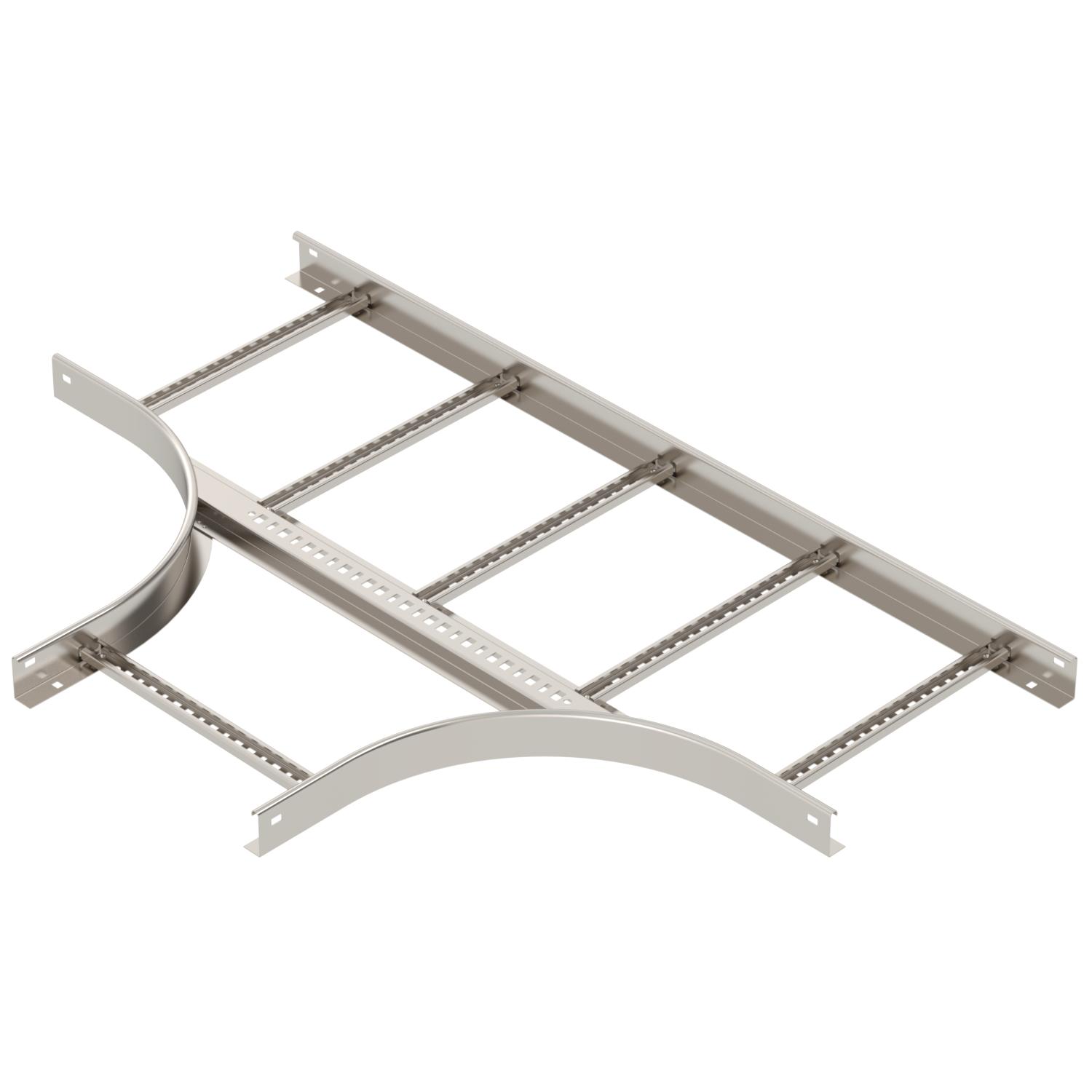

Product graphic LT 640 R3 A2 / 6225254, 71.83 kB, jpg

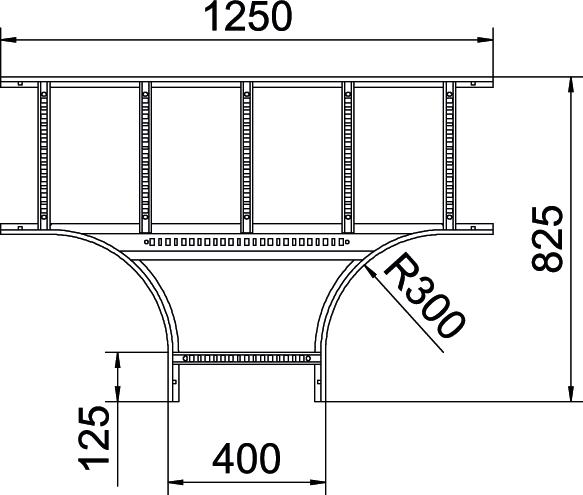

Scale drawing LT 640 R3 A2 / 6225254, 32.04 kB, jpg

LT 640 R3 A2 / 6225254
