T piece 110 FT
Item no. 6225360 | EAN 4012196444601
- Product description
-
Product description

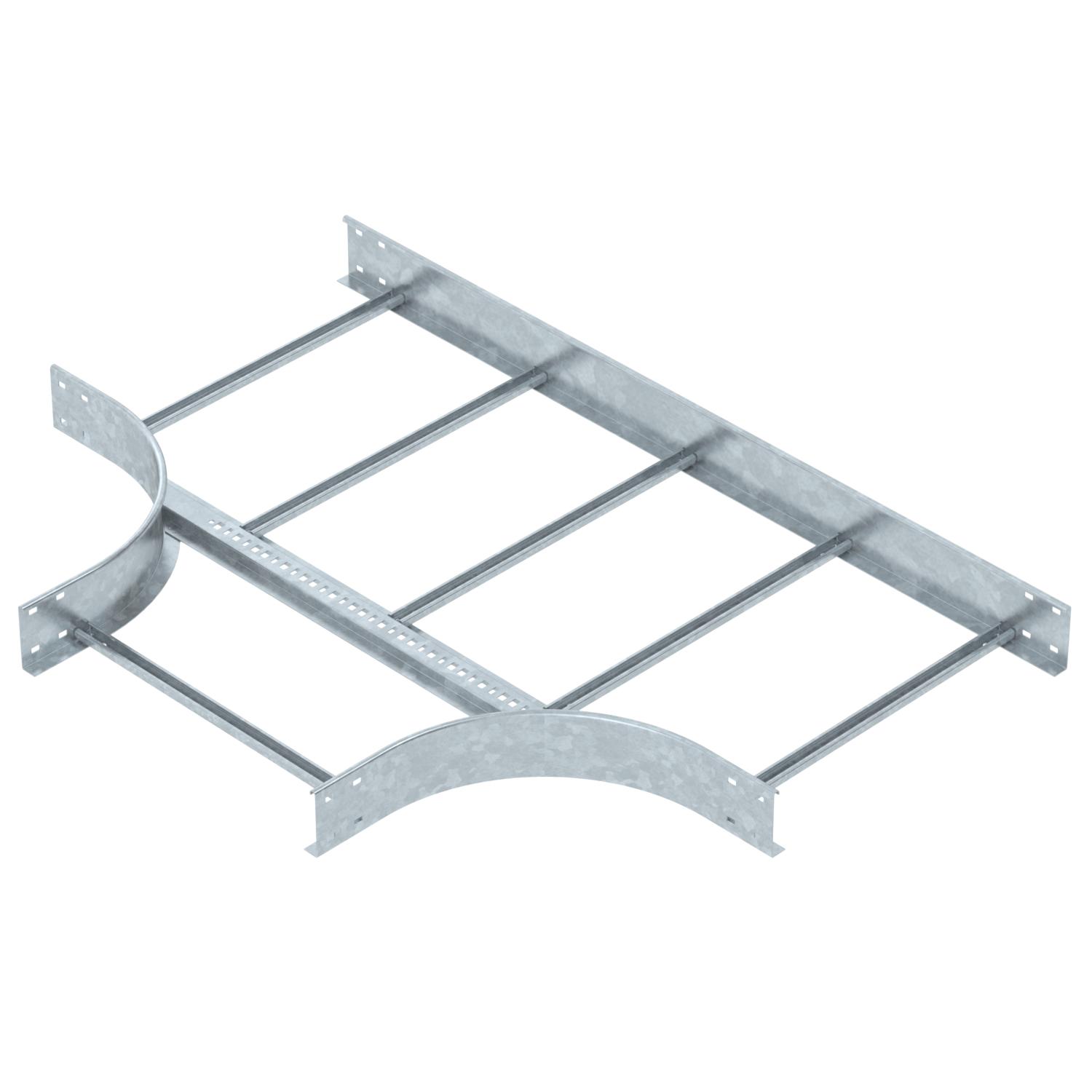

T piece, horizontal, with welded rung for all cable ladder types of 110 mm side height.
-
- Technical data
-
Technical data

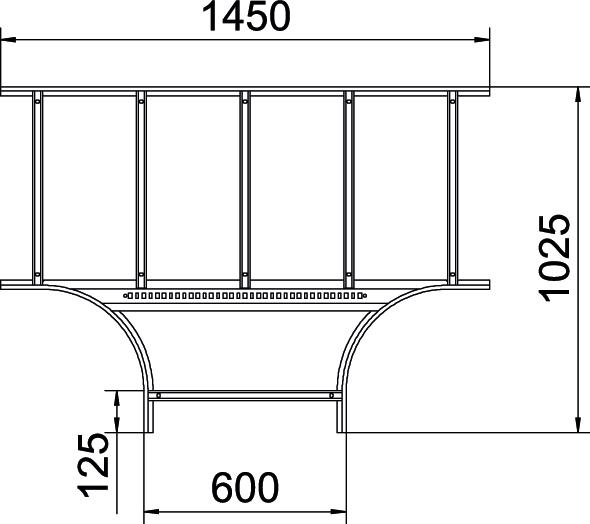

Connector version Without connectors Dimension 110x600 Dimension B 600 mm Dimension R 300 mm Height 110 mm Maintain electrical functions no Material Steel Rail thickness 2 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Type Exit symmetrical Version of the rungs Profile unperforated Wide-span version no Width 600 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 110 FT 6216548 10 piece - Downloads
-
Data sheet SLT 1160 R3 FT / 6225360 , 0.21MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity SLT 1160 R3 FT / 6225360 , 0.10MB , pdfUK Declaration of Conformity SLT 1160 R3 FT / 6225360 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
