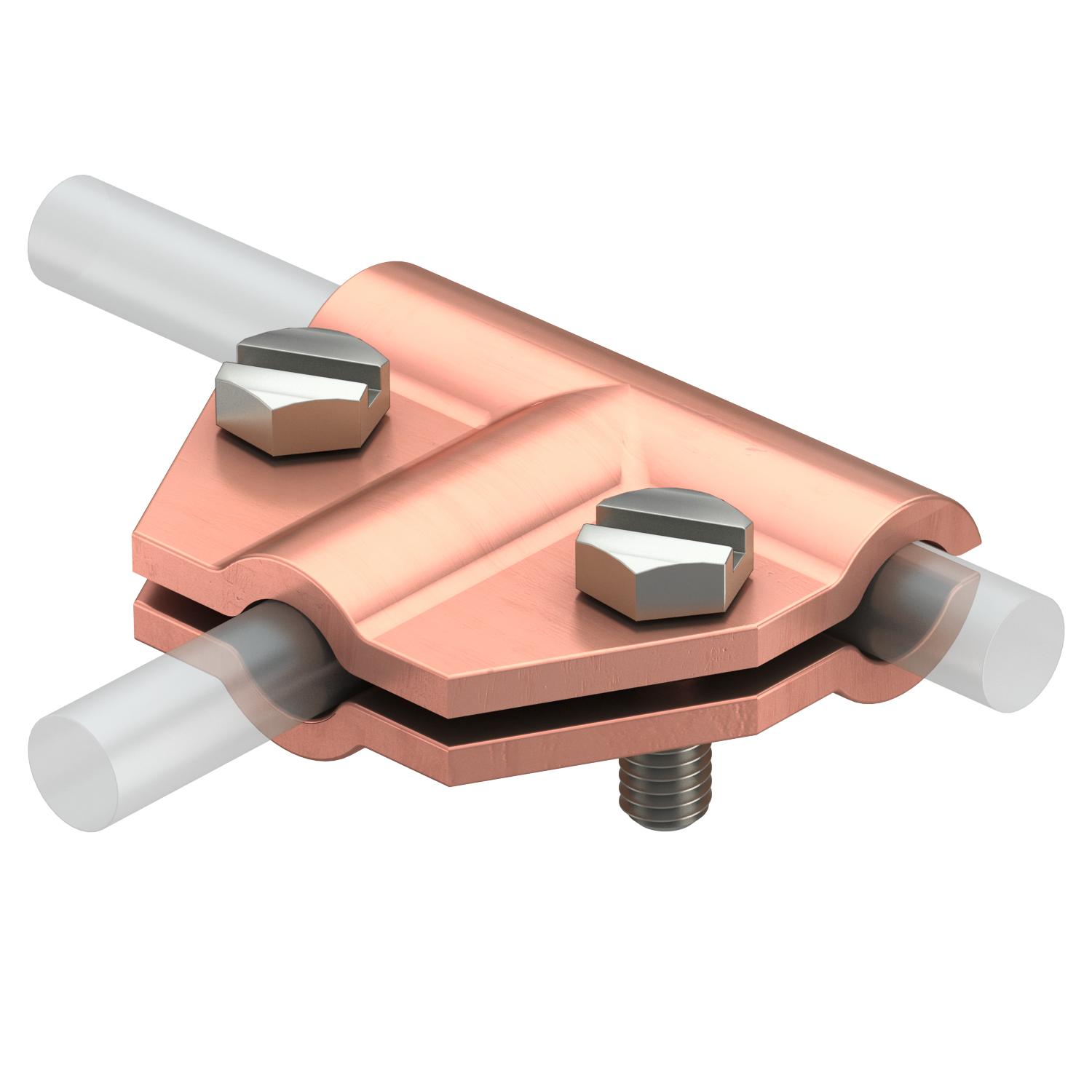

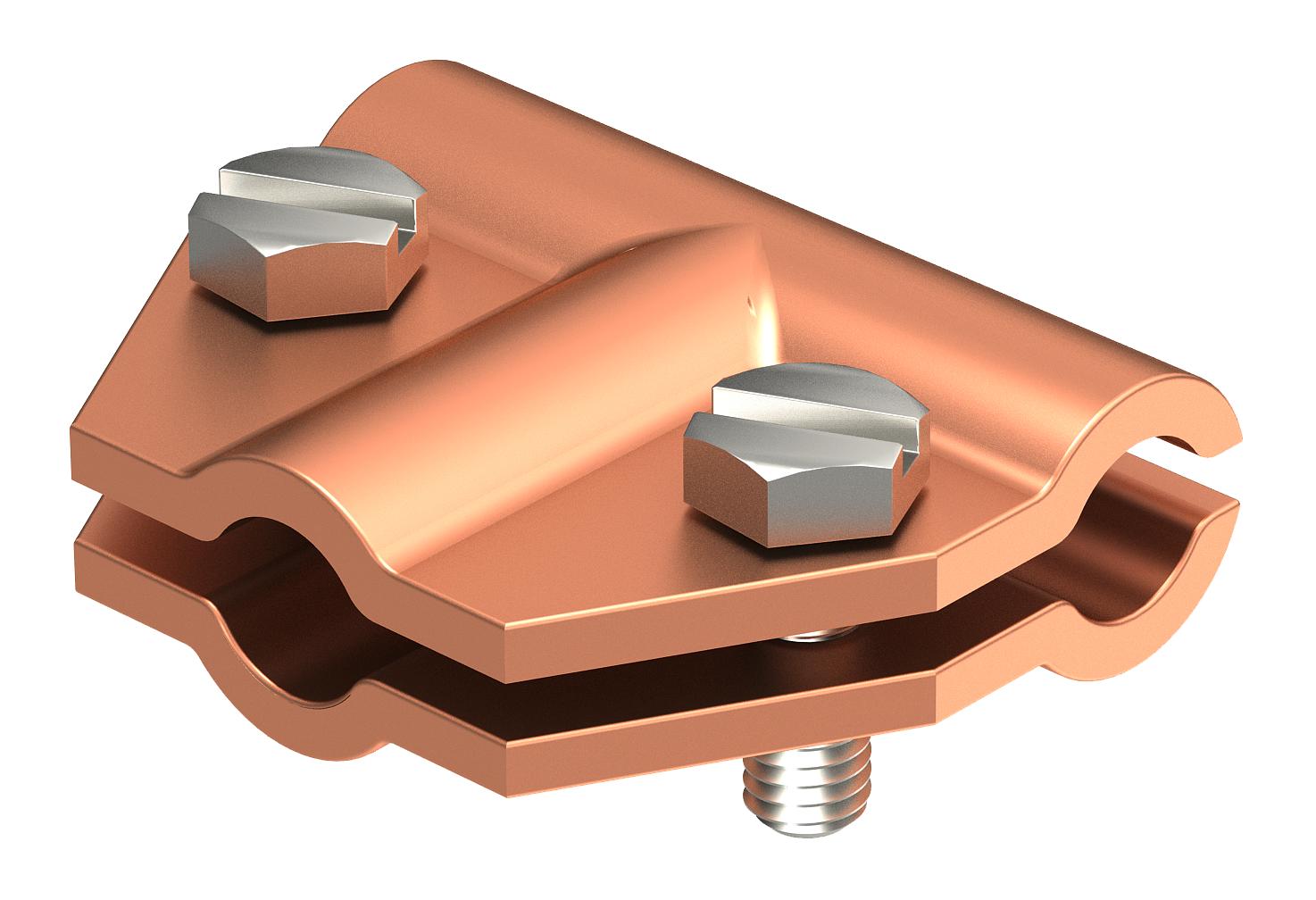

T connector Rd 8−10 mm Cu
Item no. 5311152 | EAN 4012195417439
- Product description
-
Product description
• With 2 hexagonal bolts M6 x 16 (VA)
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material Copper Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector T connector Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 245 8-10 CU / 5311152 , 0.17MB , pdfDeclaration of conformity 245 8-10 CU / 5311152 , 0.06MB , pdf
