T connector 40 | 20 | 65

morepic-1

morepic-2

T connector

Item no. 5408156 | EAN 4012195681496

Item no. / Types

Dimension d min.

Dimension d Ø

Dimension L

Product description

Product description

• T connector for installation of insulating rods

• With M10 bolts

Technical data

Technical data

Connection	Round conductor
Dimension	20mm
Dimension d min.	40 mm
Dimension d Ø	20 mm

Dimension L	65 mm
Length	65 mm
Material	Aluminium

All types

All types

Types	Dimension d min.	Dimension d Ø	Dimension L	Item no.	Quantity	SSU
101 IT	40 mm	20 mm	65 mm	5408156	piece	10 piece
101 IT-16	30 mm	16 mm	60 mm	5408158	piece	10 piece

Downloads

Data sheet 101 IT / 5408156 , 0.11MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Declaration of conformity 101 IT / 5408156 , 0.06MB , pdf

Download

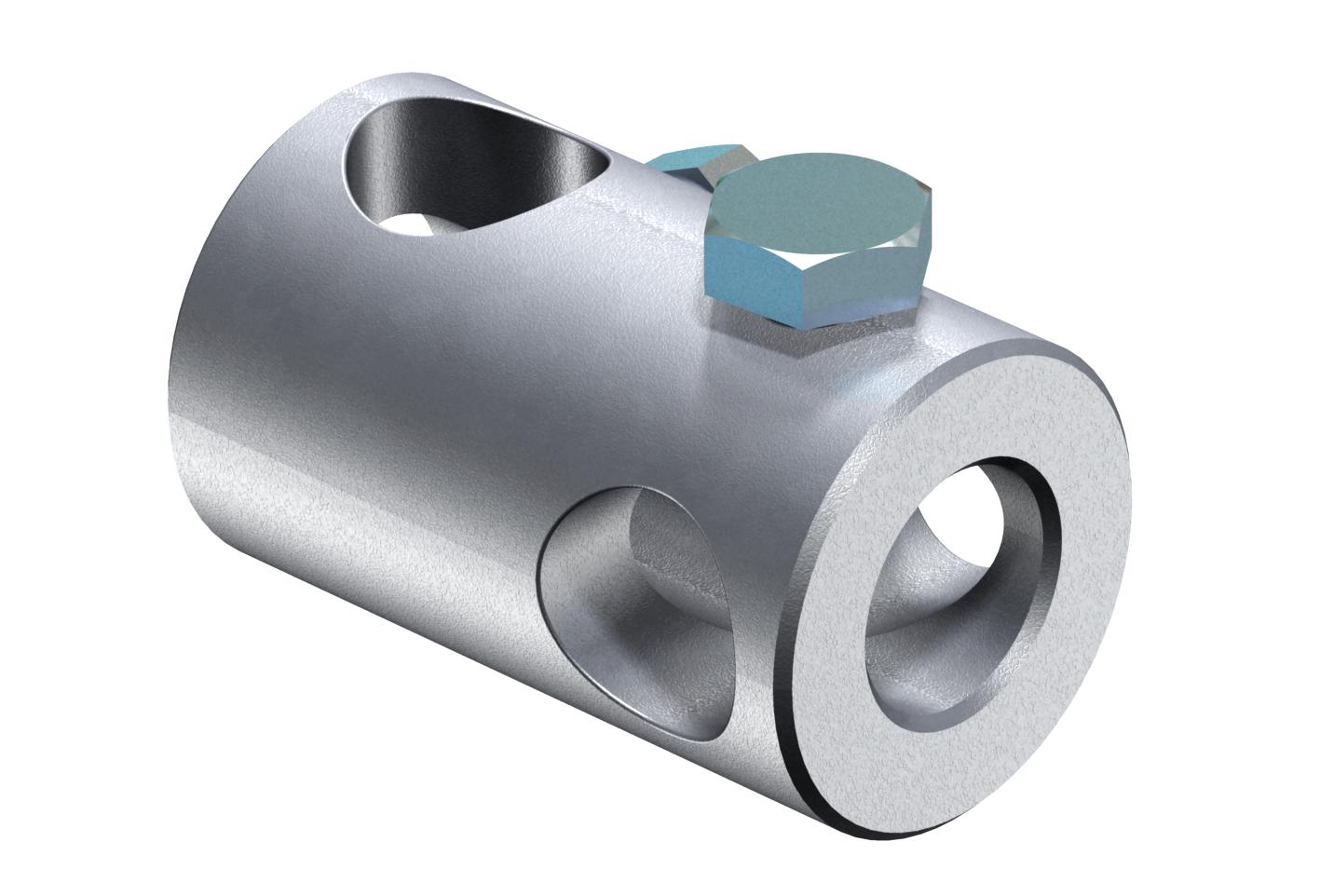

Product graphic 101 IT / 5408156, 88.76 kB, jpg

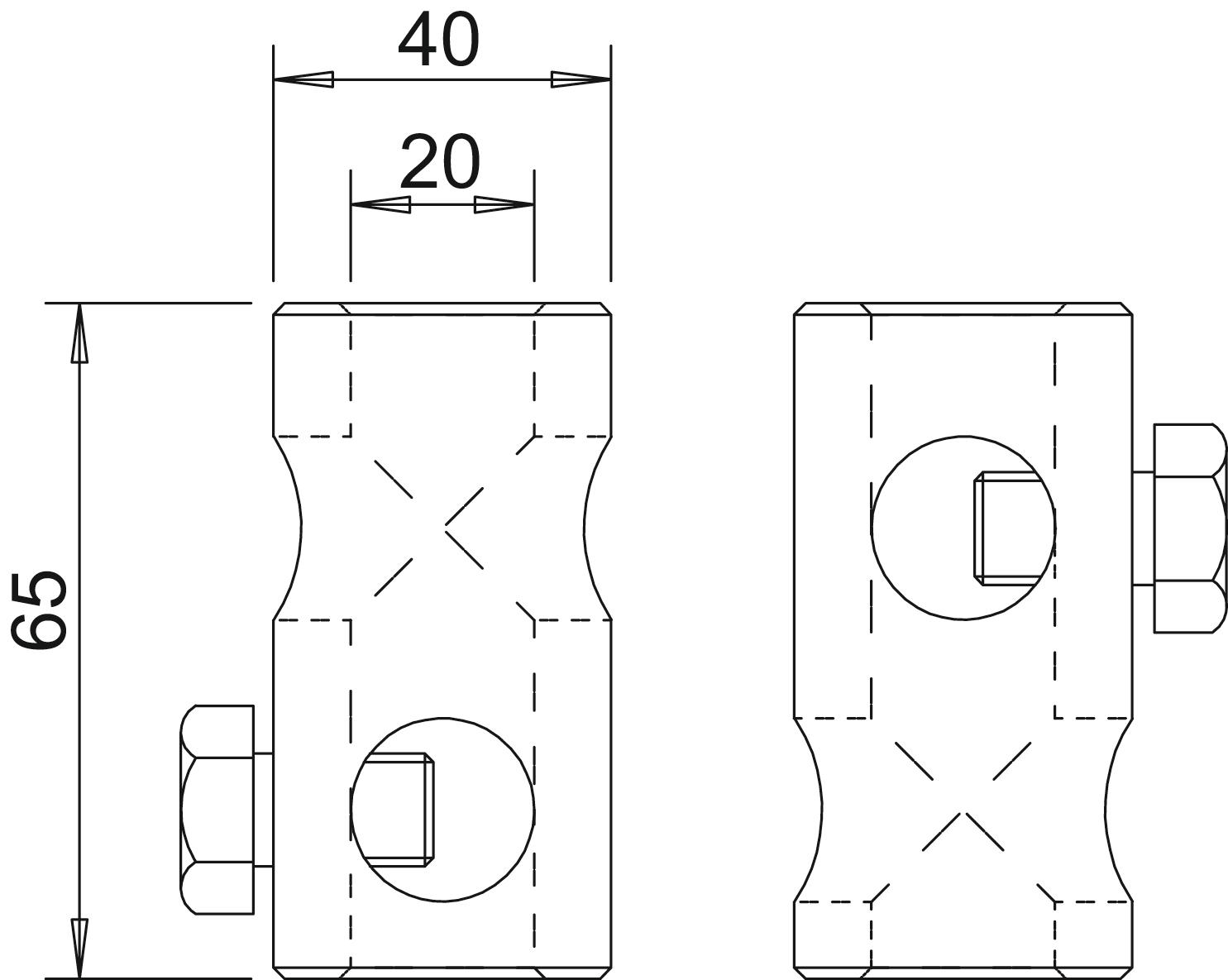

Scale drawing 101 IT / 5408156, 69.69 kB, jpg

101 IT / 5408156
