- Product description
-
Product description

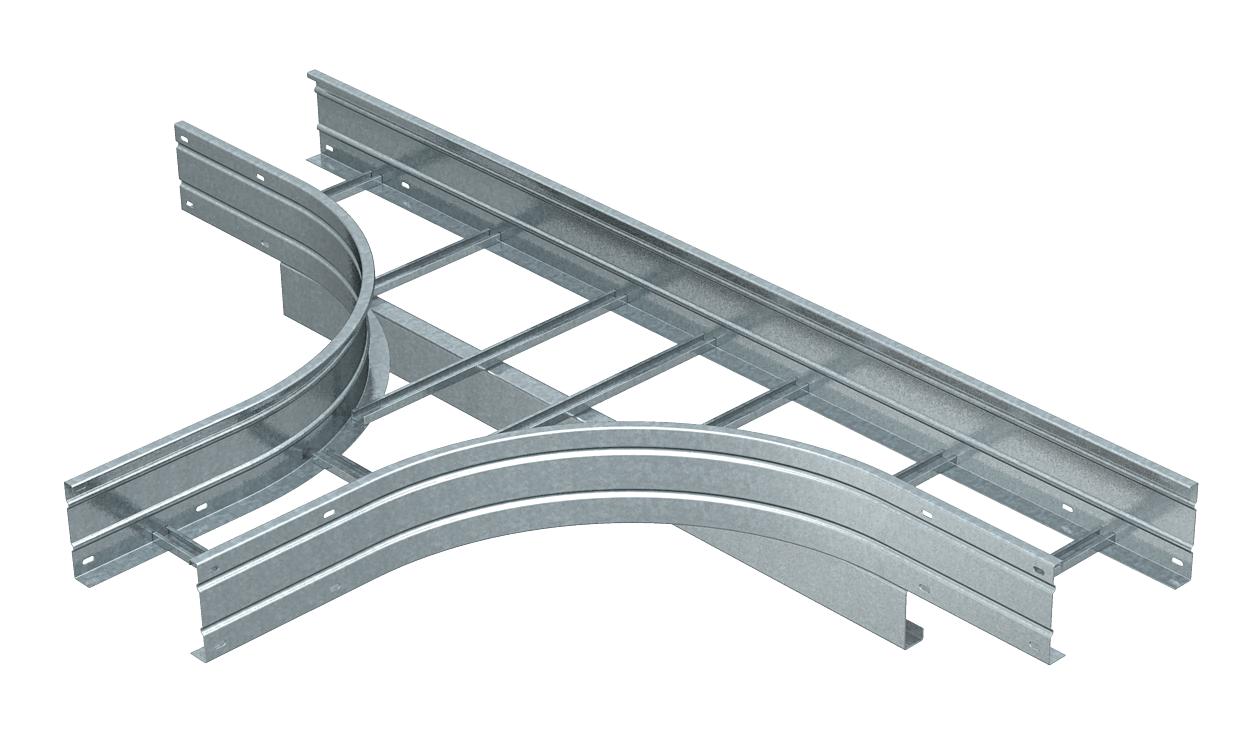

Horizontal T branch piece, for all wide span cable ladders of 160 mm side height.
- Technical data
-
Technical data

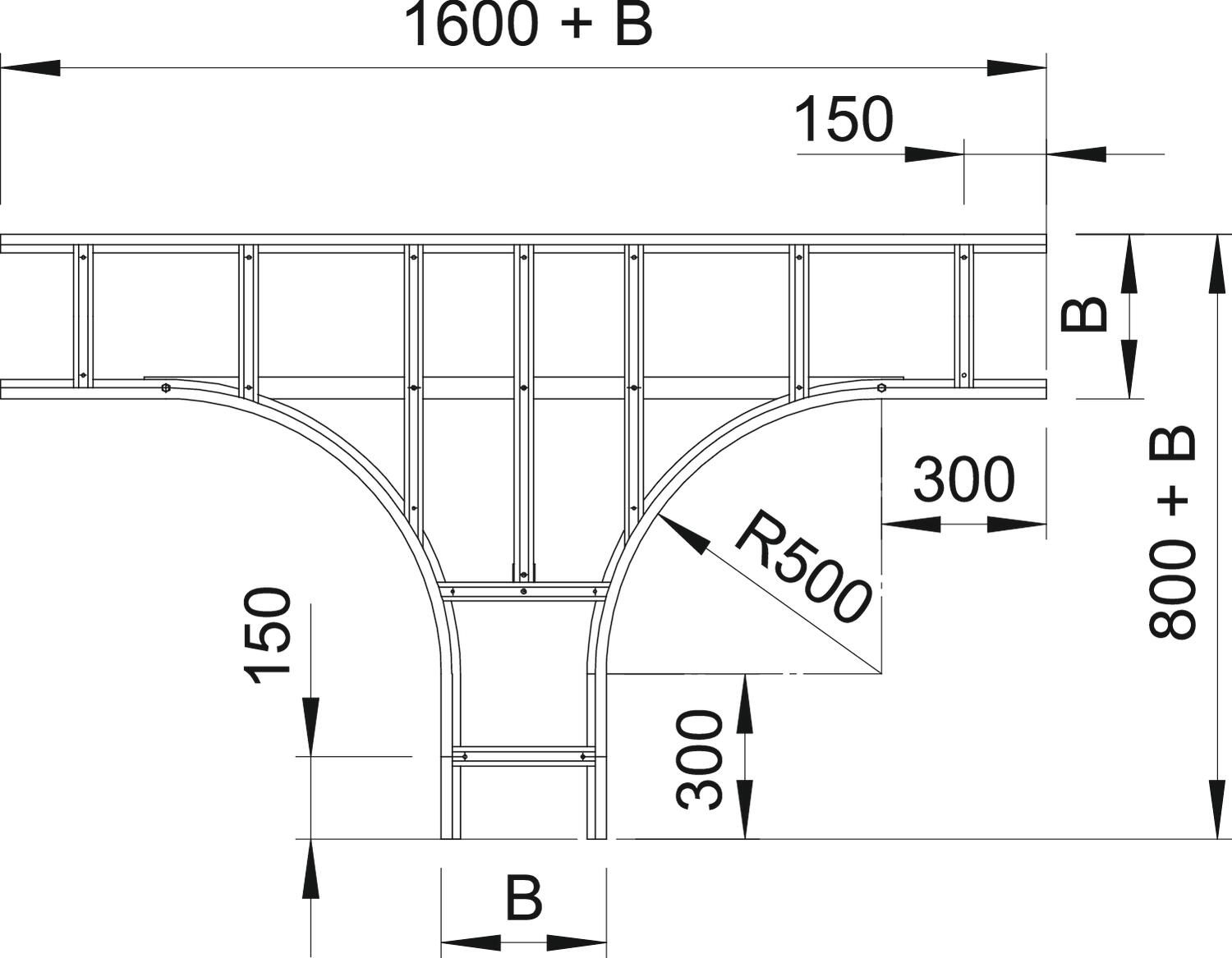

Dimension 160x200 Dimension B 200 mm Dimension R 500 mm Height 160 mm Maintain electrical functions no Material Steel Rail thickness 2 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile unperforated Wide-span version yes Width 200 mm - All types
- Downloads
-
Data sheet WLT 1620 FT / 6229727 , 0.15MB , pdfDeclaration of conformity WLT 1620 FT / 6229727 , 0.10MB , pdfUK Declaration of Conformity WLT 1620 FT / 6229727 , 0.09MB , pdfMounting instructions Weitspannkabelleitern , 11.33MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
