Note: This article is discontinued.
T branch piece 110 FS
Item no. 7003714 | EAN 4012196214938
- Product description
-

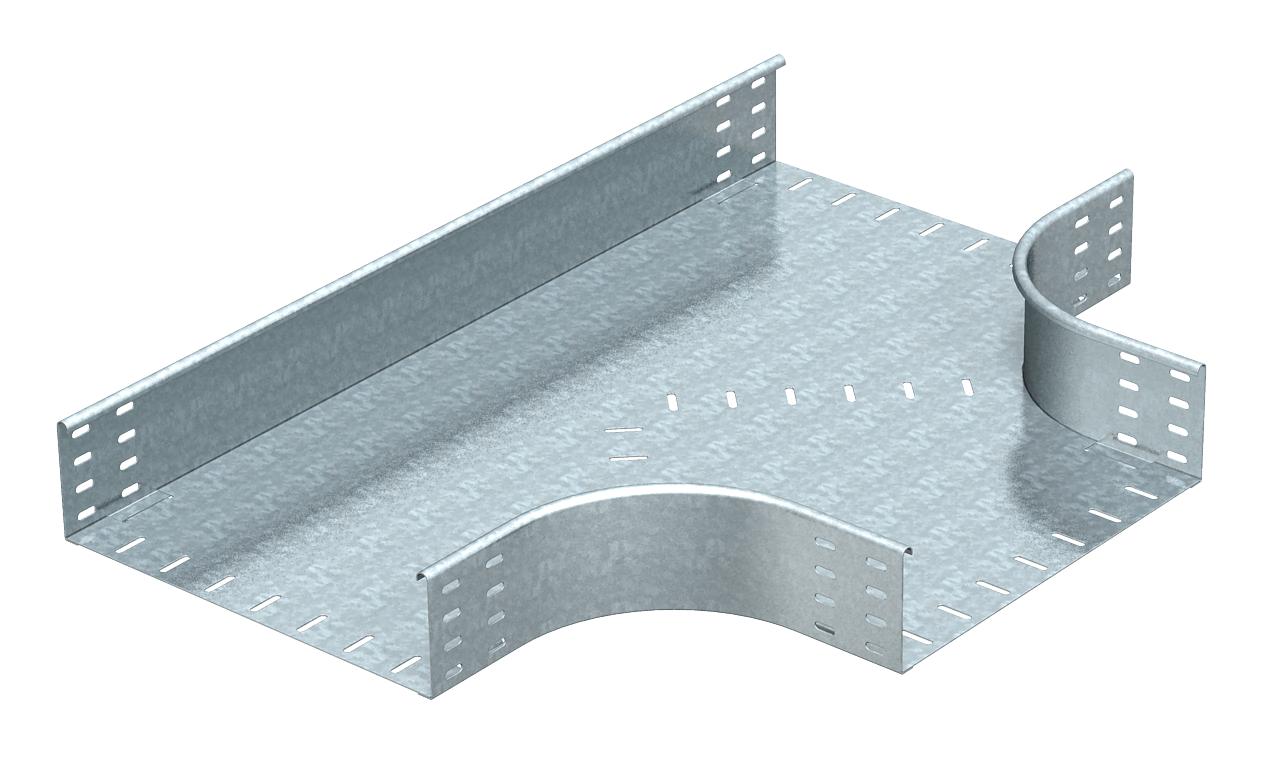

Product descriptionHorizontal T branch piece, for all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data

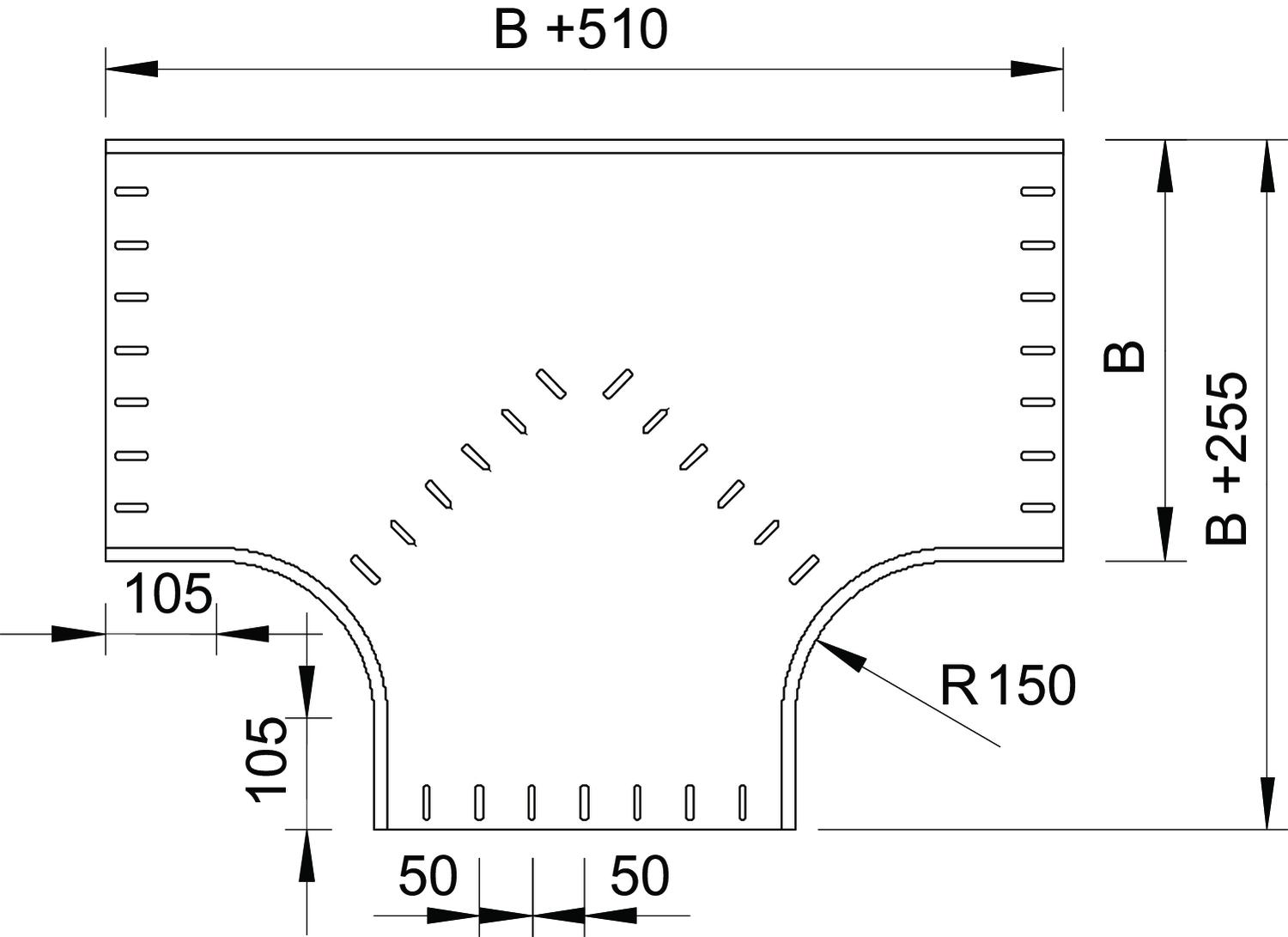

Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 110x500 Dimension B 500 mm Dimension R 150 mm Height 110 mm Maintain electrical functions no Material Steel NATO hole pattern no Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type T piece horizontal Type of connector, cable support system Screwed Wide-span version no Width 20 in Width 500 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet RT 150 FS / 7003714 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RT 150 FS / 7003714 , 0.10MB , pdfUK Declaration of Conformity RT 150 FS / 7003714 , 0.14MB , pdfREACH Declaration of conformity RT 150 FS / 7003714 , 0.12MB , pdfRoHS Declaration of conformity RT 150 FS / 7003714 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
