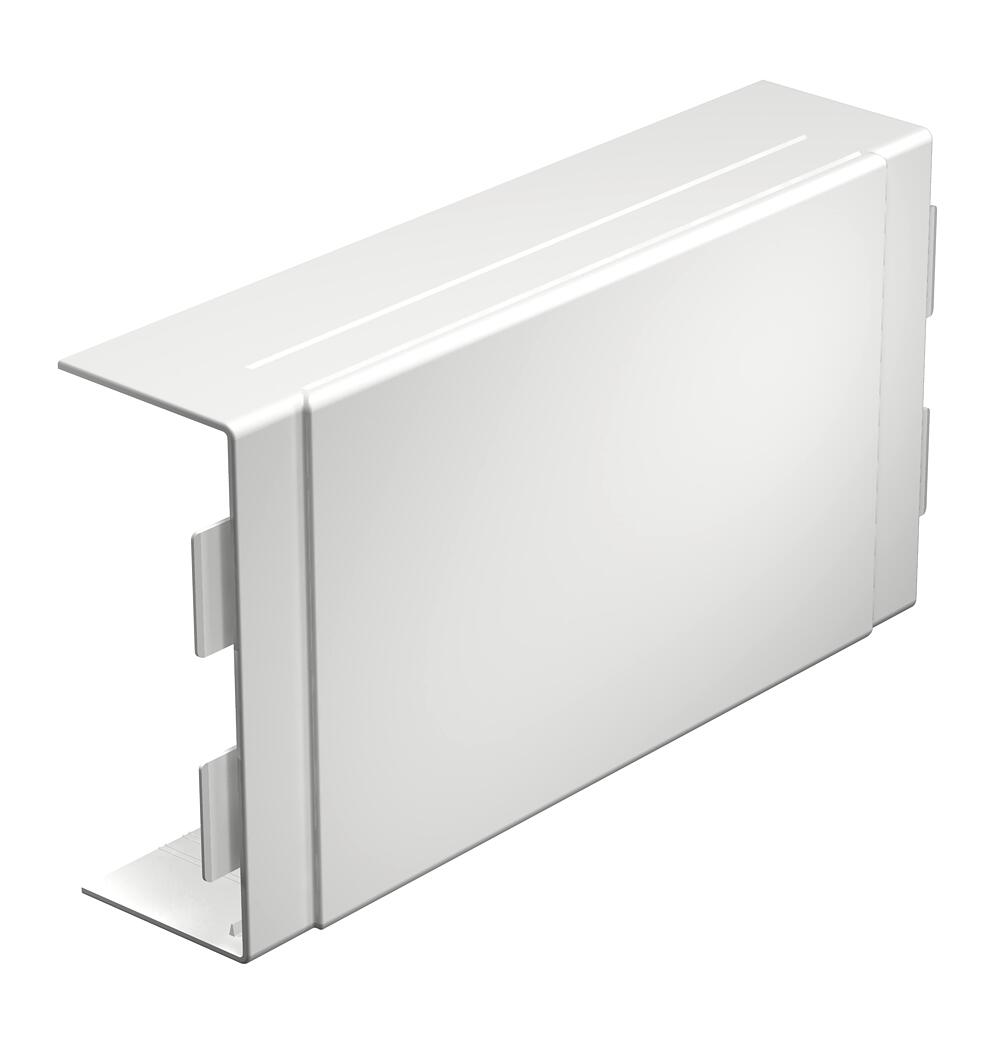

T and intersection cover, for trunking type WDKH 60150
Item no. 6175714 | EAN 4012195814207
- Product description
-
Product descriptionT and intersection cover for changing the direction of the halogen-free WDKH trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
-
- Technical data
-
Technical data

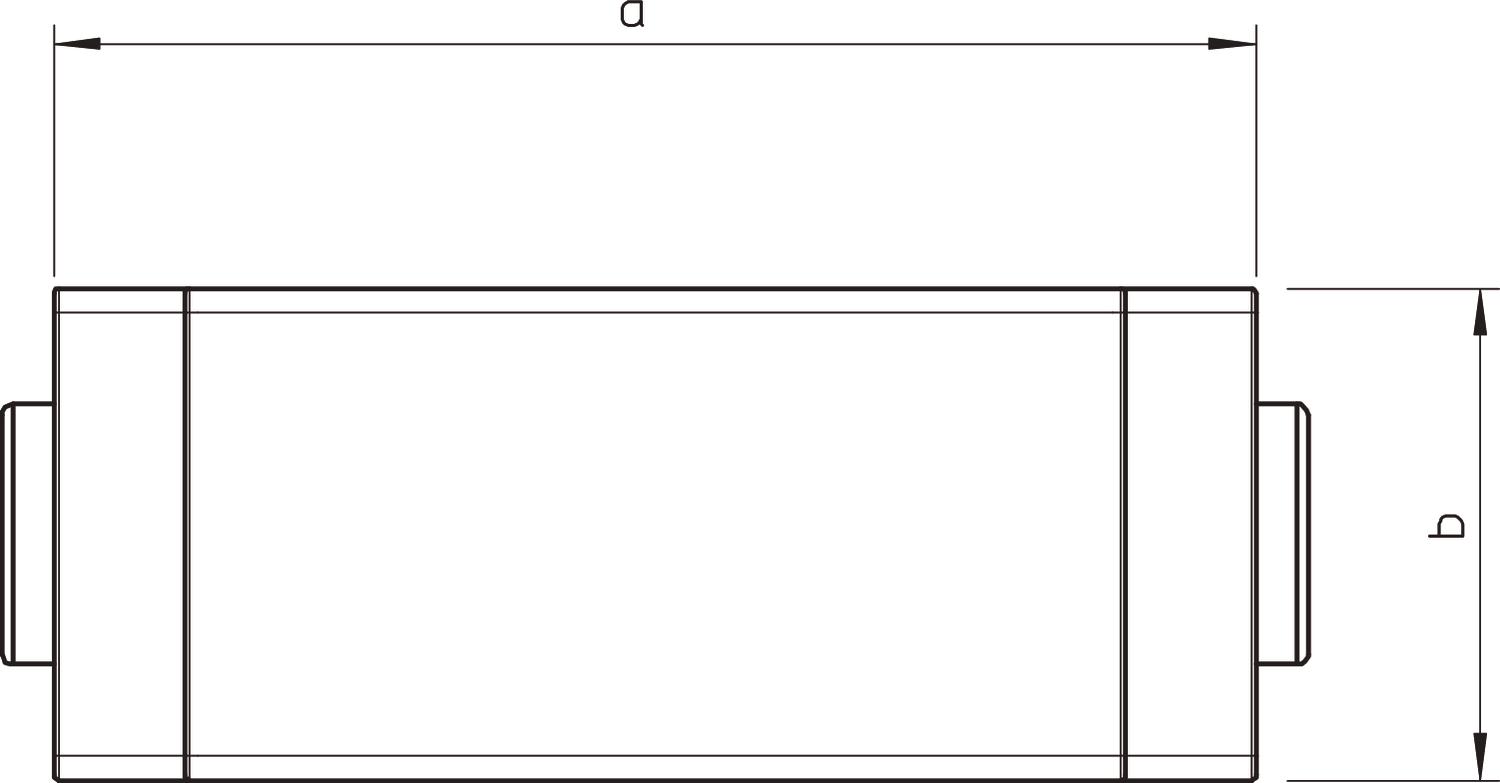

Antibacterial treatment no Colour Pure white; RAL 9010 Dimension 60x150mm Dimension a 291 mm Dimension b 155 mm Fastening type Lockable for duct dimension 60x Halogen-free yes Height 60 mm Length 291 mm Maintain electrical functions no Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK07. Protective film no Trunking depth 60 mm Version for Hood fitting Width 150 mm - All types
- Downloads
-
Data sheet WDKH-T60150RW / 6175714 , 0.15MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity WDKH-T60150RW / 6175714 , 0.13MB , pdfUK Declaration of Conformity WDKH-T60150RW / 6175714 , 0.14MB , pdfREACH Declaration of conformity WDKH-T60150RW / 6175714 , 0.27MB , pdfRoHS Declaration of conformity WDKH-T60150RW / 6175714 , 0.28MB , pdfNo invitation to tender text is available for this product.
