- Product description
-
Product description

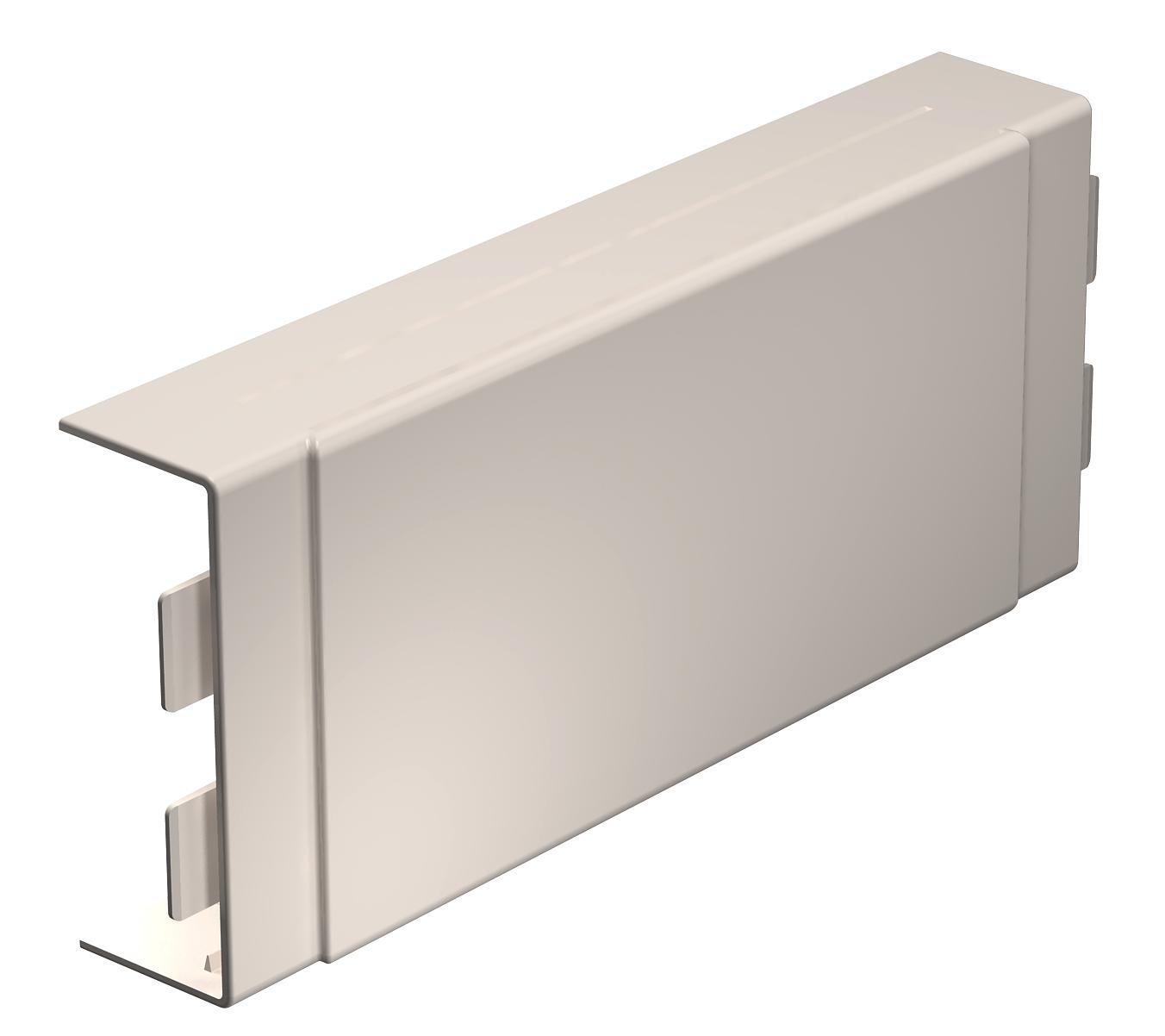

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
-
- Technical data
-
Technical data
Antibacterial treatment no Colour Cream; RAL 9001 Dimension 40x110mm Fastening type Lockable for duct dimension 40 x 110 Maintain electrical functions no Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Trunking depth 40 mm Version for Hood fitting Dimensions
Dimension a 272 mm Dimension b 112 mm Dimension H 110 mm Height 40 mm Length 272 mm Width 110 mm - All types
-
All types
- Downloads
-
Data sheet WDK HK40110CW / 6162029 , 0.22MB , pdfCatalogue Cable routing systems , 17.62MB , pdfDeclaration of conformity WDK HK40110CW / 6162029 , 0.13MB , pdfUK Declaration of Conformity WDK HK40110CW / 6162029 , 0.14MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdf
