T and intersection cover, for trunking type WDK 40090 230 | 91 | 90 | Cream; RAL 9001

T and intersection cover, for trunking type WDK 40090

Item no. 6162010 | EAN 4012196108671

Item no. / Types

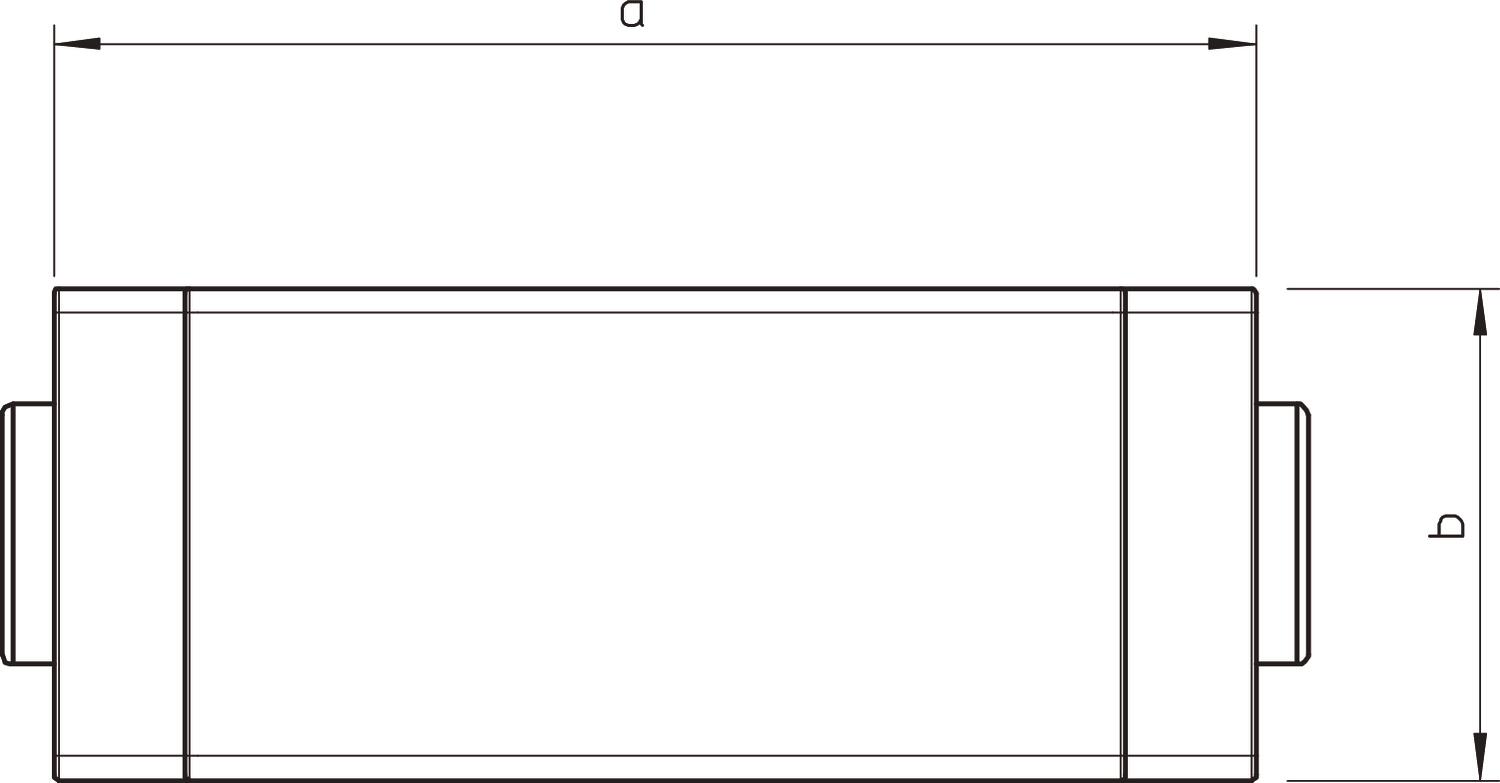

Dimension a	230 mm

Dimension b	91 mm

Dimension H	90 mm

Colour

Product description

Product description

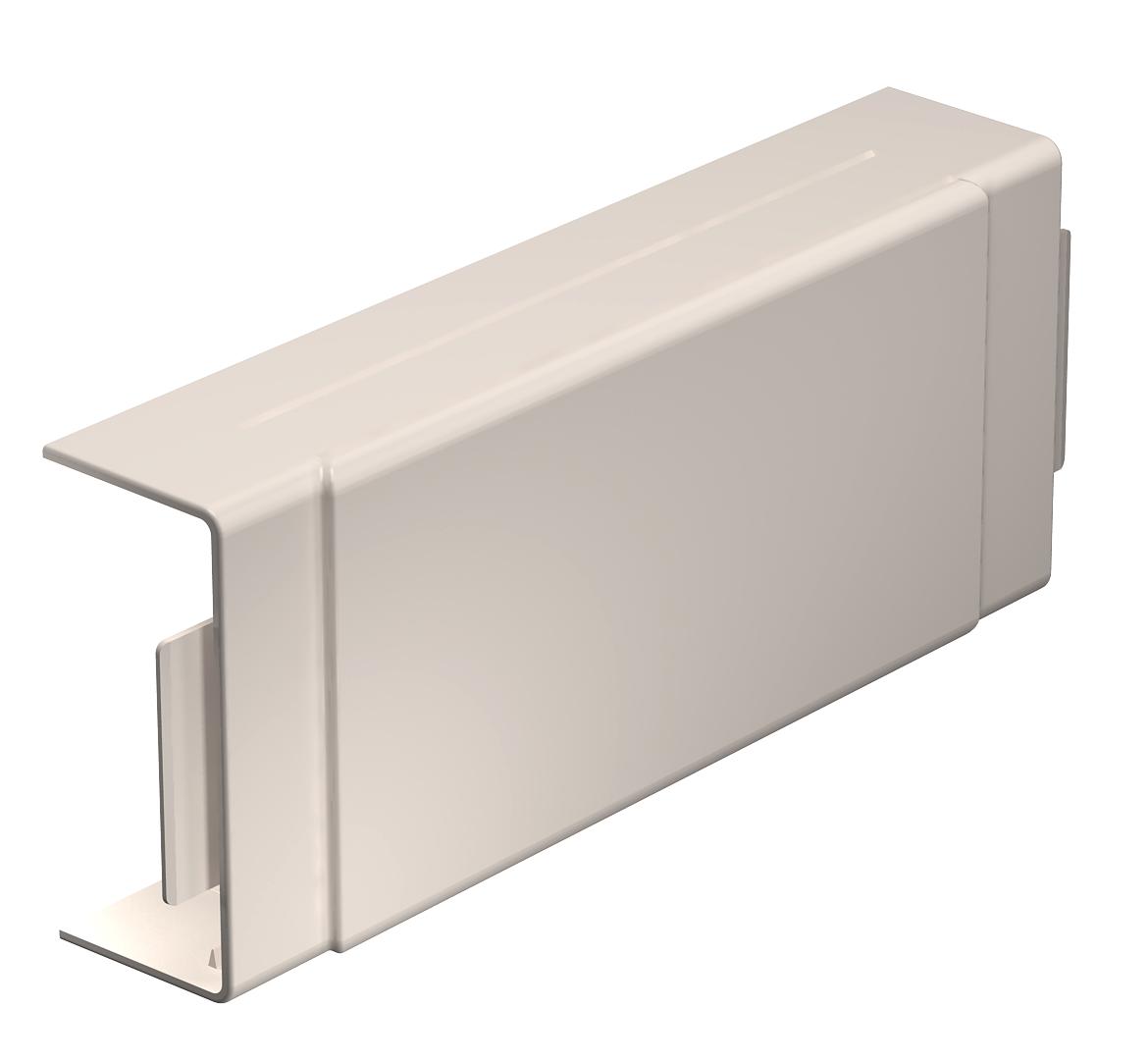

T and intersection cover for changing the direction of the WDK trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.

Technical data

Technical data

Antibacterial treatment	no
Colour	Cream; RAL 9001
Dimension	40x90mm
Dimension a	230 mm
Dimension b	91 mm
Dimension H	90 mm
Fastening type	Lockable
for duct dimension	40 x 90
Height	40 mm
Length	230 mm

Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Trunking depth	40 mm
Version for	Hood fitting
Width	90 mm

All types

All types

Types	Dimension a	Dimension b	Dimension H	Colour	Item no.	Quantity	SSU
WDK HK40090GR	230 mm	91 mm	90 mm	Stone grey; RAL 7030	6023142	piece	2 piece
WDK HK40090CW	230 mm	91 mm	90 mm	Cream; RAL 9001	6162010	piece	2 piece
WDK HK40090LGR	230 mm	91 mm	90 mm	Light grey; RAL 7035	6182933	piece	2 piece
WDK HK40090RW	230 mm	91 mm	90 mm	Pure white; RAL 9010	6192564	piece	2 piece
