Suspension eyelet 1.1 | 6
morepic-1

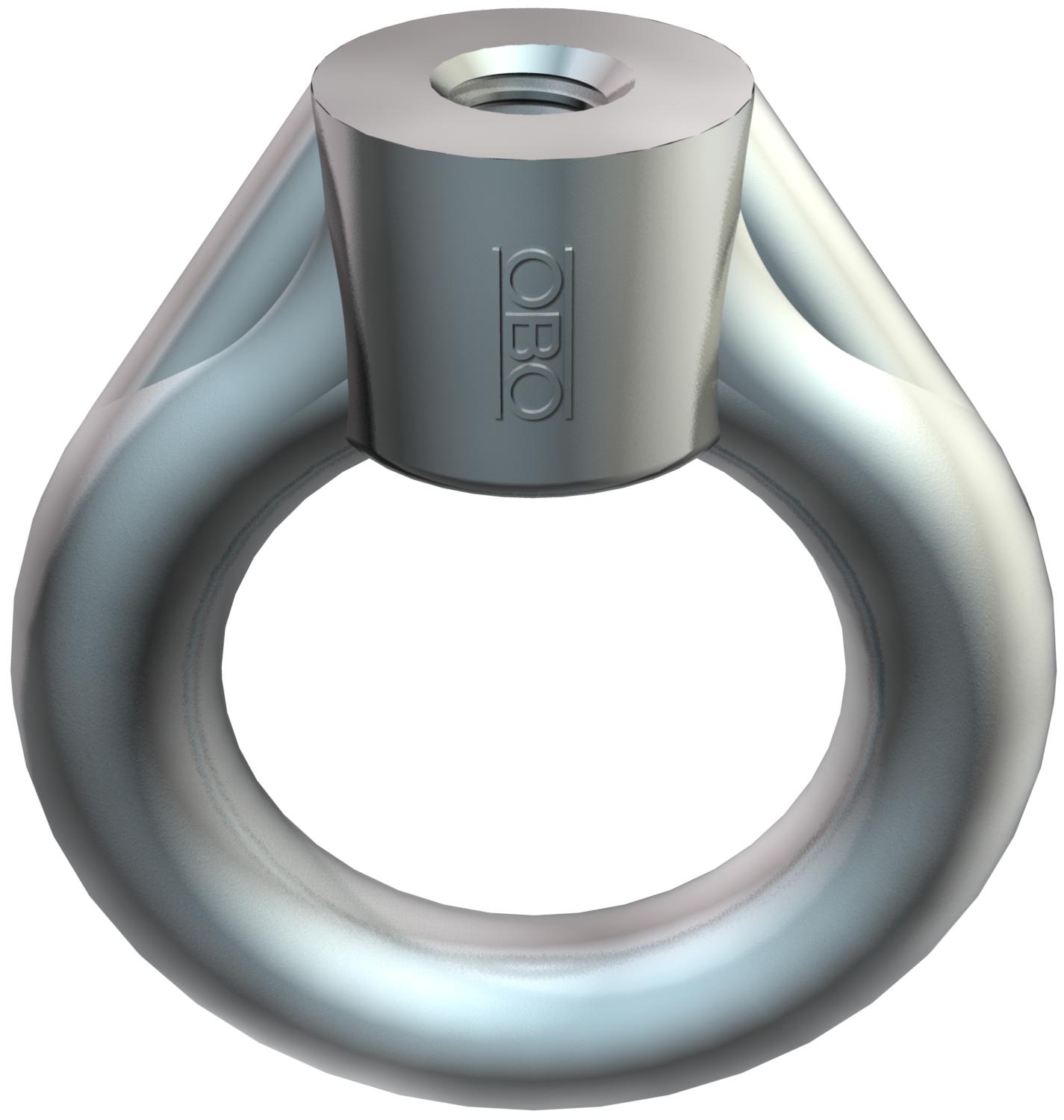

Suspension eyelet

Item no. 3464067 | EAN 4012195307334

1.1 kN
Product description

Product description

M6 suspension lug
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Breaking load 1,1 kN
Dimension M6
Dimension b 8 mm
Dimension BØ 15 mm
Dimension D 40 mm
Dimension d Ø 24 mm
Dimension L 44,5 mm
Material Die-cast zinc
Surface Electrogalvanized
Thread metric 6
All types

All types

Types Breaking load Thread metric Item no. Quantity SSU
2085 M6 G 1.1 kN 6 3464067
50 piece
2085 M8 G 1.1 kN 8 3464083
50 piece
