Note: This article is discontinued.

Suspension bracket for tunnels

Item no. 6364007 | EAN 4012195924463

Product description

Product description

Special suspension bracket for cable support systems in tunnels. Additional variants, such as adapter or connection clamps, as well as various head shapes, on request.


  • Communautés Européennes, EC declaration of conformity according to EC directives

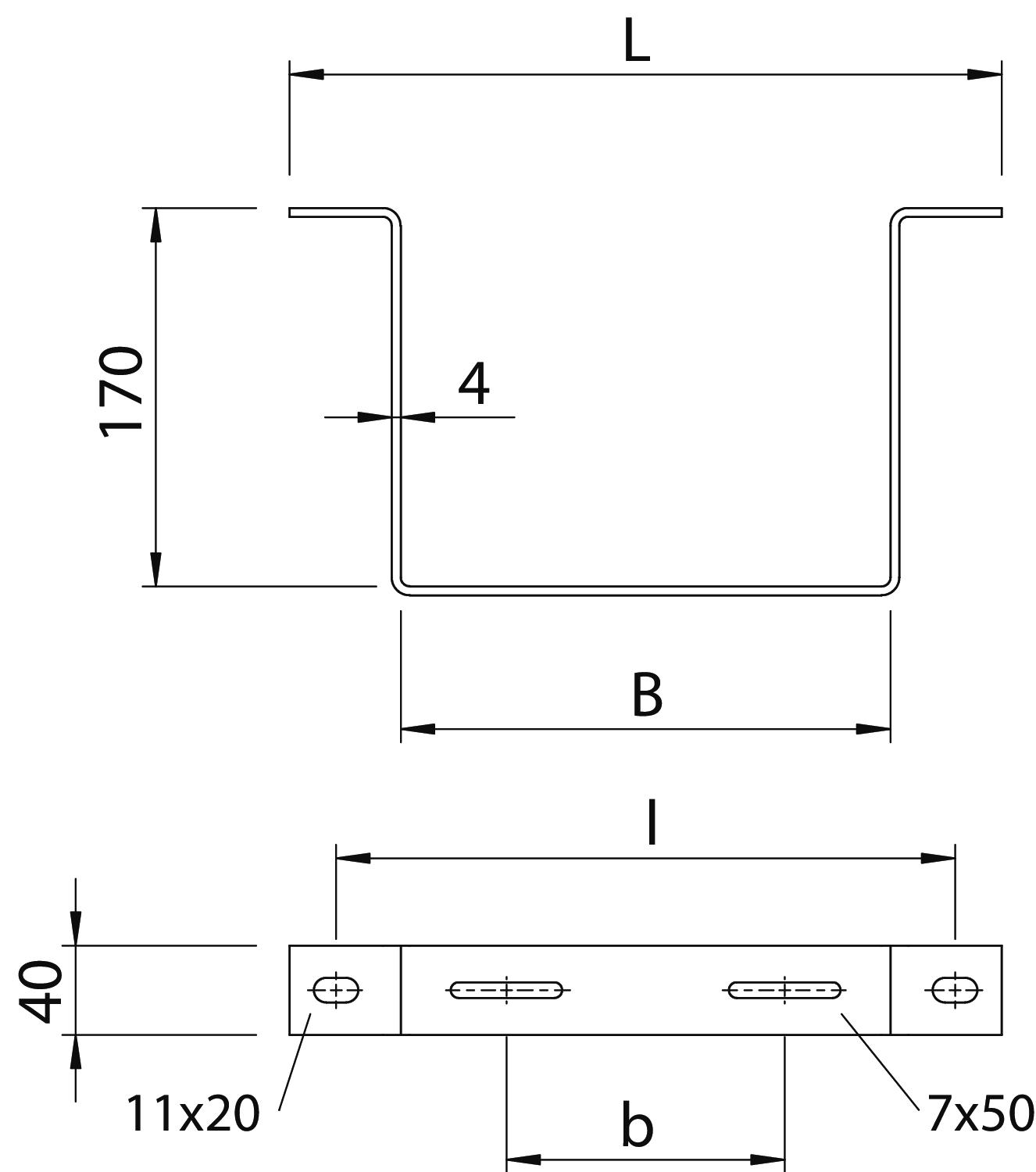

Technical data

Technical data

Dimension 170x320
Dimension B 220 mm
Dimension b 125 mm
Dimension l 280 mm
Dimension L 320 mm
Height 40 mm
Length 170 mm
Maintain electrical functions yes
Material Stainless steel
Material thickness 4 mm
Suitable for cable ladder yes
Suitable for cable tray yes
Suitable for mesh cable tray yes
Surface Bright, treated
Width 320 mm
All types

All types

Types Width Item no. Quantity SSU
AHB-T1712 VA4547 220 mm 6363997
16 piece
AHB-T1722 VA4547 320 mm 6364007
14 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x16 F 6406157
100 piece
