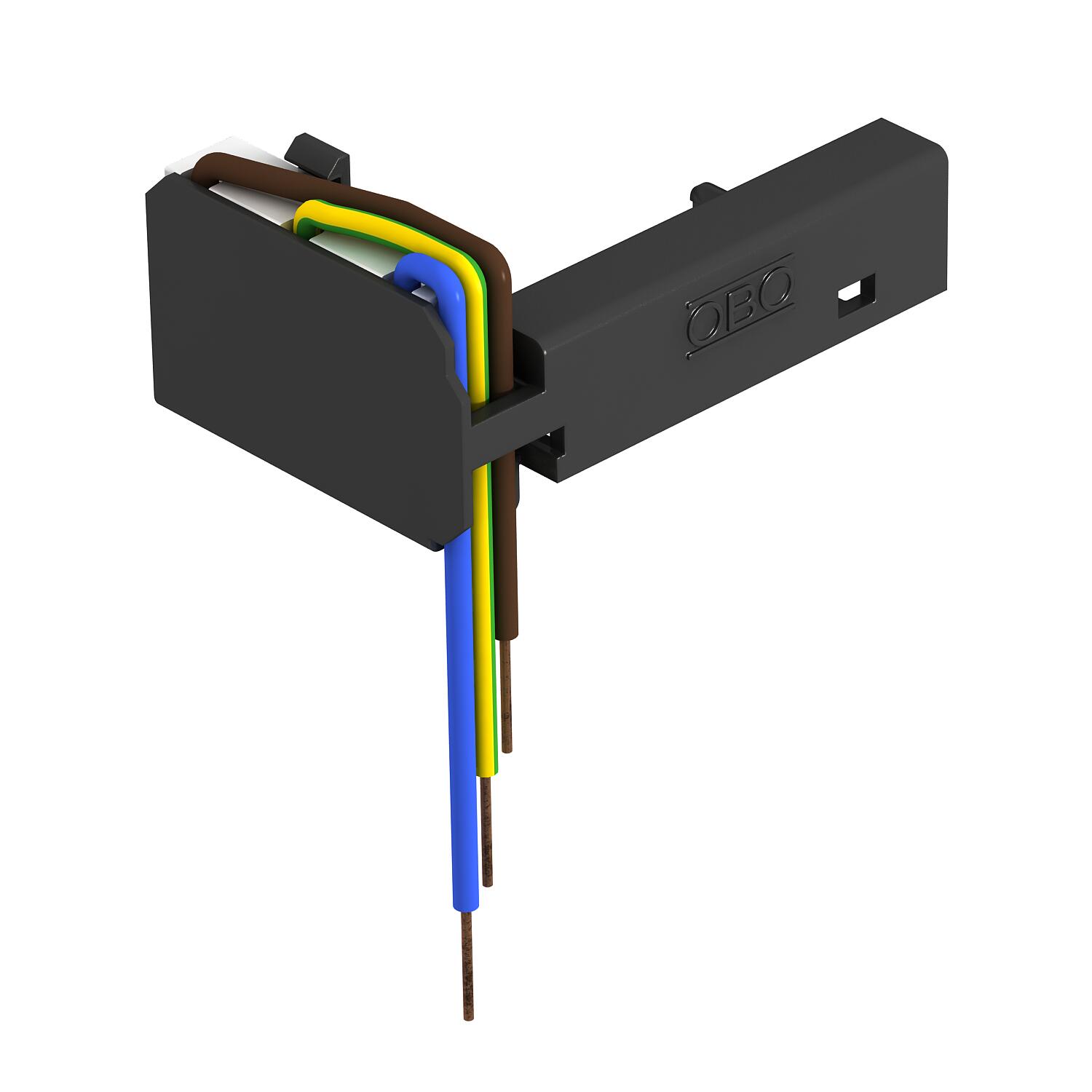

Surge protection module with support for Modul 45connect

Item no. 6107801 | EAN 4012195699767

6107801 / ÜSM-A-4T
255
Product description

Product description

2-pin surge protection module, 16 A/250 V~, with acoustic default display, no network switch-off, for connection to a multiple socket of type Modul 45connect using the supplied support. For installation in universal supports UT3/45 and UT4/45. The surge protection module meets EN 61643-11, type 3, Class III, requirements Class D.
Suitable for installation in underfloor systems in connection with an MT3 / MT4 module support.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • Russia, GOST The State Committee for Standards
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
Technical data

Technical data

Cable type for surge protection devices Power cable AV
Maximum continuous voltage AC 255
Signalling on device Acoustic
SPD to EN 61643-11 Type 3
All types

All types

Types Maximum continuous voltage AC Item no. Quantity SSU
ÜSM-A-4T 255 6107801
1 piece
Downloads

Download

Declaration of conformity ÜSM-A-4T / 6107801 , 0.10MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
