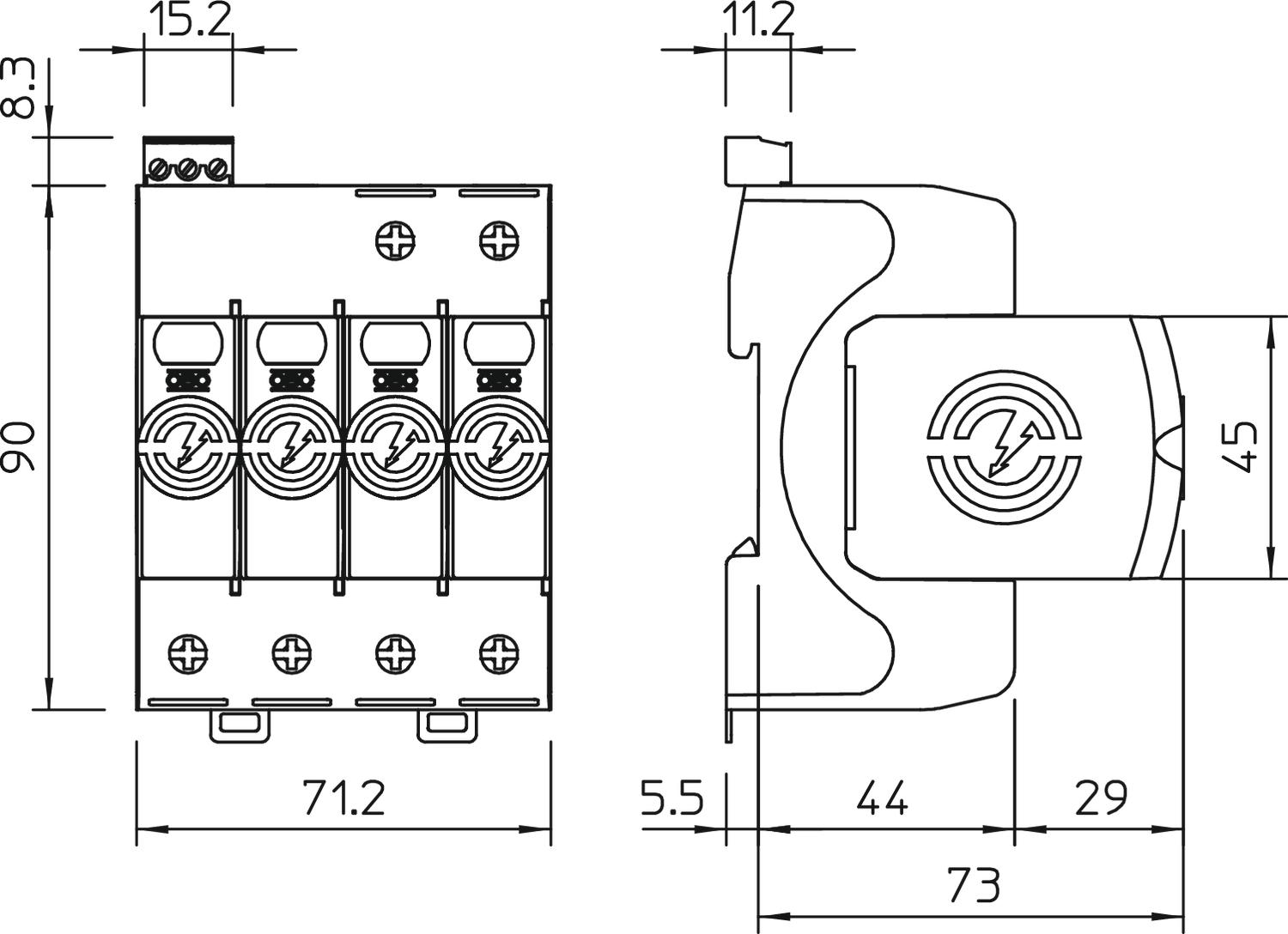

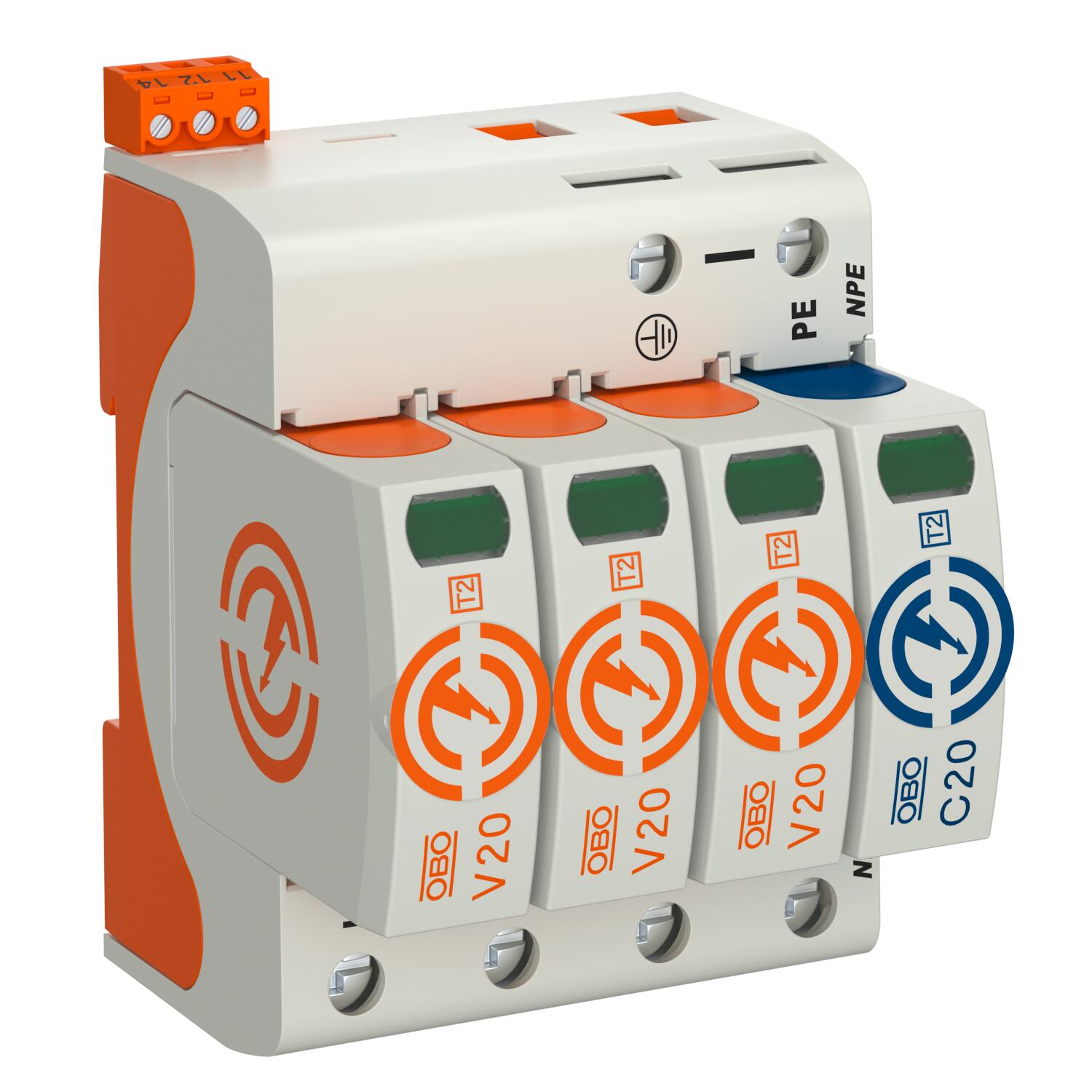

Surge arrester V20, 3-pole + NPE and remote signalling, 280 V
Item no. 5095333 | EAN 4012196163427
- Product description
-
Product descriptionSurge arrester, type 2
• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors
• Modular connectable arrester with cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic to UL 94 V-0

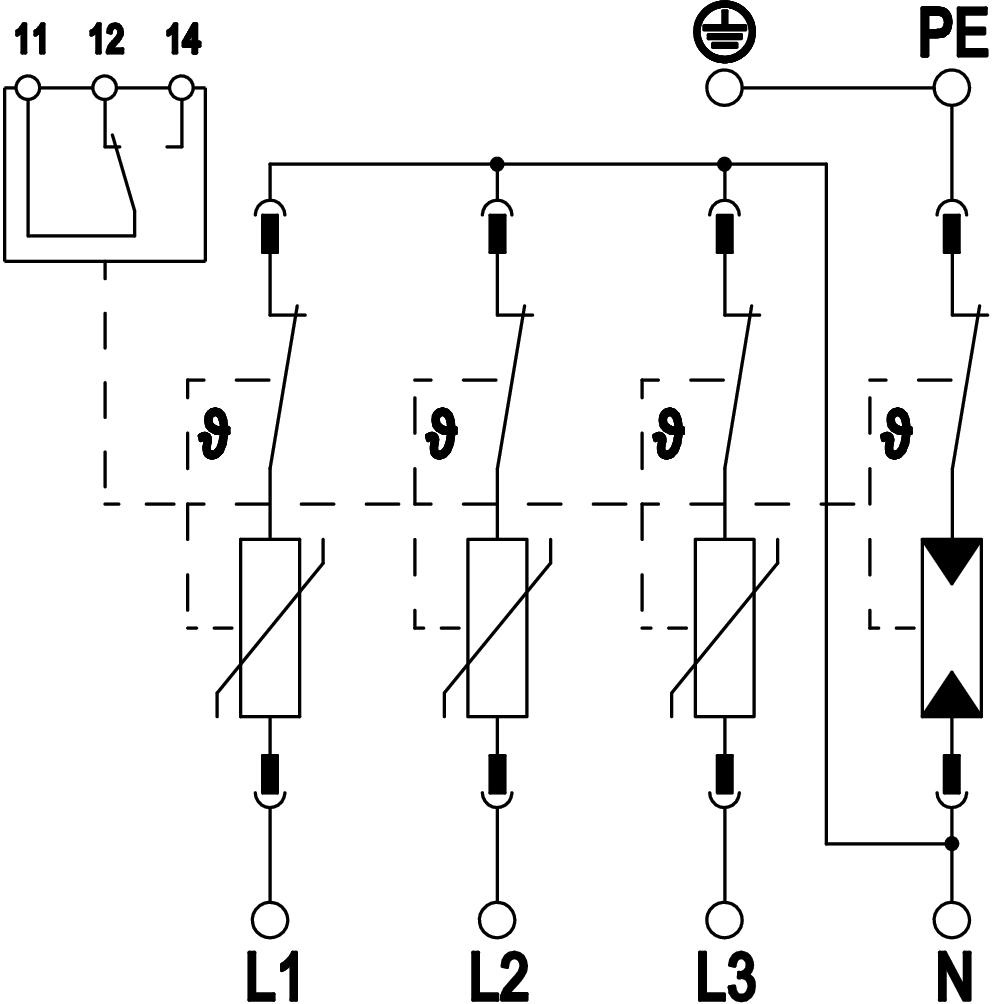

• The remote signalling variants (FS) have a potential-free changeover contact for remote signalling
Application: Equipotential bonding in main and sub-distributions.
-
- Technical data
-
Technical data
Approvals VDE Arrester surge current (8/20 µs) [total] 60 kA Blow-out no Cable type for surge protection devices Power cable AV Combined voltage protection level [L-PE] 1,5 kV Conductor cross-section, flexible (fine-wire), max. 35 mm² Conductor cross-section, flexible (fine-wire), max. 2 AWG Conductor cross-section, flexible (fine-wire), min. 16 AWG Conductor cross-section, flexible (fine-wire), min. 1,5 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 2 AWG Conductor cross-section, rigid (single-wire/multiwire), min. 1,5 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 16 AWG Connection cross-section, FM terminals, max. 1,5 mm² Connection cross-section, FM terminals, max. 16 AWG Connection cross-section, FM terminals, min. 21 AWG Connection cross-section, FM terminals, min. 0,5 mm² Dimension 280V FM contacts Changeover Follow current quenching capacity (eff) [N-PE] 0,1 kA Housing material surge protection components PA UL 94 V-0 Installation type DIN rail 35 mm Integrated back-up fuse no Max. mains-side overcurrent protection 160 A gL/gG Maximum back-up fuse 160 A Maximum continuous voltage (L-N) 280 V Maximum continuous voltage (N-PE) 255 V Maximum continuous voltage AC 280 V Maximum discharge current (8/20 μs) 40 kA Maximum discharge current (8/20 μs) [L-N] 40 kA Maximum discharge current (8/20 μs) [N-PE] 60 kA Minimum distance 1,5 mm Network form Other Nominal discharge current (8/20 µs) 20 kA Nominal discharge current (8/20 µs) [L-N] 20 kA Nominal discharge current (8/20 µs) [N-PE] 40 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole number 4 Pole version 3+N/PE Protection level [L-N] ≤1,3 Protection rating IP20 Remote signalling yes Residual voltage [L-N] @ 1 kA 0,8 kV Residual voltage [L-N] @ 5 kA 1 kV Response time <25 ns Short-circuit resistance for max. mains-side overcurrent protection 50 kA eff Short-circuit resistant yes Signalling on device Visual SPD to EN 61643-11 Type 2 SPD to IEC 61643-1 Class II SPD to UL 1449 Type 4 Switching power AC 230 V; 0,5 A Switching power DC 230 V; 0,1 A / 75 V; 0,5 A Test class, type 2 yes TN network form yes TN-C-S network form yes TN-S network form yes Torque 4 Nm TOV voltage [L-N] ‒ fail safe mode ‒ 120 min. 440 V TOV voltage [L-N] ‒ withstand mode ‒ 5 s 335 V TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms 1200 V TT network form yes - All types
- Downloads
-
Data sheet V20-3+NPE+FS-280 / 5095333 , 0.35MB , pdfCatalogue Überspannungsschutz , 28.42MB , pdfEU declaration of conformity V20-3+NPE+FS-280 / 5095333 , 0.11MB , pdfREACH Declaration of conformity V20-3+NPE+FS-280 / 5095333 , 0.12MB , pdfRoHS Declaration of conformity V20-3+NPE+FS-280 / 5095333 , 0.13MB , pdfLabel approval VDE symbol approval, V20 , 0.12MB , pdfLabel approval UL certificate, V20 and V50 , 0.26MB , pdfLabel approval ÖVE certificate V20 series , 0.43MB , PDFMounting instructions Mounting instructions, V20-...-280 , 0.07MB , pdf
