Support profile 100 FS

Item no. 6044581 | EAN 4012196341726

Back to overview
Product description
Product description

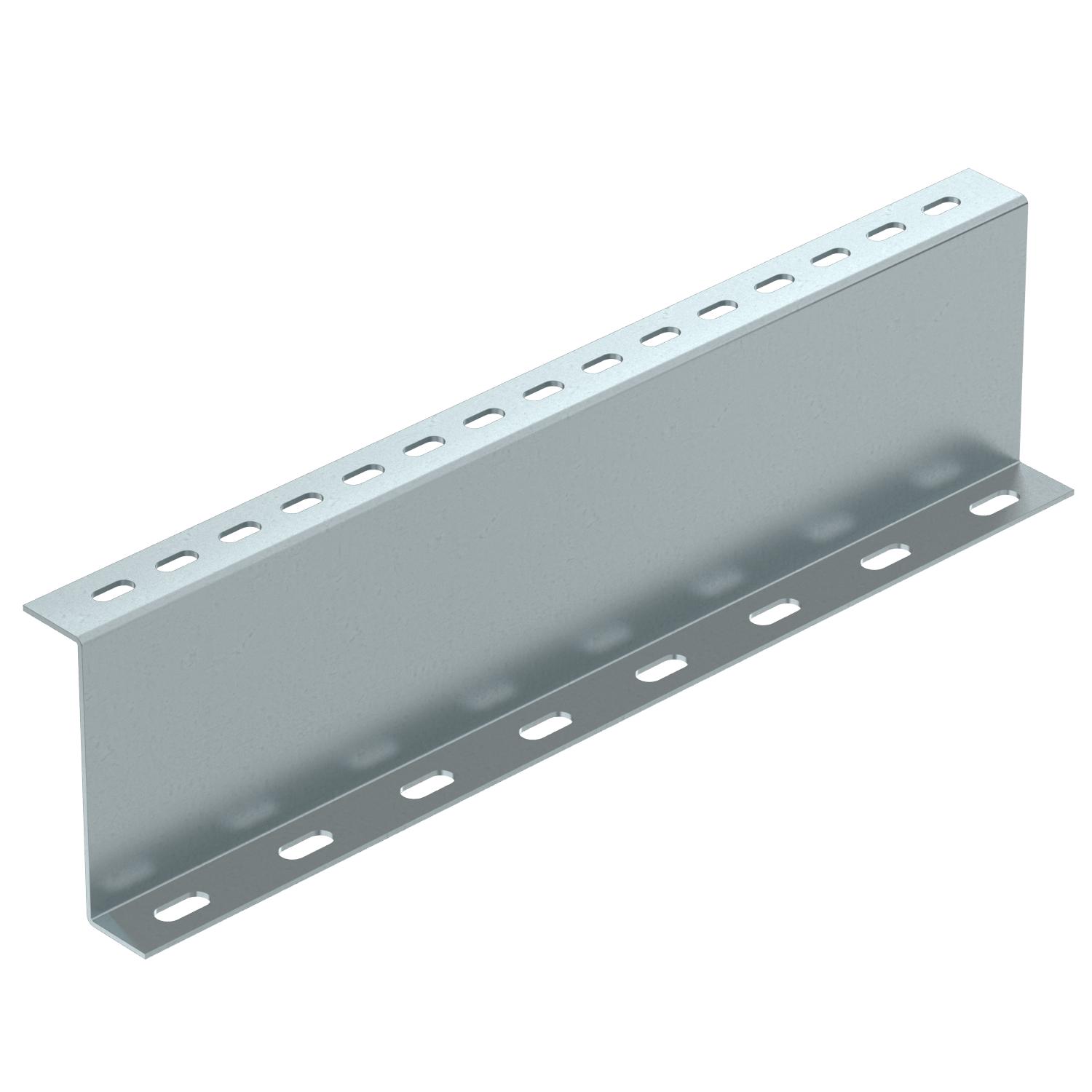

Support profile for holding up the walkable cable tray system BKRS from the floor. Installation must be performed on both sides of the Z profile during the process of securing the system so that it is held up.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour zinc

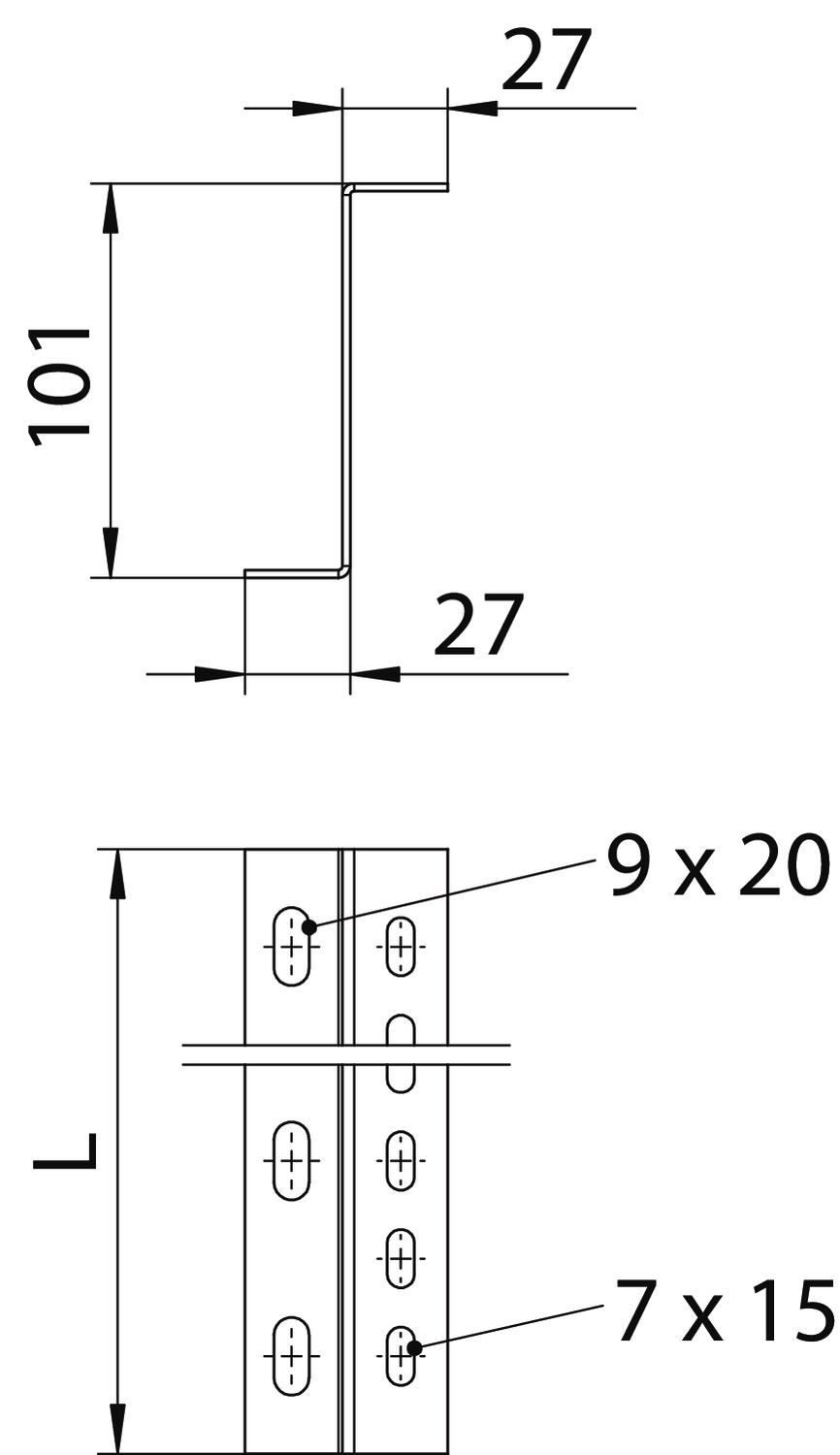

Dimension 100x100
Dimension L 100 mm
Height 100 mm
Length 100 mm
Material Steel
Material thickness 2 mm
Rustproof steel, pickled no
Surface Strip galvanized
Width 100 mm
All types

All types

Types Length Item no. Quantity SSU
STP Z 1010 FS 100 mm 6044581
1 piece
STP Z 1020 FS 200 mm 6044583
1 piece
STP Z 1030 FS 300 mm 6044585
1 piece
STP Z 1040 FS 400 mm 6044587
1 piece
STP Z 1050 FS 500 mm 6044589
1 piece
STP Z 1060 FS 600 mm 6044591
1 piece
STP Z 10300 FS 3000 mm 6044596
3 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
Downloads

Download

Download

EU declaration of conformity STP Z 1010 FS / 6044581 , 0.10MB , pdf
Download

Download

STP Z 1010 FS / 6044581
Download
