Support construction for insulations, with bracket

Item no. 7202436 | EAN 4012196839520

Item no. / Types	7202436 / SKA 05 VZ

Dimension B	217 mm

Product description

Product description

Suspension and fastening material, made of steel, to create the first support of pass-through installations in fire insulation. Mounting of the bracket on the wall, support of the installation using mounting rail.

The maximum distance of the mounting rail to the wall of 200 mm fulfils the requirements of most insulation systems.

Technical data

Technical data

Dimension	500mm
Dimension A	50 mm
Dimension B	217 mm

Dimension H	70 mm
Material	Steel
Type of accessory	Miscellaneous

All types

All types

Types	Dimension B	Item no.	Quantity	SSU
SKA 05 VZ	217 mm	7202436	piece	1 piece

Downloads

Data sheet SKA 05 VZ / 7202436 , 0.17MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Brochure The Experts , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Flyer Support structures for fire insulations , 0.61MB , pdf

Catalogue Schutzinstallation Abschottungen und Kabelbandagen , 12.95MB , pdf

Selection aid Selection aid, insulation , 0.86MB , pdf

Mounting instructions Mounting instructions, support structure bracket , 0.82MB , pdf

Download

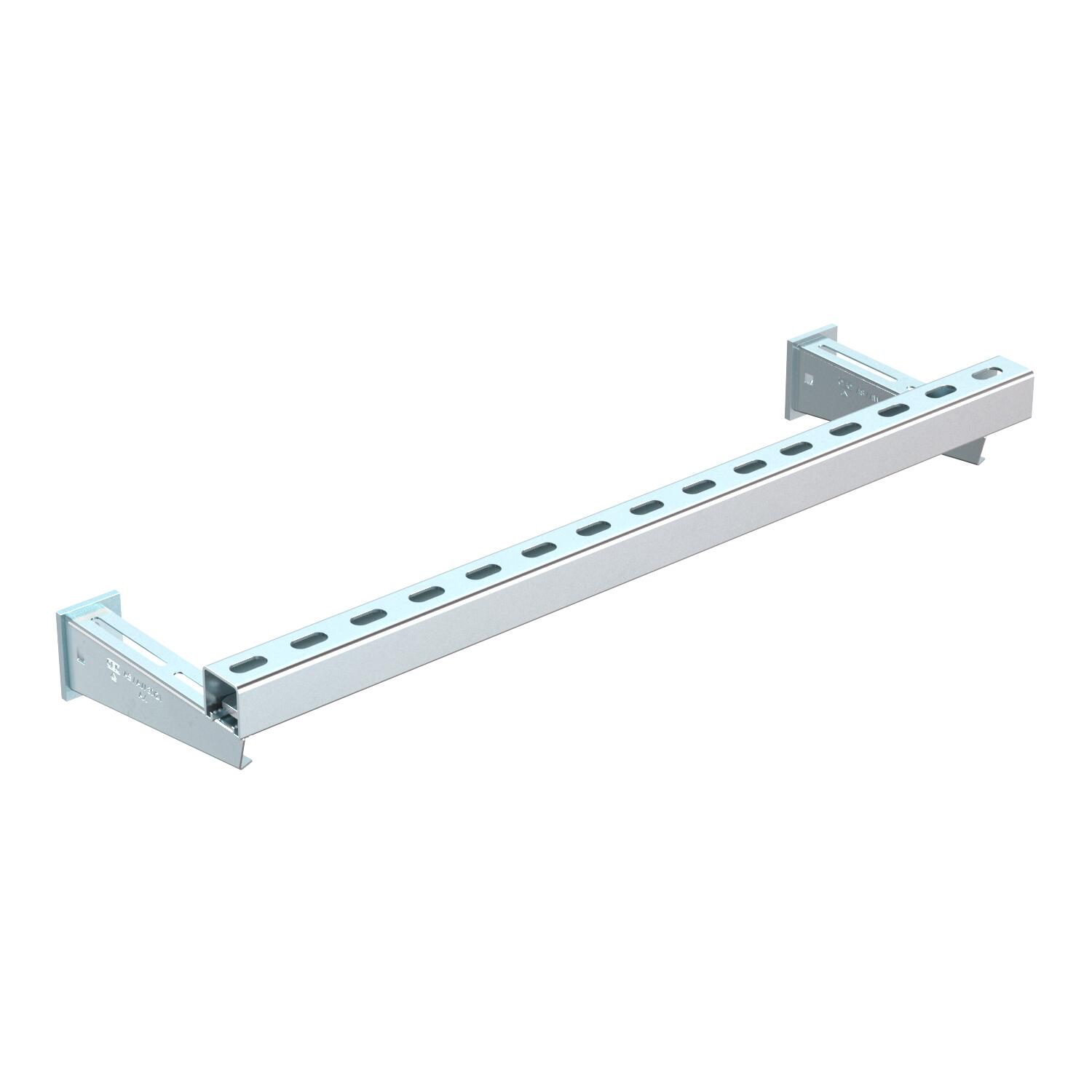

Product graphic SKA 05 VZ / 7202436, 46.34 kB, jpg

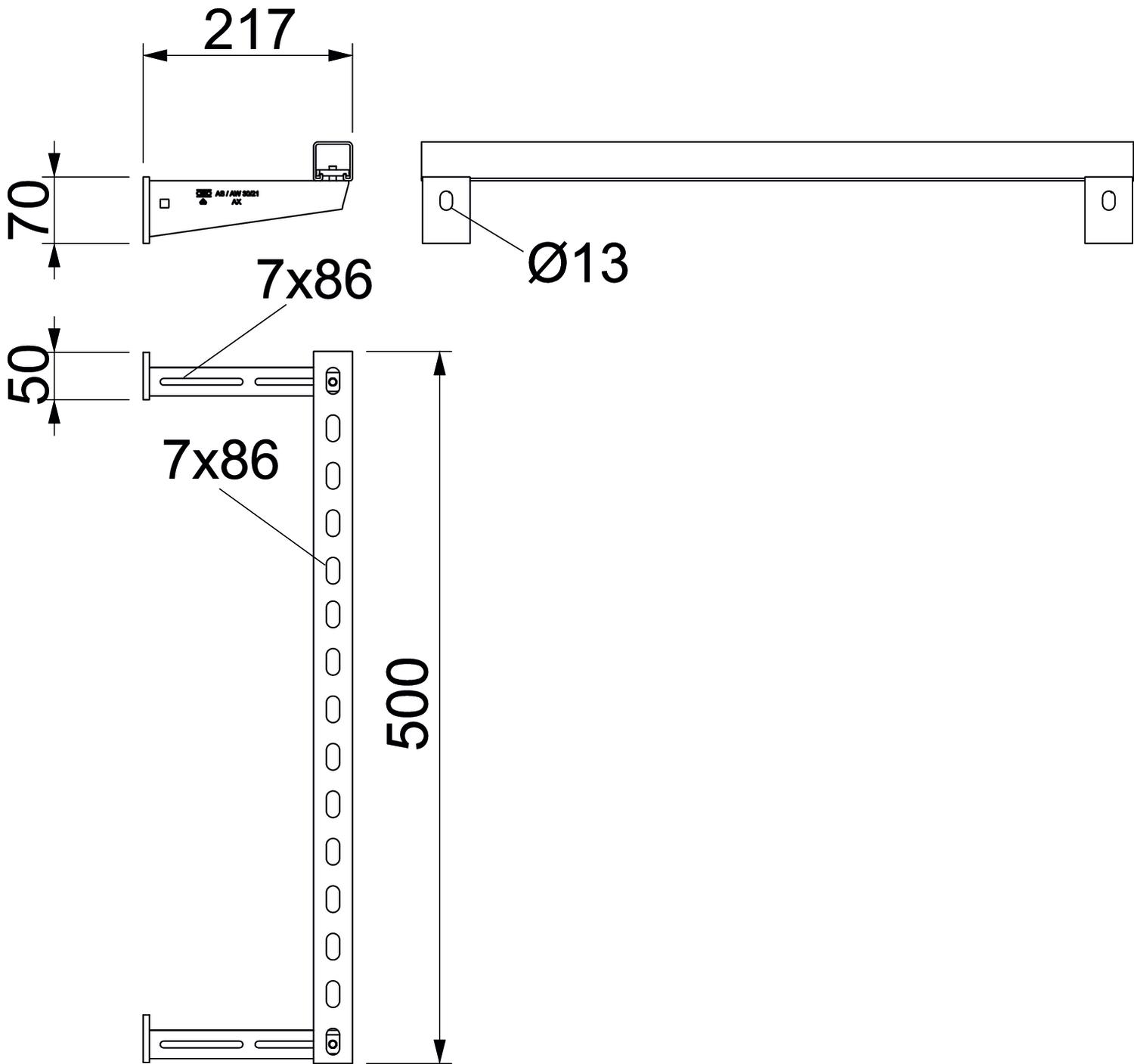

Scale drawing SKA 05 VZ / 7202436, 63.95 kB, jpg
