Support clamp, with cable tie seat 33 | 28 | 24 | | | | 33 | 1.5 | 4

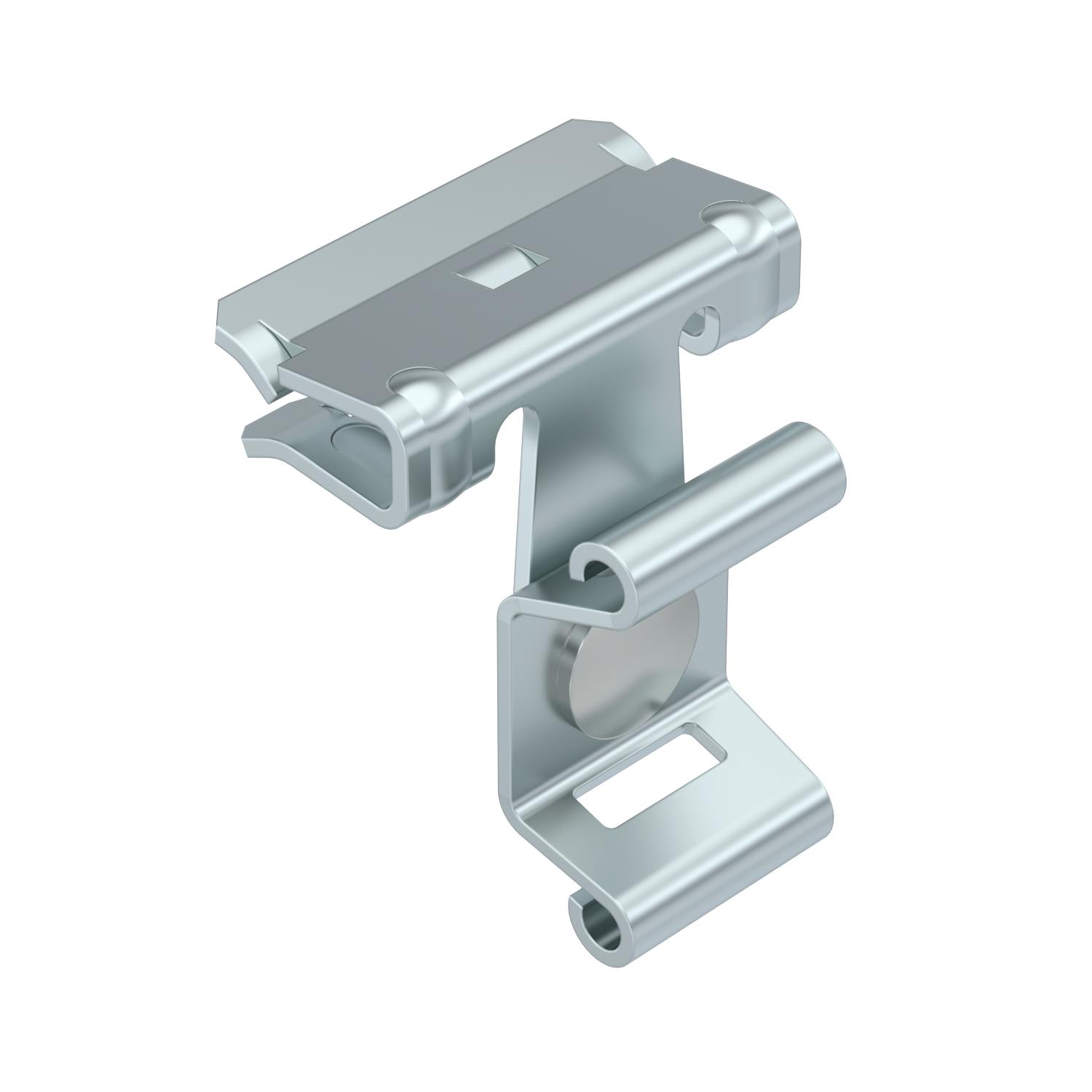

Support clamp, with cable tie seat

Item no. 1488301 | EAN 4012197392031

Item no. / Types

Length

Width

Height

Dimension L

Flange thickness F min.

Flange thickness F max.

Product description

Product description

Support clamp for cable ties for mounting cables and pipes. Fastening through knocking onto steel girders. Cable ties not contained in scope of supply.

Technical data

Technical data

Connection type/component	Pipe/cable
Dimension	1,5-4mm
Fastening type	Clamp
Flange thickness F max.	4 mm
Flange thickness F min.	1,5 mm

Hinge, adjustable	no
Hinged	no
Material	Steel
Surface	Zinc slat

Dimensions

Dimension L	33 mm
Height	24 mm
Length	33 mm

Maß W	28 mm
Width	28 mm

All types

All types

Types	Length	Width	Height	Dimension L	Flange thickness F min.	Flange thickness F max.	Item no.	Quantity	SSU
SCCT 1,5-4	33 mm	28 mm	24 mm	33 mm	1.5 mm	4 mm	1488301	piece	50 piece
SCCT 4-10	38 mm	40 mm	32 mm	38 mm	4 mm	10 mm	1488303	piece	50 piece
SCCT 15-20	44 mm	40 mm	33 mm	44 mm	15 mm	20 mm	1488311	piece	50 piece
