Support bracket AS 55

Item no. 6419322 | EAN 4012195873181

Item no. / Types

Length	41 mm

Width

F in kN	5.5 kN

Product description

Product description

Heavy-duty support bracket for infinitely adjustable fastening on IS 8 support.

Technical data

Technical data

Dimension	B710mm
Dimension A	41 mm
Dimension B	710 mm
Dimension H	195 mm
Dimension L	710 mm
F in kN	5,5 kN
Height	195 mm

Length	41 mm
Maintain electrical functions	no
Material	Steel
Rustproof steel, pickled	no
Surface	Hot-dip galvanised
Version for	Support bracket
Width	710 mm

Technical data

Load diagram, bracket type AS 55

Load diagram, bracket type AS 55

Bending of the bracket tip at permitted bracket load
Permitted bracket load in kN without man load
Load curve with bracket lengths in mm

All types

All types

Types	Length	Width	F in kN	Item no.	Quantity	SSU
AS 55 21 FT	41 mm	210 mm	5.5 kN	6419286	piece	1 piece
AS 55 31 FT	41 mm	310 mm	5.5 kN	6419292	piece	1 piece
AS 55 41 FT	41 mm	410 mm	5.5 kN	6419298	piece	1 piece
AS 55 51 FT	41 mm	510 mm	5.5 kN	6419304	piece	1 piece
AS 55 56 FT	41 mm	560 mm	5.5 kN	6419310	piece	1 piece
AS 55 61 FT	41 mm	610 mm	5.5 kN	6419316	piece	1 piece
AS 55 71 FT	41 mm	710 mm	5.5 kN	6419322	piece	1 piece
AS 55 81 FT	41 mm	810 mm	5.5 kN	6419328	piece	1 piece
AS 55 91 FT	41 mm	910 mm	5.5 kN	6419334	piece	1 piece
AS 55 101 FT	41 mm	1010 mm	5.5 kN	6419340	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Truss-head bolt with flange nut F	FRSB 6x12 F	6406122	piece	100 piece

Downloads

Data sheet AS 55 71 FT / 6419322 , 0.21MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity AS 55 71 FT / 6419322 , 0.13MB , pdf

REACH Declaration of conformity AS 55 71 FT / 6419322 , 0.12MB , pdf

Download

RoHS Declaration of conformity AS 55 71 FT / 6419322 , 0.12MB , pdf

Download

Environmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdf

Mounting instructions Mounting instructions, I support systems , 0.03MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

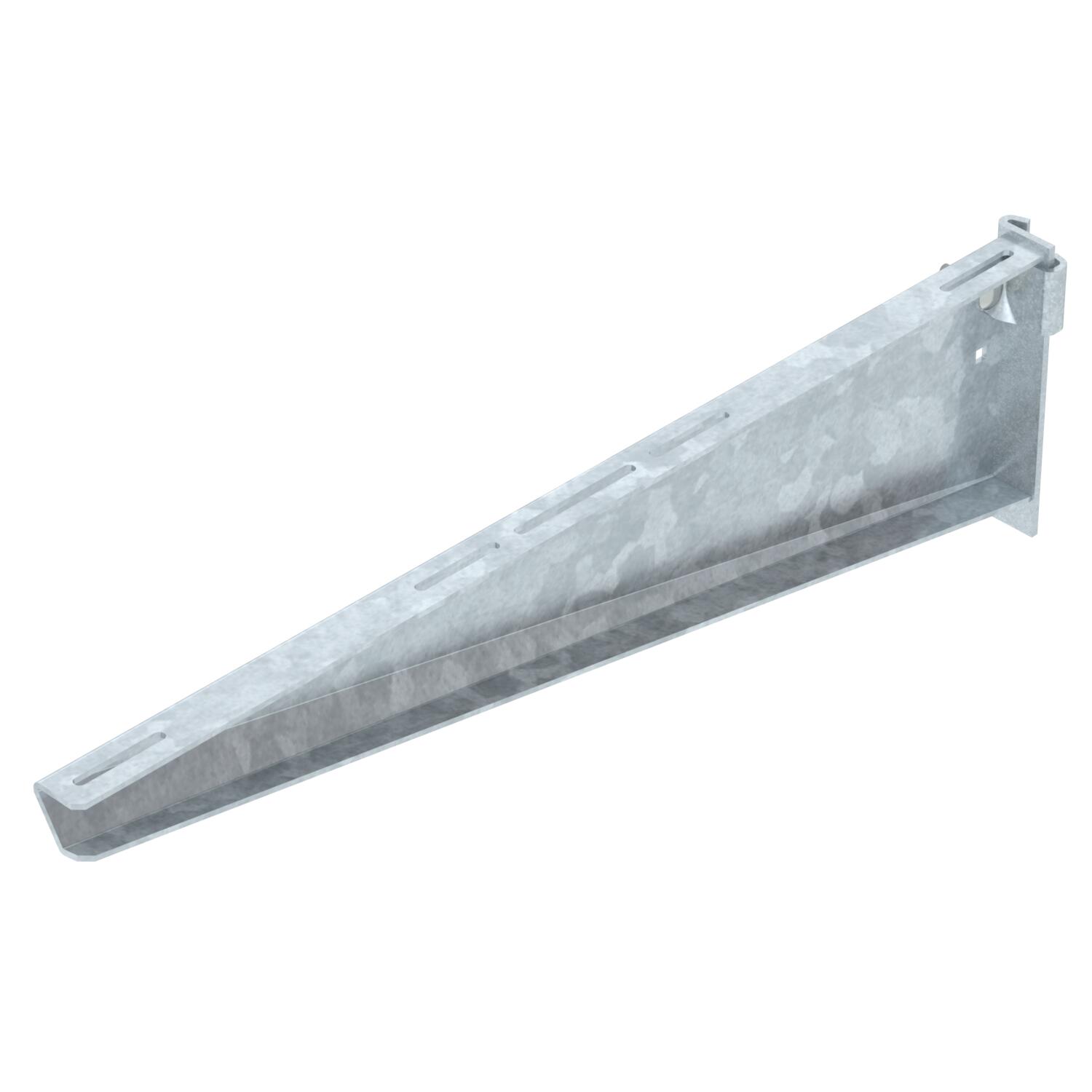

Product graphic AS 55 71 FT / 6419322, 55.50 kB, jpg

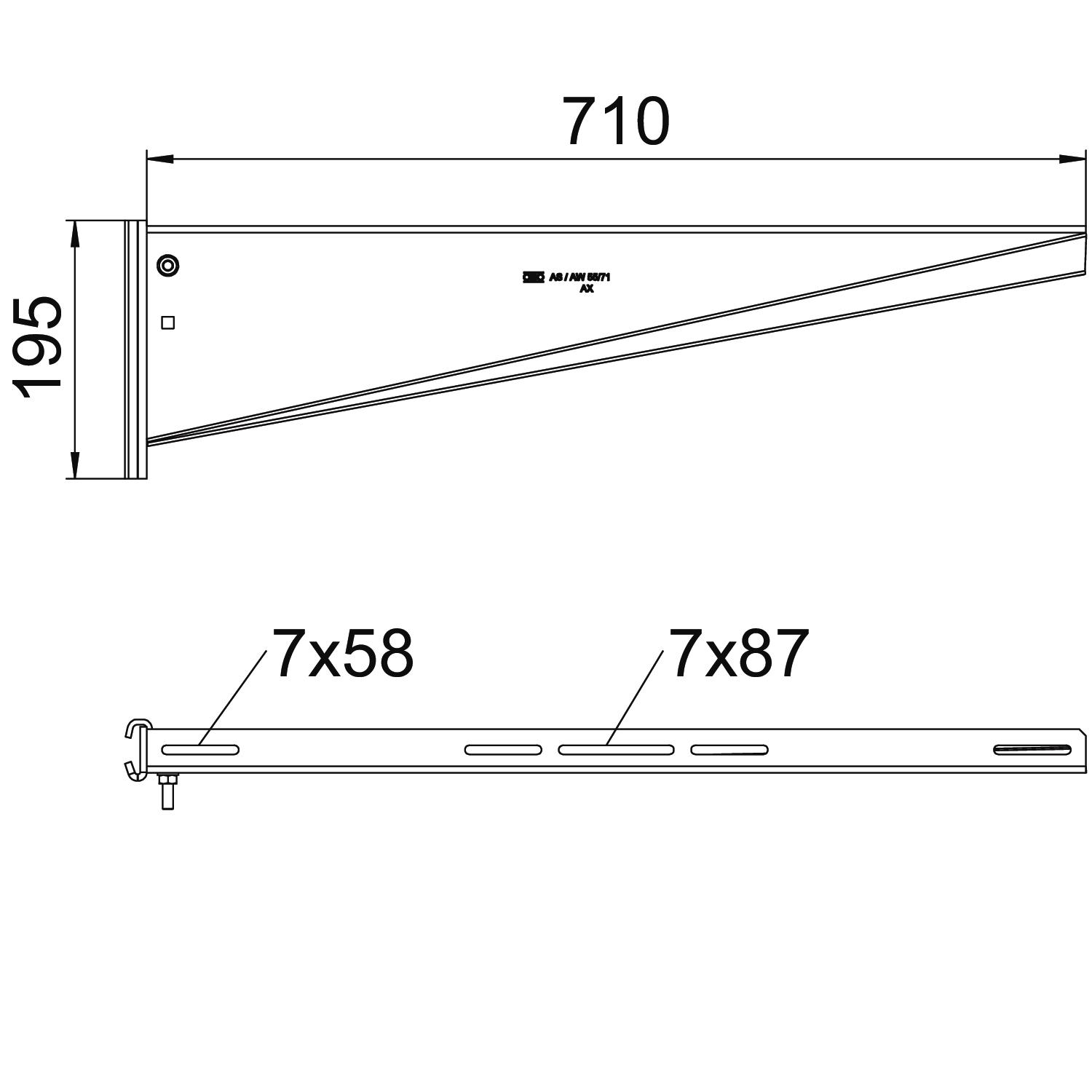

Scale drawing AS 55 71 FT / 6419322, 70.43 kB, jpg

AS 55 71 FT / 6419322

6419322_KSTP1.stp, 741.23 kB

Stielausleger AS 55 71 FT.rfa, 316.00 kB
