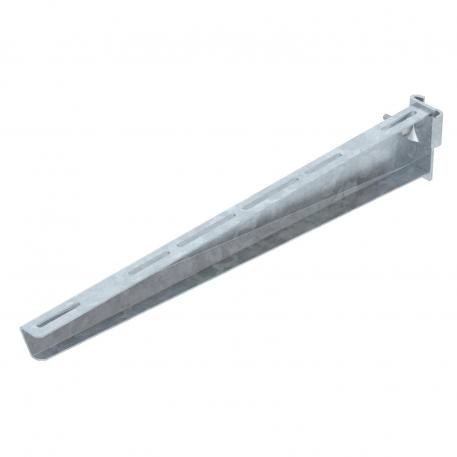

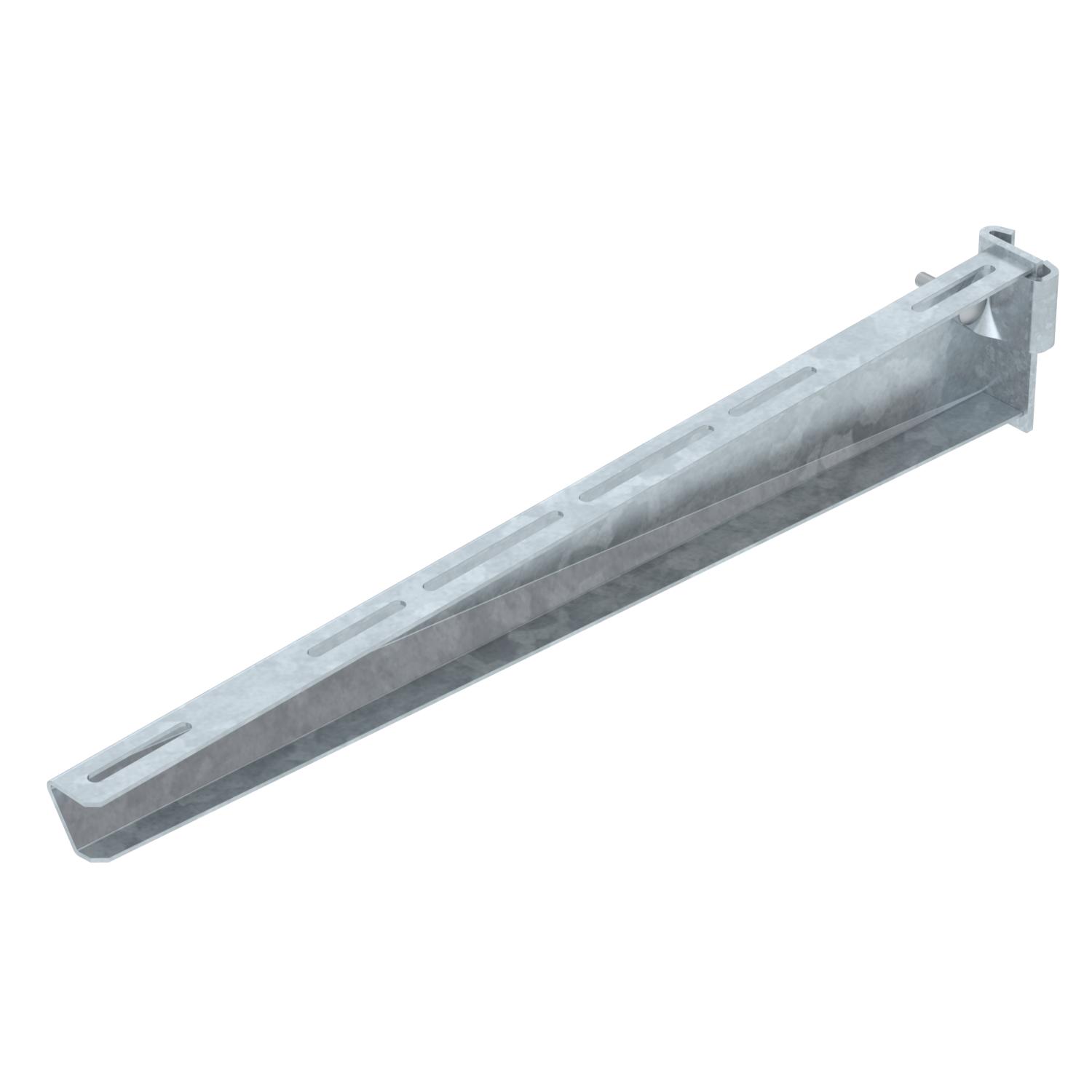

Support bracket AS 30

Item no. 6419412 | EAN 4012195873297

41 mm
3 kN
Product description

Product description

Medium-duty support bracket for infinitely adjustable fastening on IS 8 support.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • I support
Technical data

Technical data

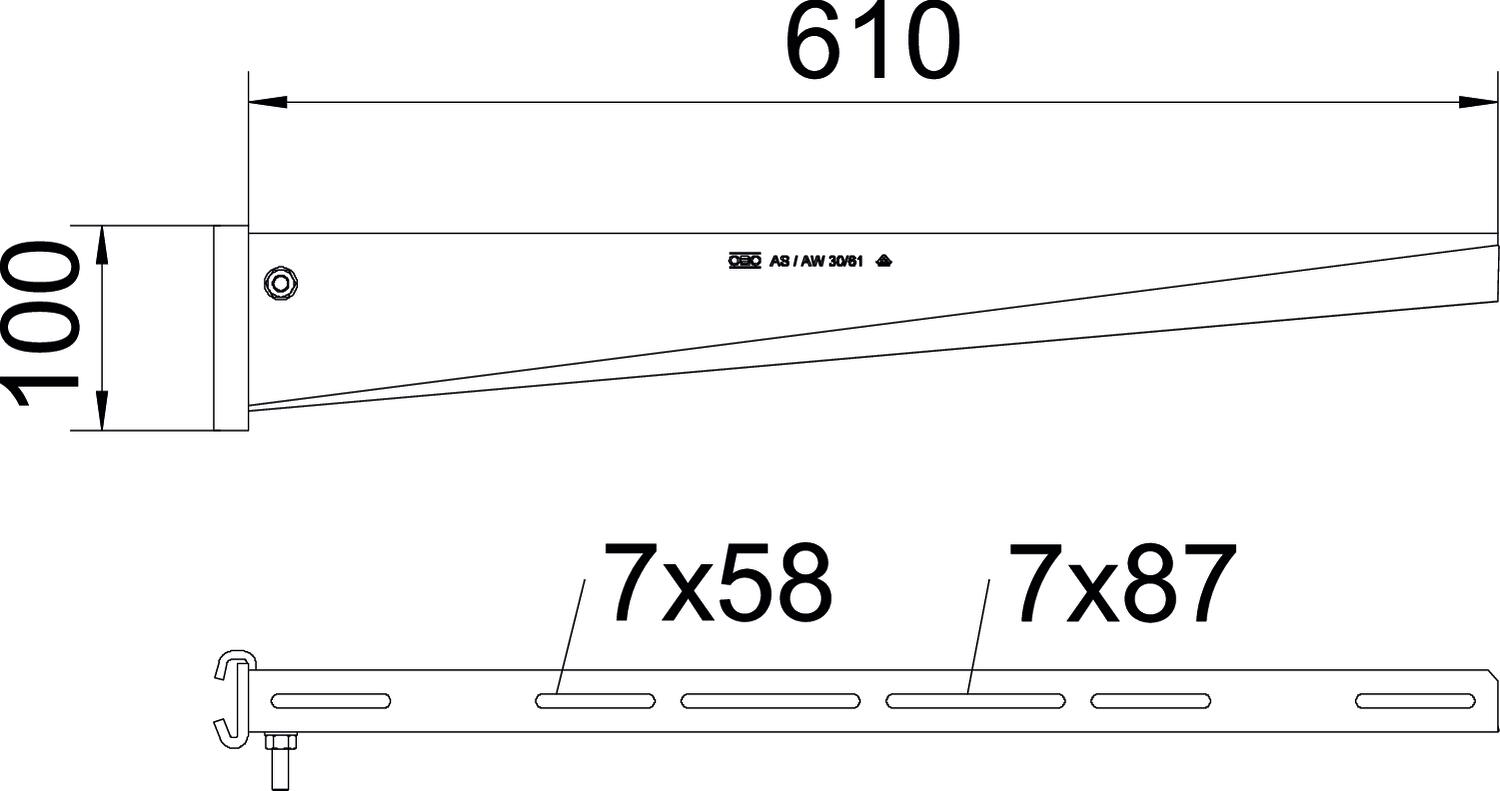

Dimension B610mm
Dimension A 41 mm
Dimension B 610 mm
Dimension H 100 mm
Dimension L 610 mm
F in kN 3 kN
Height 100 mm
Length 41 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Hot-dip galvanised
Version for Support bracket
Width 610 mm

Technical data

Load diagram, bracket type AS 30

Load diagram, bracket type AS 30
  • Bending of the bracket tip at permitted bracket load Bending of the bracket tip at permitted bracket load
  • Permitted bracket load in kN without man load Permitted bracket load in kN without man load
  • Load curve with bracket lengths in mm Load curve with bracket lengths in mm
All types

All types

Types Length Width F in kN Item no. Quantity SSU
AS 30 11 FT 41 mm 110 mm 3 kN 6419370
1 piece
AS 30 16 FT 41 mm 160 mm 3 kN 6419376
1 piece
AS 30 21 FT 41 mm 210 mm 3 kN 6419382
1 piece
AS 30 31 FT 41 mm 310 mm 3 kN 6419388
1 piece
AS 30 41 FT 41 mm 410 mm 3 kN 6419394
1 piece
AS 30 51 FT 41 mm 510 mm 3 kN 6419400
1 piece
AS 30 56 FT 41 mm 560 mm 3 kN 6419406
1 piece
AS 30 61 FT 41 mm 610 mm 3 kN 6419412
1 piece
AS 30 71 FT 41 mm 710 mm 3 kN 6419418
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
Downloads

Download

Download
Download

Declaration of conformity AS 30 61 FT / 6419412 , 0.13MB , pdf
Download
REACH Declaration of conformity AS 30 61 FT / 6419412 , 0.12MB , pdf
Download
RoHS Declaration of conformity AS 30 61 FT / 6419412 , 0.12MB , pdf
Download

Download
Download

Download
Download

AS 30 61 FT / 6419412
