Support bracket AS 30 41 | 410 | 3

morepic-1

morepic-2

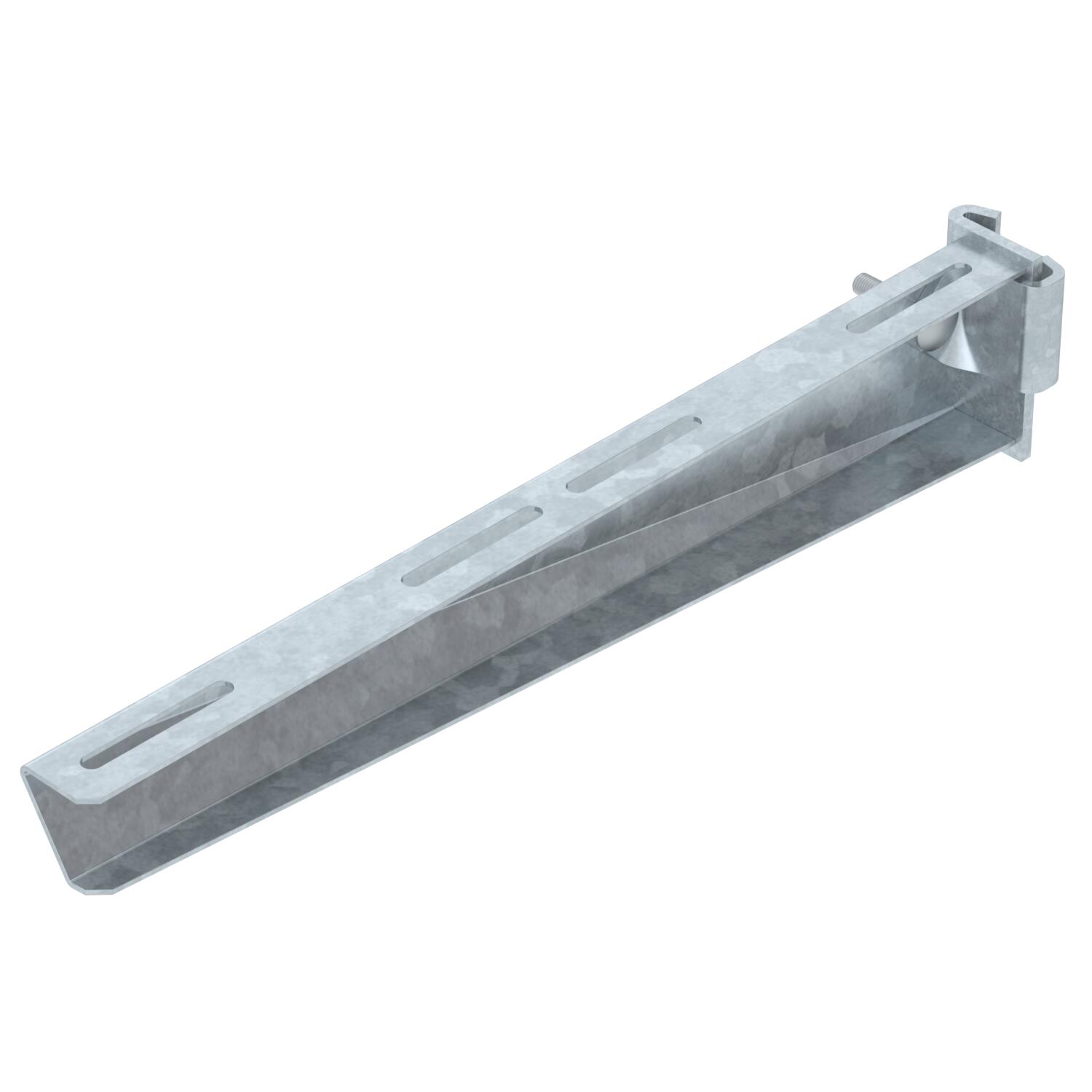

Support bracket AS 30

Item no. 6419394 | EAN 4012195873266

Item no. / Types

Length	41 mm

Width

F in kN	3 kN

Product description

Product description

Medium-duty support bracket for infinitely adjustable fastening on IS 8 support.

Technical data

Technical data

Colour	zinc

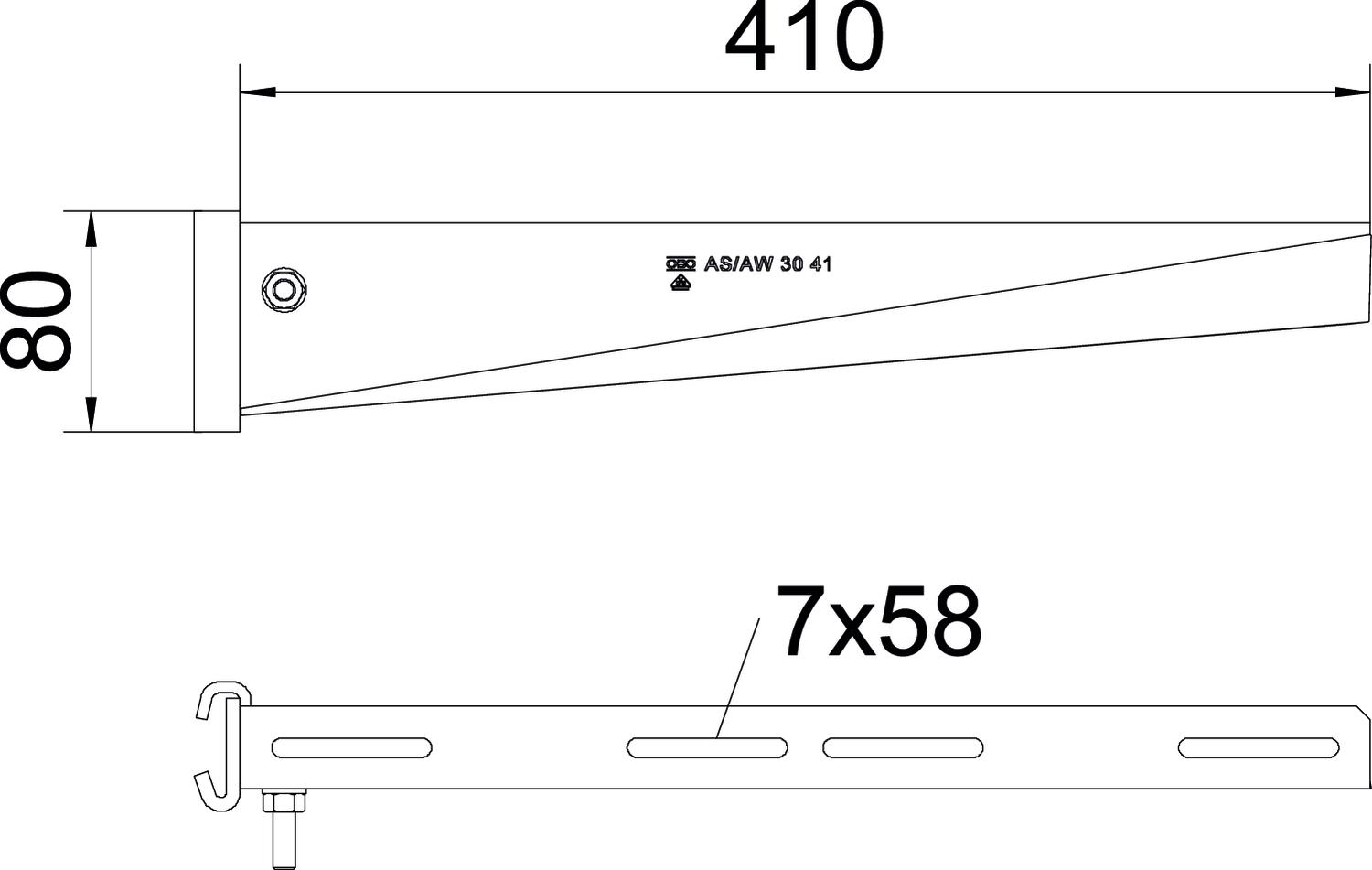

Dimension	B410mm
Dimension A	41 mm
Dimension B	410 mm
Dimension H	80 mm
Dimension L	410 mm
F in kN	3 kN
Height	80 mm

Length	41 mm
Maintain electrical functions	no
Material	Steel
Rustproof steel, pickled	no
Surface	Hot-dip galvanised
Version for	Support bracket
Width	410 mm

Technical data

Load diagram, bracket type AS 30

Load diagram, bracket type AS 30

Bending of the bracket tip at permitted bracket load
Permitted bracket load in kN without man load
Load curve with bracket lengths in mm

All types

All types

Types	Length	Width	F in kN	Item no.	Quantity	SSU
AS 30 11 FT	41 mm	110 mm	3 kN	6419370	piece	1 piece
AS 30 16 FT	41 mm	160 mm	3 kN	6419376	piece	1 piece
AS 30 21 FT	41 mm	210 mm	3 kN	6419382	piece	1 piece
AS 30 31 FT	41 mm	310 mm	3 kN	6419388	piece	1 piece
AS 30 41 FT	41 mm	410 mm	3 kN	6419394	piece	1 piece
AS 30 51 FT	41 mm	510 mm	3 kN	6419400	piece	1 piece
AS 30 56 FT	41 mm	560 mm	3 kN	6419406	piece	1 piece
AS 30 61 FT	41 mm	610 mm	3 kN	6419412	piece	1 piece
AS 30 71 FT	41 mm	710 mm	3 kN	6419418	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Truss-head bolt with flange nut F	FRSB 6x12 F	6406122	piece	100 piece

Downloads

Data sheet AS 30 41 FT / 6419394 , 0.22MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity AS 30 41 FT / 6419394 , 0.13MB , pdf

REACH Declaration of conformity AS 30 41 FT / 6419394 , 0.12MB , pdf

Download

RoHS Declaration of conformity AS 30 41 FT / 6419394 , 0.12MB , pdf

Download

Label approval VDE symbol approval, suspended supports and brackets , 0.12MB , pdf

Download

Environmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdf

Mounting instructions Mounting instructions, I support systems , 0.03MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic AS 30 41 FT / 6419394, 56.16 kB, jpg

Scale drawing AS 30 41 FT / 6419394, 52.43 kB, jpg

AS 30 41 FT / 6419394

6419394_KSTP1.stp, 423.29 kB

Stielausleger AS 30 41 FT_AS 30 41 FTK LGR.rfa, 328.00 kB
