Support bracket AS 15
Item no. 6421466 | EAN 4012196208036
- Product description
-
Product description

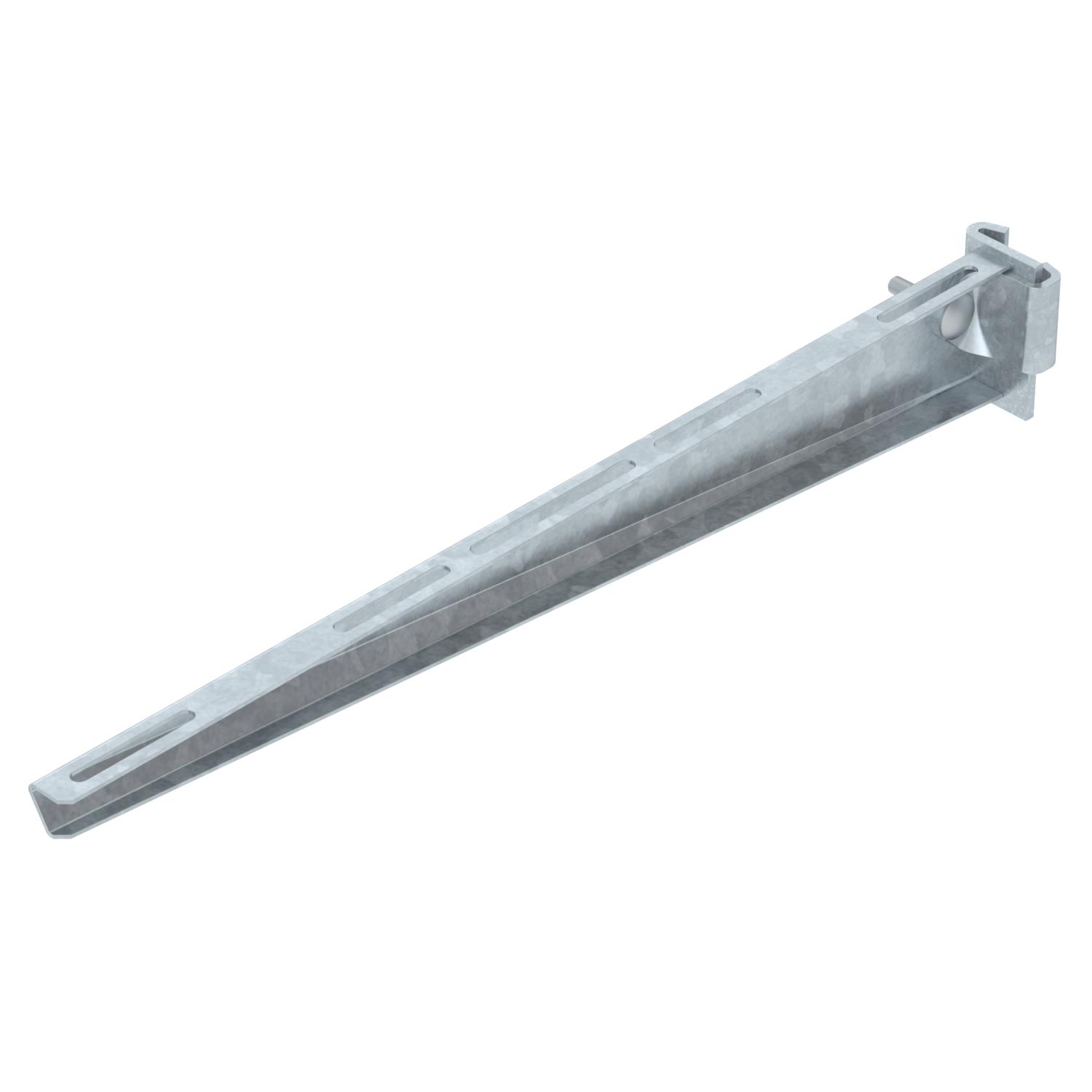

Light-duty support bracket for infinitely adjustable fastening on IS 8 support.
-
- Technical data
-
Technical data

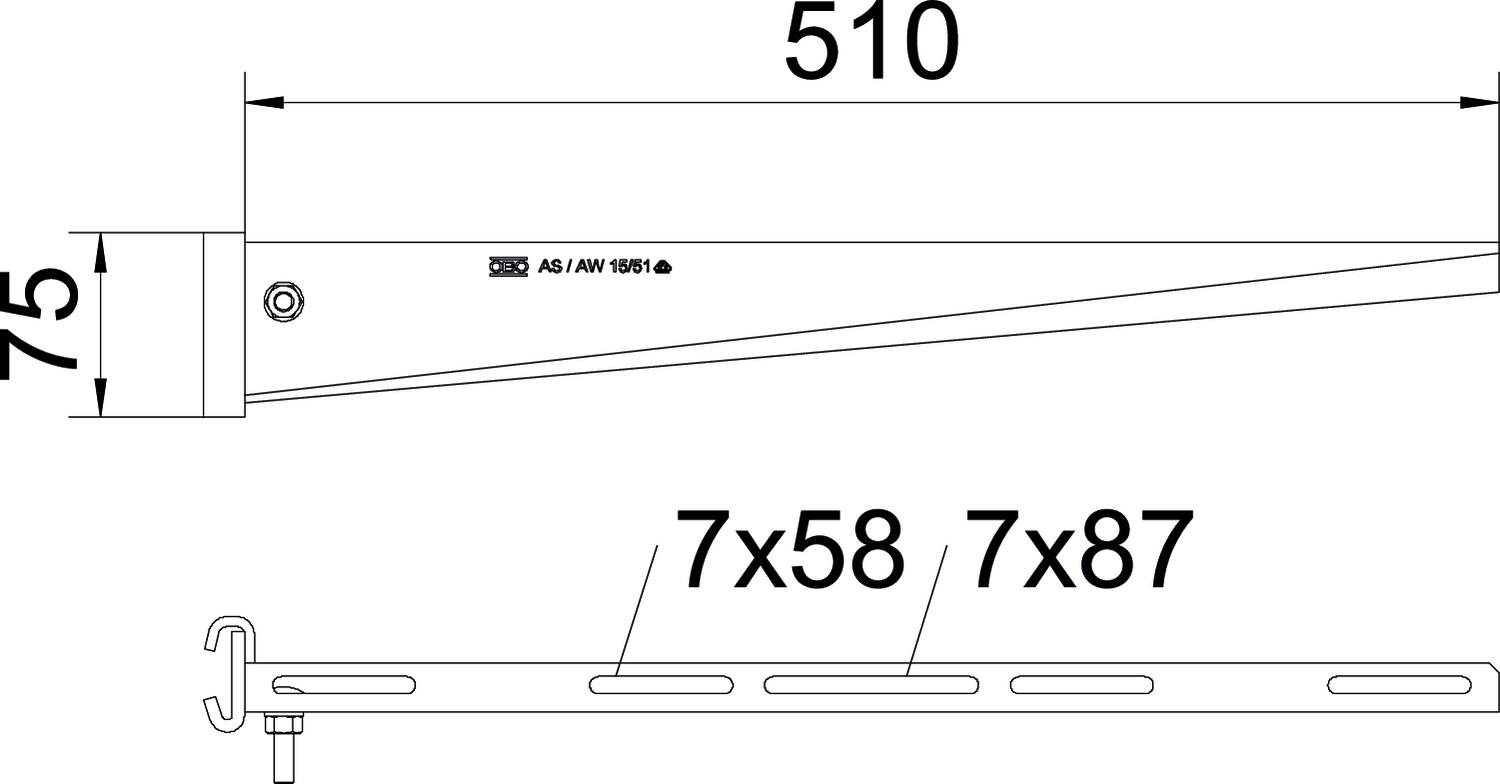

Dimension B510mm Dimension A 41 mm Dimension B 510 mm Dimension H 75 mm Dimension L 510 mm EPD article yes F in kN 1,5 kN Height 75 mm Length 41 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Support bracket Width 510 mm Technical data
Load diagram, bracket type AS 15
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Support width in m
-
Load curve with bracket lengths in mm
-
- All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet AS 15 51 FT / 6421466 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity AS 15 51 FT / 6421466 , 0.13MB , pdfREACH Declaration of conformity AS 15 51 FT / 6421466 , 0.12MB , pdfRoHS Declaration of conformity AS 15 51 FT / 6421466 , 0.12MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Mounting instructions, I support systems , 0.03MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
