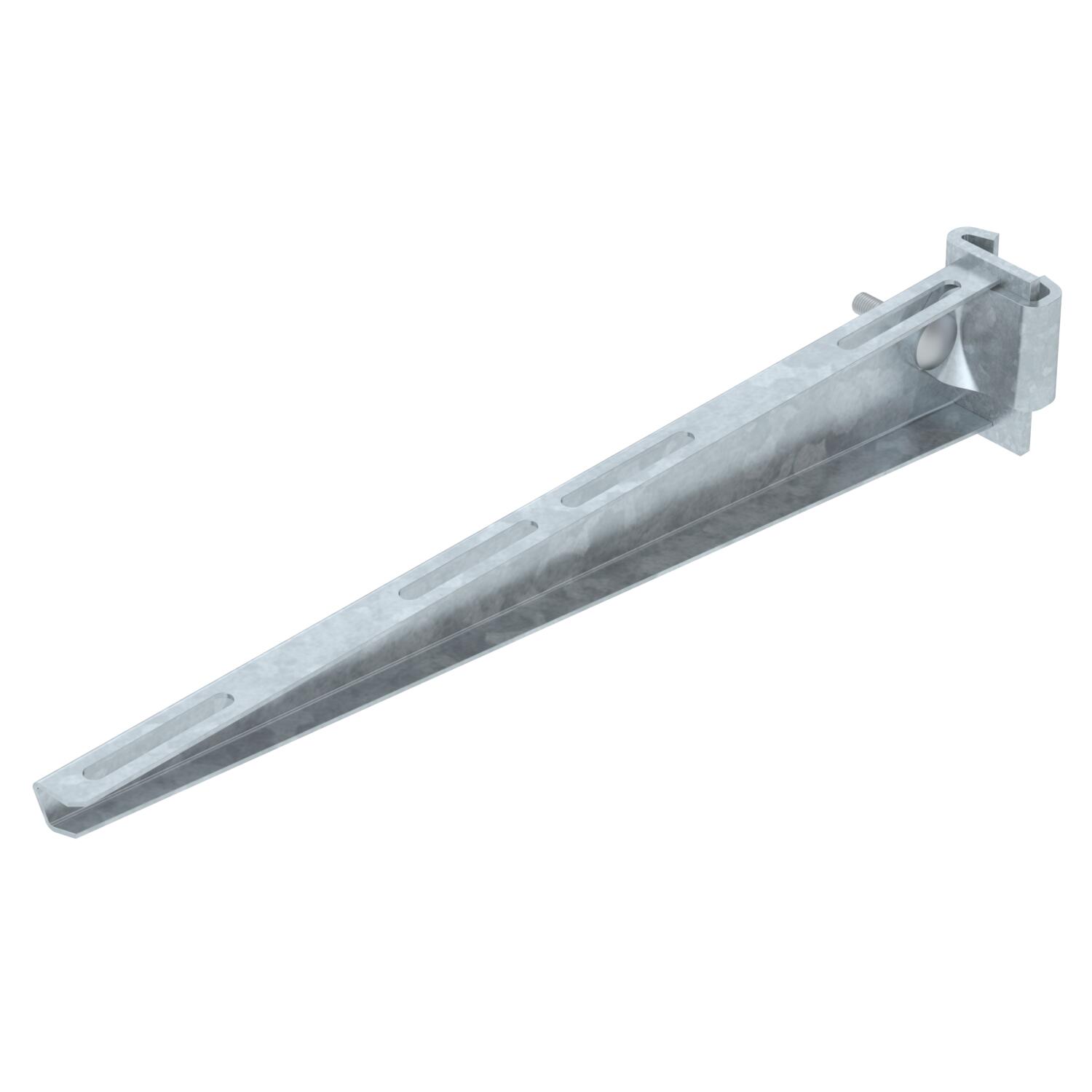

Support bracket AS 15
Item no. 6421423 | EAN 4012196207978
- Product description
-
Product descriptionLight-duty support bracket for infinitely adjustable fastening on IS 8 support.
-
- Technical data
-
Technical data

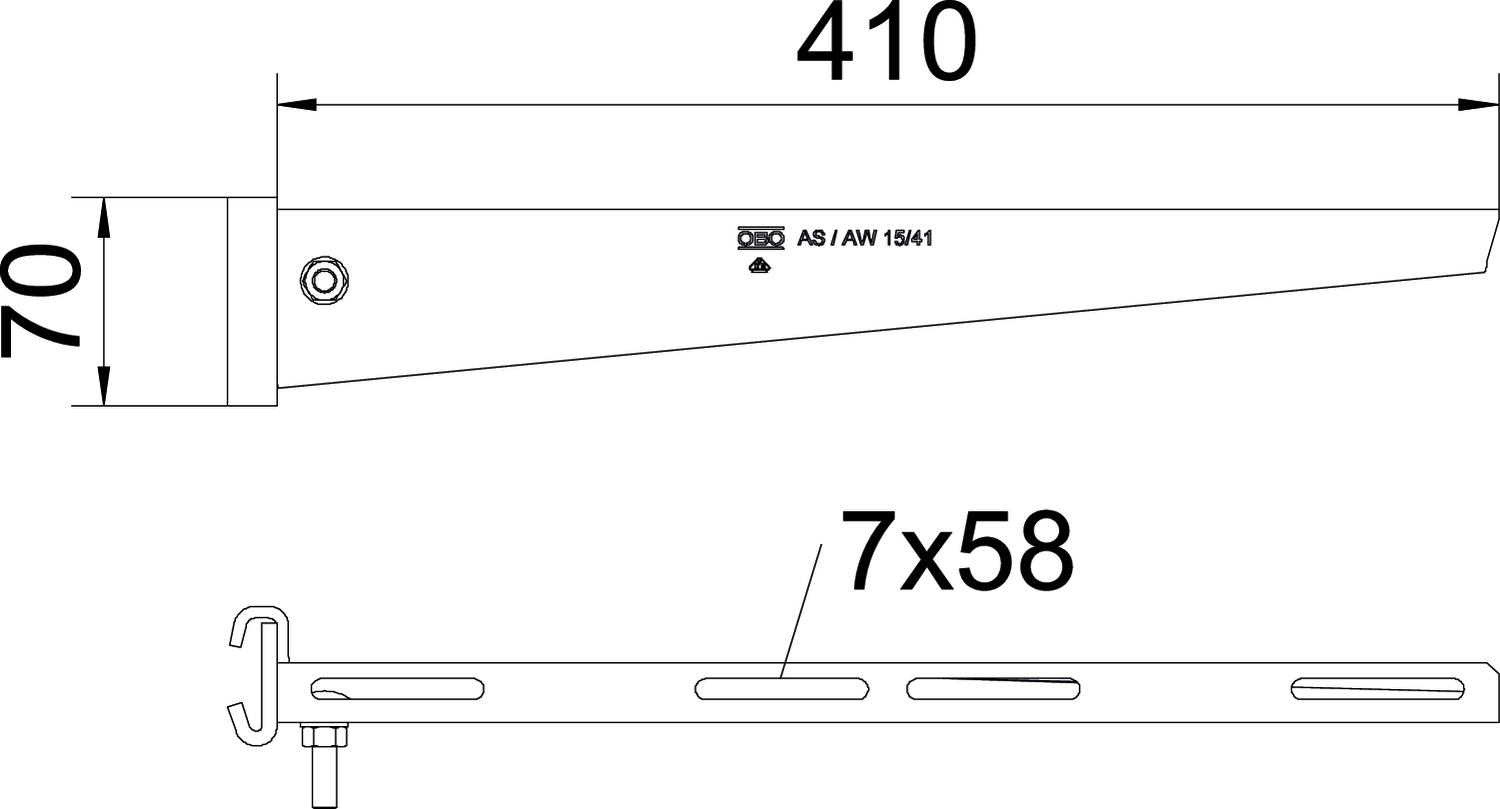

Colour zinc Dimension B410mm Dimension A 41 mm Dimension B 410 mm Dimension H 70 mm Dimension L 410 mm EPD article yes F in kN 1,5 kN Height 70 mm Length 41 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Support bracket Width 410 mm Technical data
Load diagram, bracket type AS 15
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Support width in m
-
Load curve with bracket lengths in mm
-
- All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
