Strain relief on three sides, with mineral wool, internal height 175 mm
Item no. 7215726 | EAN 4012195958932
- Product description
-
Product descriptionStrain relief as an effective support measure for vertical cable routing, according to DIN 4102 Part 12, approved for all cable types and all vertical routing systems. Maintenance of electrical function classes E30 to E90. Housing including mineral fibre panels, fastening material, ASX fire protection coating in cartridge and identification plate.
- Technical data
-
Technical data

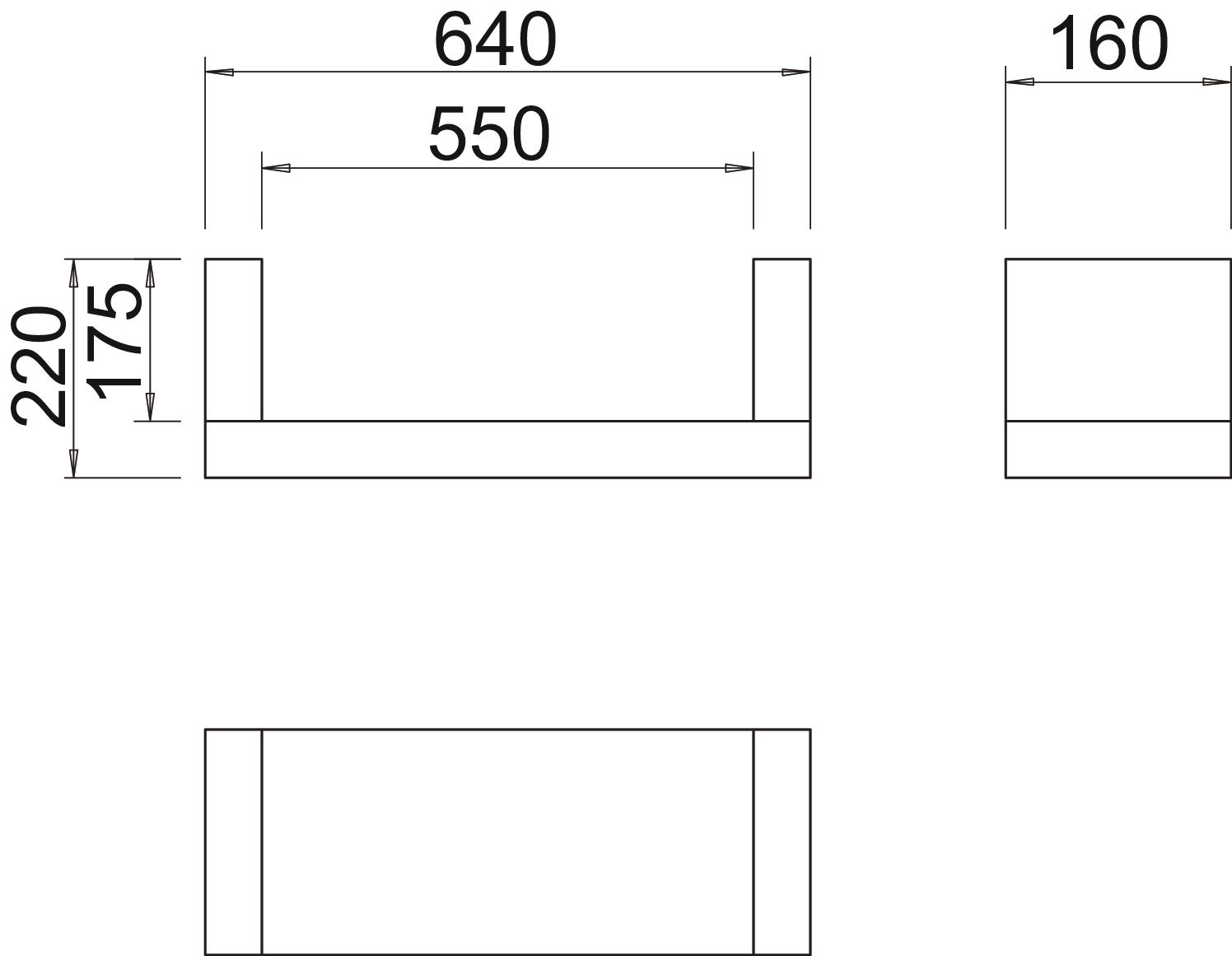

Accessories required no Colour Cream; RAL 9001 Dimension 640x220x160 Dimension B 640 mm Dimension b 550 mm Dimension H 160 mm Dimension t 175 mm Dimension t 220 mm Fire protection version Soft insulation Height 220 mm Length 160 mm Material Calcium silicate Shape Rectangular Thickness 45 mm Width 640 mm - All types
-
All types
-
System accessories
Products Types Item no. Quantity SSU
Ablation coating PYROCOAT® in a cartridge
ASX-K 7202310 1 piece
Identification plate for strain relief
KS-ZSE DE 7215750 1 piece - Downloads
-
Data sheet ZSE90-55-17 / 7215726 , 0.19MB , pdfBrochure Brochure The Experts , 2.10MB , pdfREACH Declaration of conformity ZSE90-55-17 / 7215726 , 0.12MB , pdfRoHS Declaration of conformity ZSE90-55-17 / 7215726 , 0.12MB , pdfMounting instructions Mounting instructions, ZSE90 strain relief , 0.07MB , pdf
