Strain relief on three sides, with mineral wool, internal height 175 mm

Item no. 7215719 | EAN 4012195958925

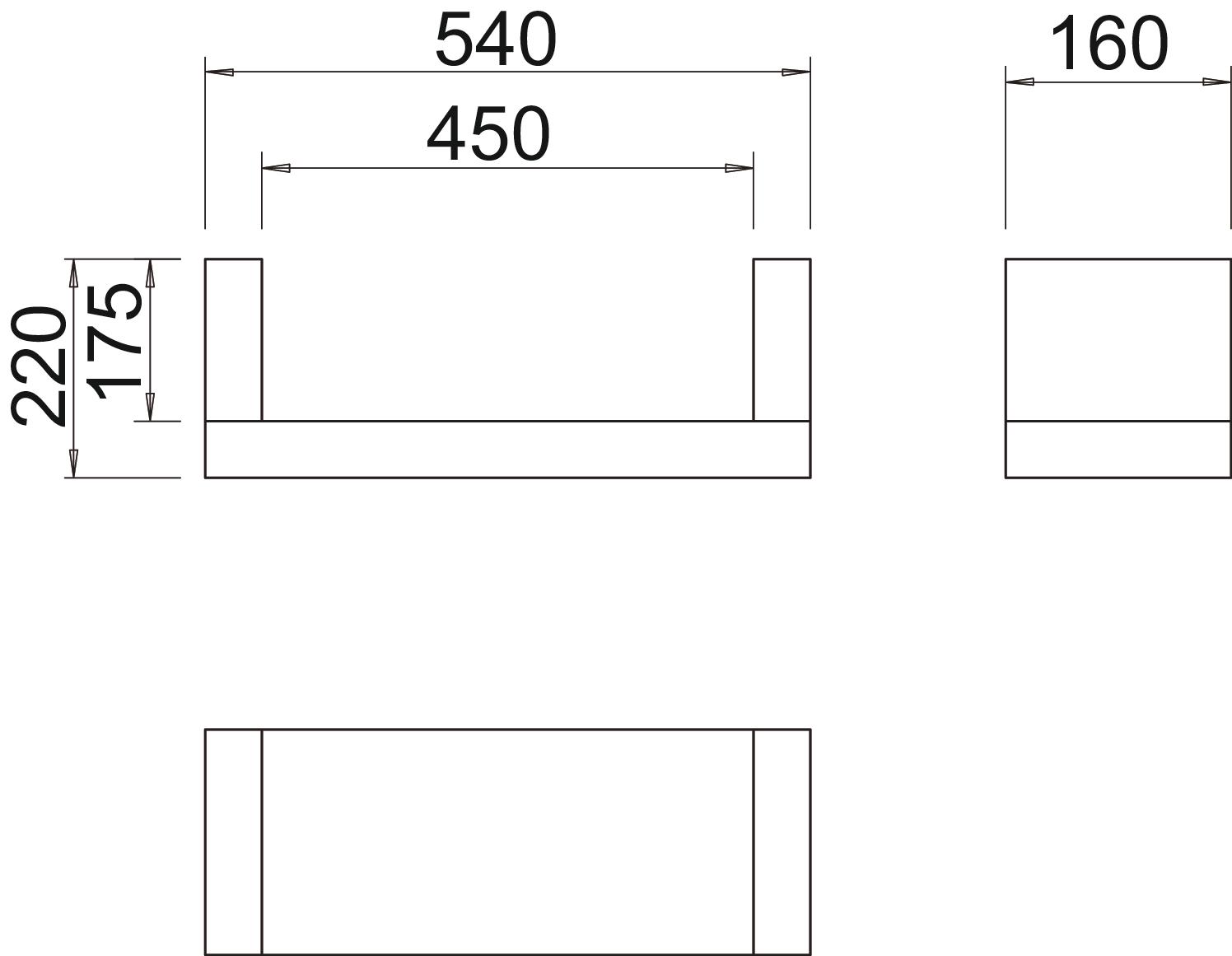

160 mm
220 mm
175 mm
Product description
Product description
Strain relief as an effective support measure for vertical cable routing, according to DIN 4102 Part 12, approved for all cable types and all vertical routing systems. Maintenance of electrical function classes E30 to E90. Housing including mineral fibre panels, fastening material,  ASX fire protection coating in cartridge and identification plate.
Technical data

Technical data

Accessories required no
Colour Cream; RAL 9001
Dimension 540x220x160
Dimension B 540 mm
Dimension b 450 mm
Dimension H 160 mm
Dimension t 220 mm
Dimension t 175 mm
Fire protection version Soft insulation
Height 220 mm
Length 160 mm
Material Calcium silicate
Shape Rectangular
Thickness 45 mm
Width 540 mm
All types

All types

Types Dimension B Dimension b Dimension H Dimension t Dimension t Item no. Quantity SSU
ZSE90-25-17 340 mm 250 mm 160 mm 220 mm 175 mm 7215713
1 piece
ZSE90-35-17 440 mm 350 mm 160 mm 220 mm 175 mm 7215716
1 piece
ZSE90-45-17 540 mm 450 mm 160 mm 220 mm 175 mm 7215719
1 piece
ZSE90-55-17 640 mm 550 mm 160 mm 220 mm 175 mm 7215726
1 piece
ZSE90-65-17 740 mm 650 mm 160 mm 220 mm 175 mm 7215730
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Ablation coating PYROCOAT® in a cartridge Ablation coating PYROCOAT® in a cartridge ASX-K 7202310
1 piece
Identification plate for strain relief Identification plate for strain relief KS-ZSE DE 7215750
1 piece
